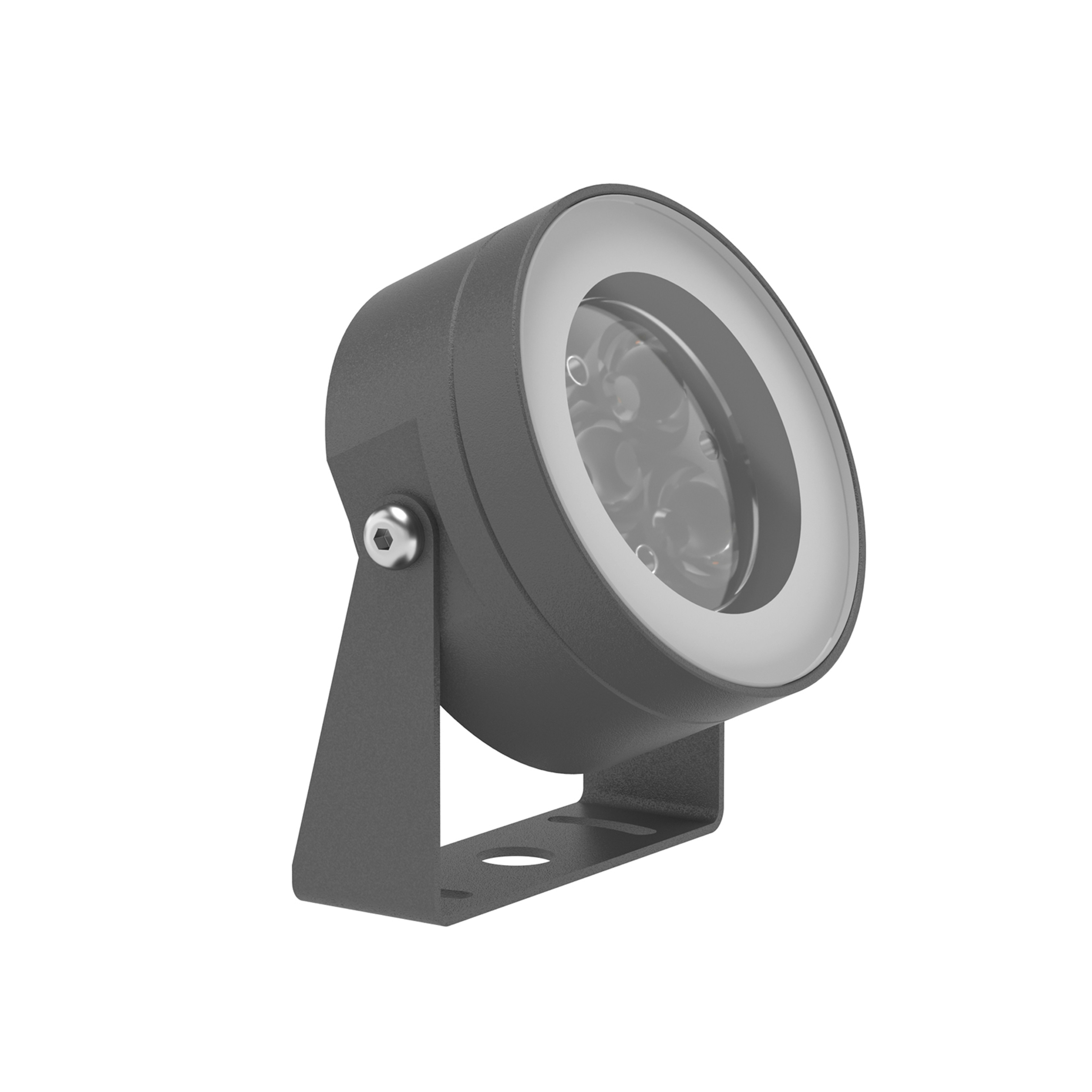

AimerAimer 3 Constant Voltage
Designed by FLOS Outdoor, 2011
LED source included. Remote electrical power supply 24V dc ON/OFF to be ordered separately. Parallel connection. Equipped with a 2000 mm protruding section of neoprene cable and a kit with crimpable connectors and adhesive heat-shrinkable sleeves that guarantee the tightness of the connection. Fixing bracket included. Extraclear transparent glass. The metal nail for ground installation needs to be ordered separately.
3W - 371lm - 4000K - CRI> 80 - Beam° 50
Technical Drawing
Main specifications
EAN
8054793608013
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
3
System power (W)
4.5
Source flux (lm)
484
Lumen Output (lm)
371
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
50
Beam angle C90-270 (º)
50
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
24
Power supply
Dimmable
Power supply type
Dimming interface
Emergency
No
Physical
Colour
Orientation
Longitudinal tilting (°)
185
Net weight (kg)
0.65
Package height (mm)
75
Package width (mm)
145
Package length (mm)
235
IP internal
IP external
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
