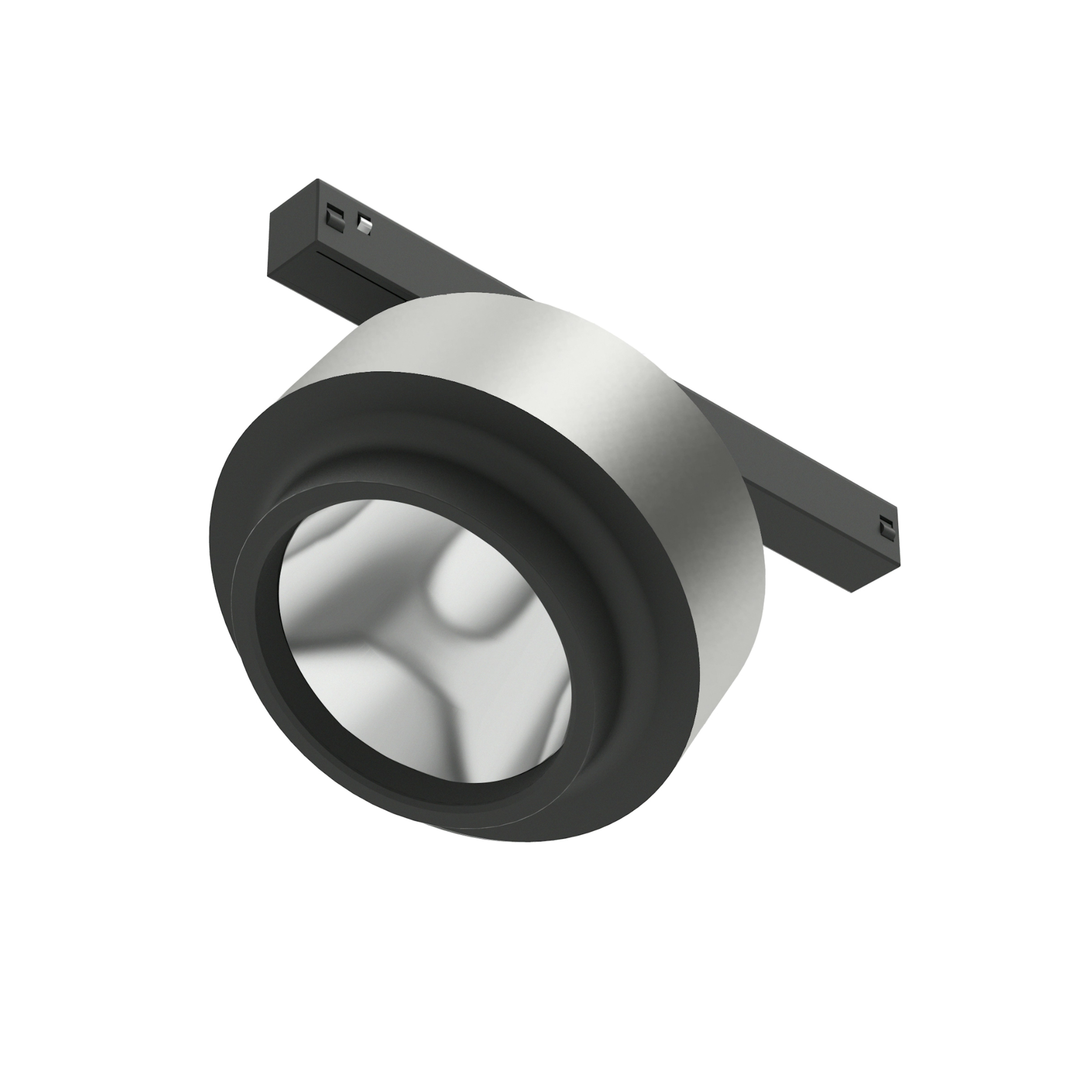

The Tracking MagnetAnthony Spot Track Casambi integrated
Designed by Antonio Citterio, 2020
Accent lighting LED module to be installed in The Tracking Magnet System. To obtain flood optics (35º) order Anthony Spot Medium + flood lens.
LED - LED array - 16.5W - 1241lm - 2700K - CRI> 90 - Beam° 15
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
16.5
System power (W)
17.6
Source flux (lm)
1620
Lumen Output (lm)
1241
Efficacy (lm/W)
70.51
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
2
LED Life / Failure Ratio
L80B50 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
15
Beam angle C90-270 (º)
15
UGRL
<16
Electrical
Insulation class
Forward voltage (V)
48
LED current (mA)
450
Power supply
Dimmable
Power supply type
Dimming range (%)
20-100
Dimming interface
Emergency
No
Physical
Colour
Trim
No
Orientation
Rotation (º)
360
Longitudinal tilting (°)
90
Spot diameter (mm)
110
Length (mm)
178
Net weight (kg)
0.43
IP internal
IP external
Notes
The control system with the Casambi version of light fixtures is directly and individually regulated wirelessly using the application FLOS Control® by Casambi.
