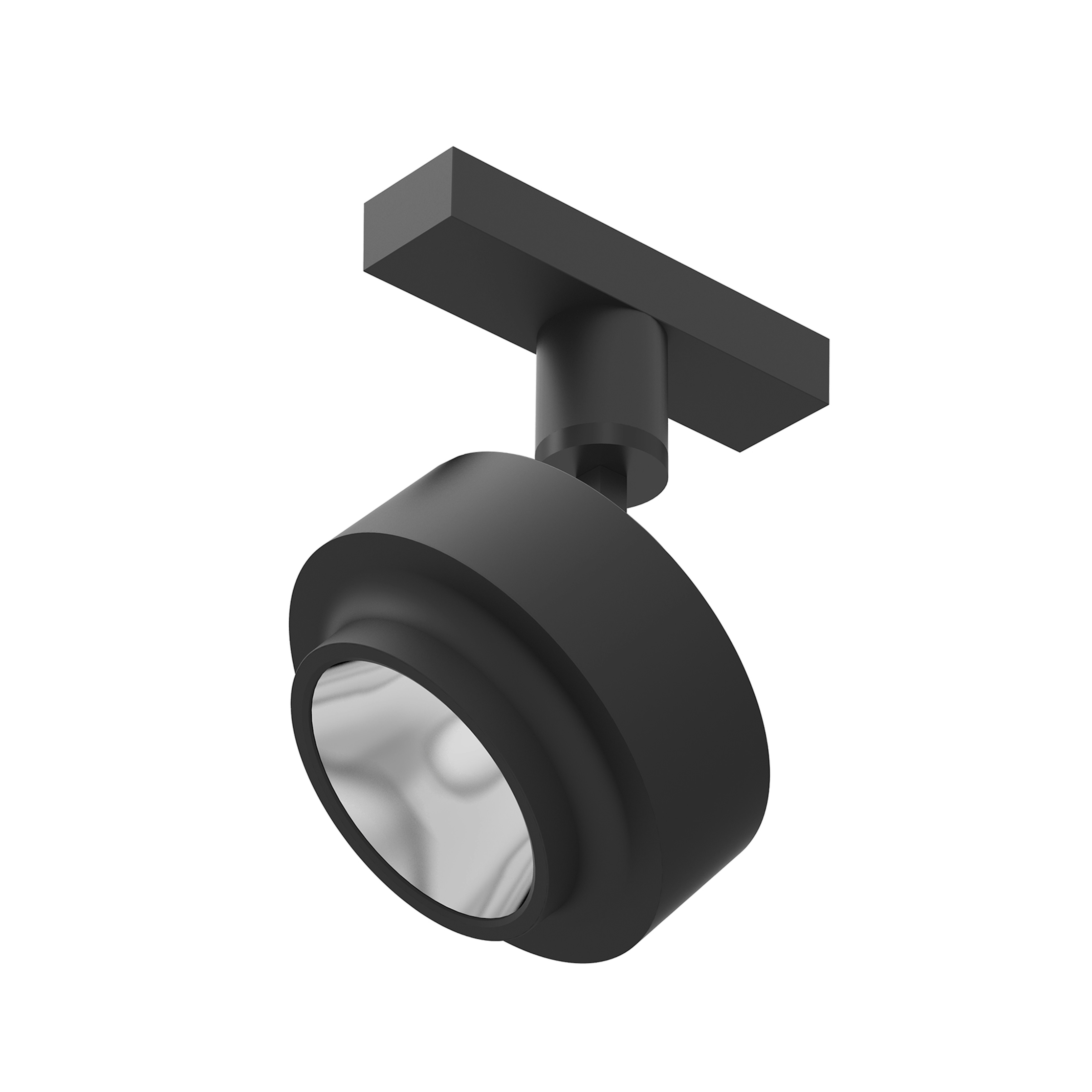

The Running MagnetAnthony Spot Track Dali Version
Designed by Antonio Citterio, 2017
Accent lighting LED module to be installed in The Running Magnet System. Built-in DC/DC electronic voltage converter.
14W - 1060lm - 3000K - CRI> 90 - Beam° 15
Also available in:
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
14
Source flux (lm)
1308
Lumen Output (lm)
1060
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
15
UGRL
<10
Electrical
Insulation class
Forward voltage (V)
24
LED current (mA)
900
Power supply
Dimmable
Power supply type
Dimming interface
Physical
Colour
Net weight (kg)
0.5
IP internal
Notes
To obtain flood optics (35°) order Anthony Spot Medium + flood lens. For wireless lighting control, choose integrated Casambi versions.
