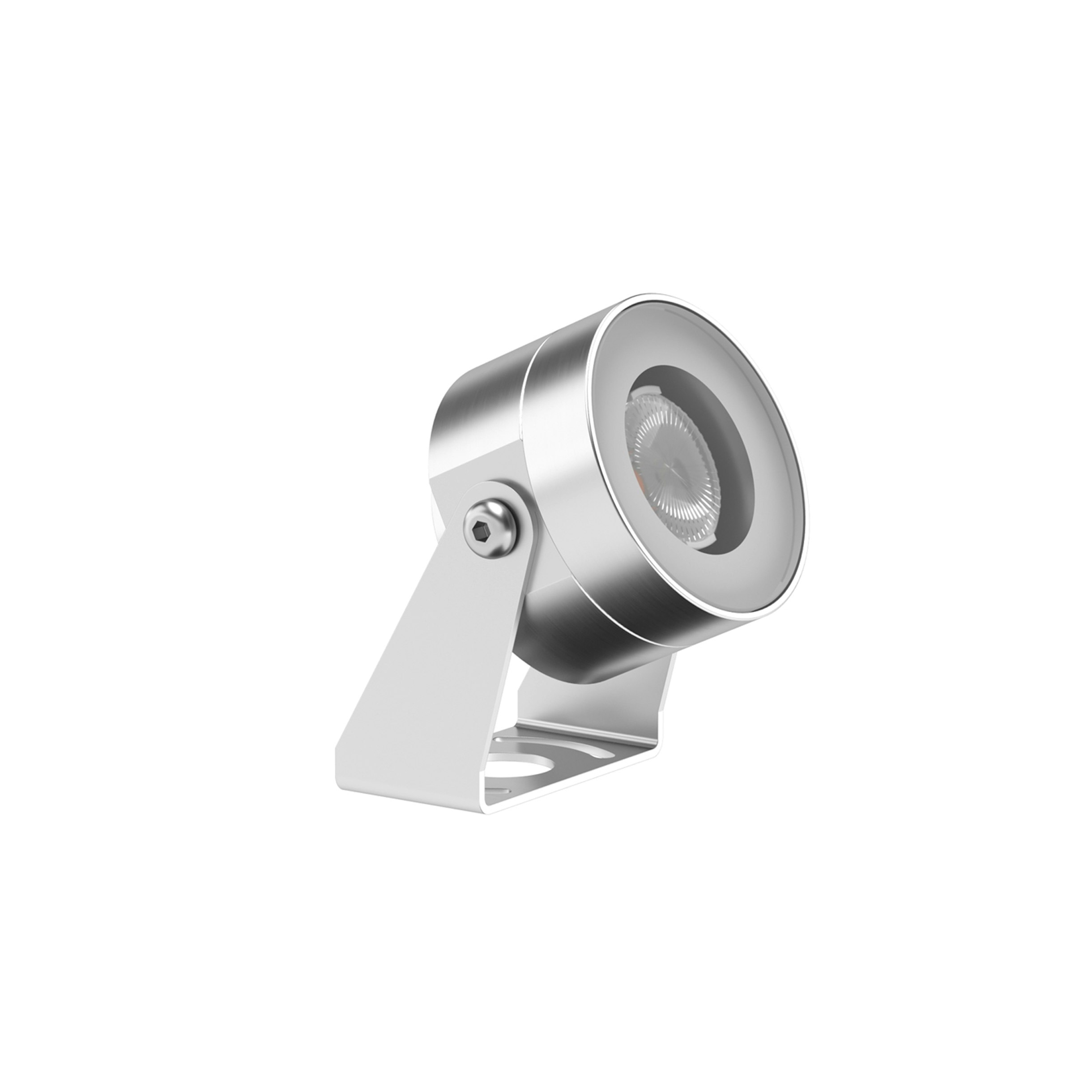

Thumbnail
Related to
Outdoor Aimer
FA10517114357.A Polished Stainless Steel

Aqua Aimer 1

LED source. 316L stainless steel body and bracket, suitable for submersion. Remote power supply 350 mA ON/OFF and dimmable 1-10V or DALI. Must be ordered separately. Serial connection. Equipped with a 5000 mm protruding section of neoprene cable and a kit with crimpable connectors and adhesive heat-shrinkable sleeves that guarantee the tightness of the connection. Extraclear transparent glass. The metal nail for ground installation needs to be ordered separately. 2700K and 3000K models available upon request.

1W - 103lm - 4000K - CRI> 80 - Beam° 46

Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8054793607948
Mounting
Ground
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
1
System power (W)
1.1
Source flux (lm)
124
System flux (lm)
103
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
4000
CRI>
80
Beam angle C0-180 (º)
46
Beam angle C90-270 (º)
46
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Driver
Remote excluded
Dimmable
Yes
Dimming type
Non Dimmable, Dimmable 1-10V, Dimmable DALI 1
Dimming interface
Remote Dimmable (Dimmer Not Included)
Emergency type
No
Physical
Colour
Polished Stainless Steel
Orientation
Directional
Net weight (kg)
0.4
Package height (cm)
90
Package width (cm)
140
Package length (cm)
140
IP
68
IP external
66
CE
IECEE-CB
EAC
UKCA
USA
66
66
IK05 - 0.70 Joule
IK05 - 0.70 Joule
68
Notes

Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance

Download

Tech spec pdf
pdf

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional
