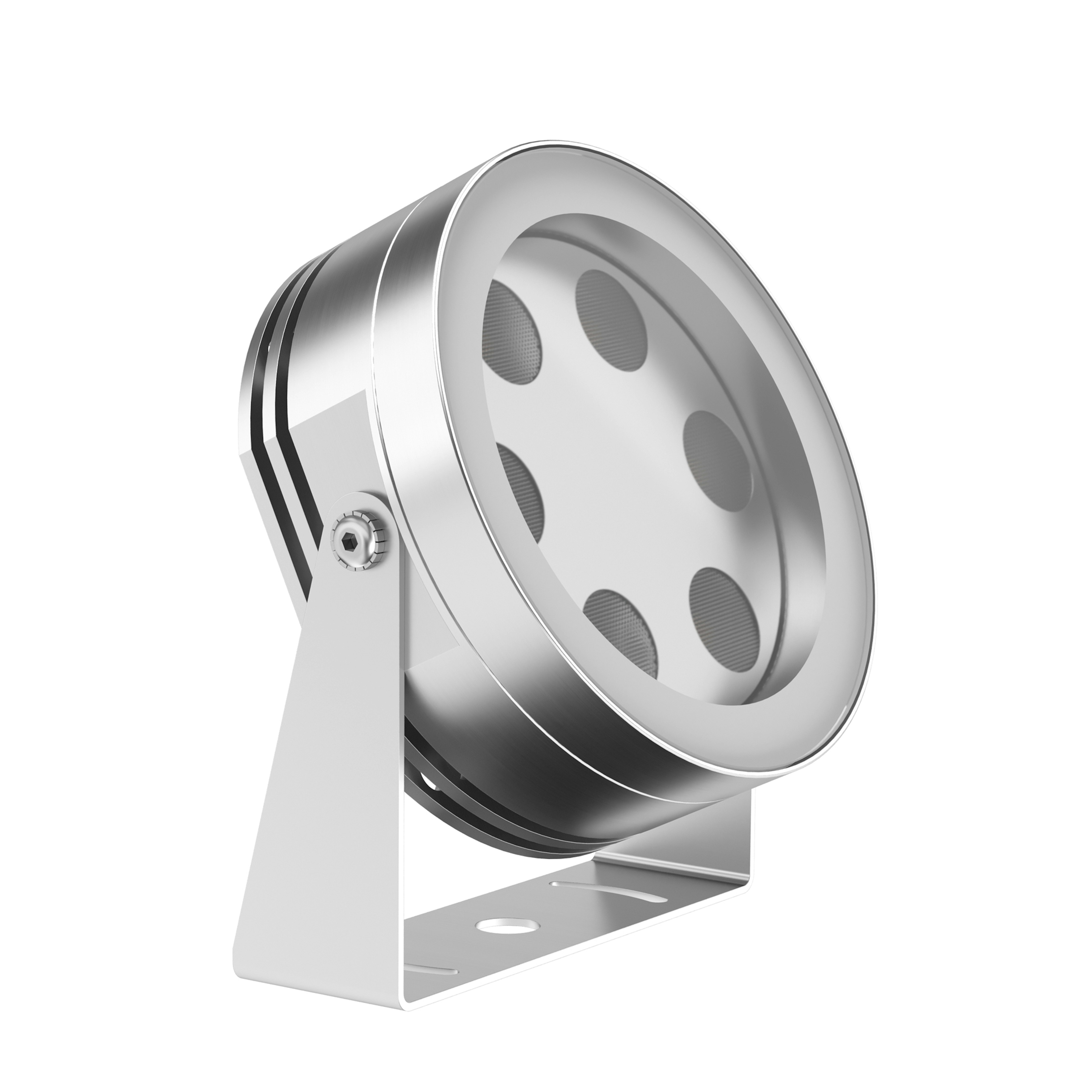

AimerAqua Aimer 4
Designed by FLOS Outdoor, 2011
LED source included. 316L stainless steel body and bracket, suitable for submersion. Remote electrical power supply 24V dc ON/OFF to be ordered separately. Parallel connection. Equipped with a 5000 mm protruding section of neoprene cable and a kit with crimpable connectors and adhesive heat-shrinkable sleeves that guarantee the tightness of the connection. Fixing bracket included. Extraclear transparent glass. The metal nail for ground installation needs to be ordered separately. 2700K and 3000K models available upon request.
8W - 409lm - 3000K - CRI> 80 - Beam° 30
Technical Drawing
Main specifications
EAN
8054793611402
Mounting
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
8
System power (W)
8
Source flux (lm)
646
Lumen Output (lm)
409
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
30
Beam angle C90-270 (º)
30
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
24
Power supply
Dimmable
Power supply type
Dimming interface
Emergency
No
Physical
Colour
Orientation
Net weight (kg)
2.7
Package height (mm)
150
Package width (mm)
180
Package length (mm)
135
IP internal
IP external
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
