Ariette
F0500009

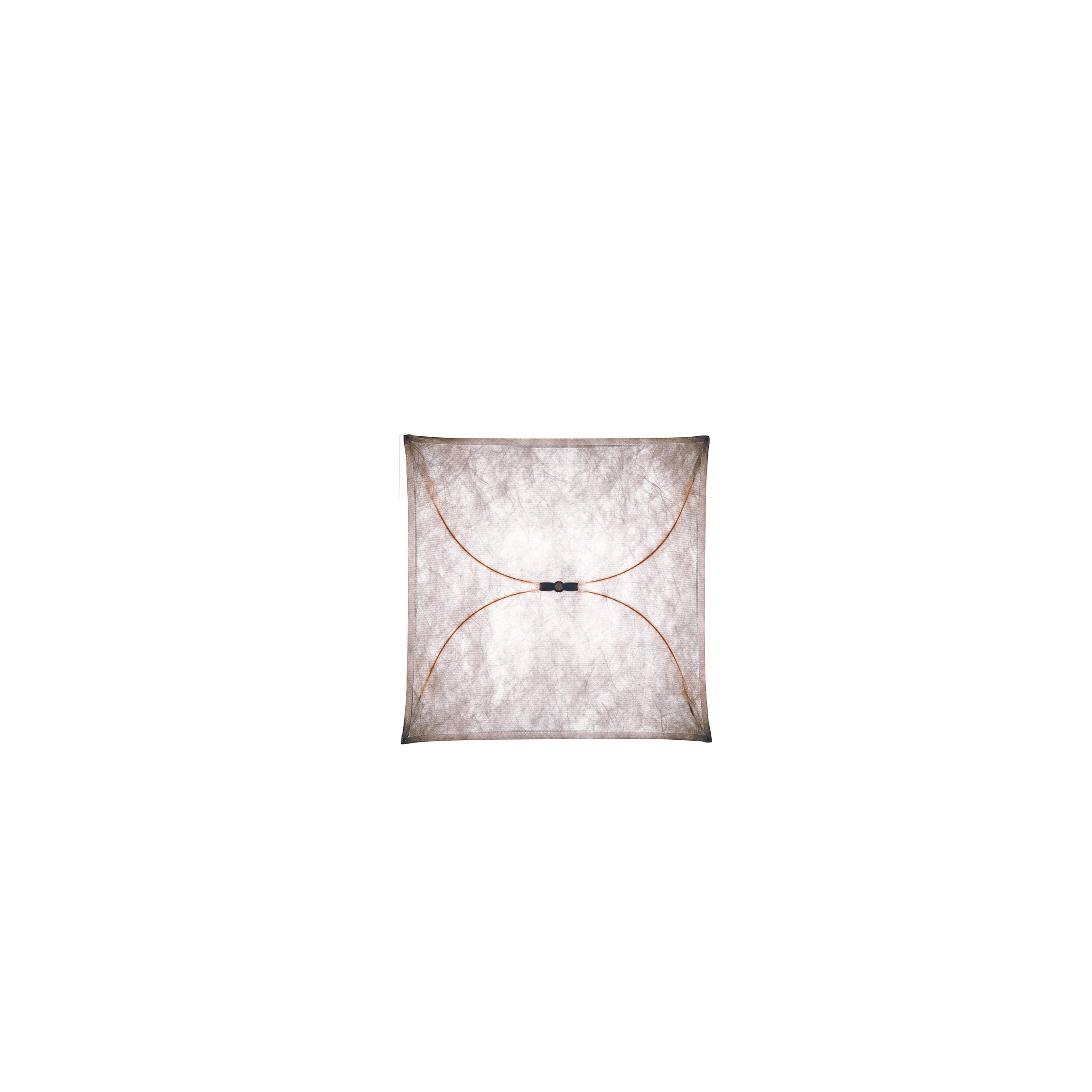

Ariette 2

Wall- or ceiling-mounted lamp emitting diffused light. Features a synthetic fabric diffuser and a 30% fibreglass-reinforced polyamide wall and ceiling fitting.

Halogen - 4 x 40W

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Ceiling-Ariette-2
Main specifications
EAN
8059607014226
Mounting
,
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGSA
Number of lamps
4
Power (W)
40
Schematic light drawing
F0500009WARIETTE-2_4X40W-HL
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
1000
Net weight (kg)
0.95
Package height (mm)
100
Package width (mm)
690
Package length (mm)
200
Package volume (m3)
0.01
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Bulbs

Thumbnail
x4
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 2700K A70RF32563
Thumbnail
x4
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 3000K A70RF32564

Spare Parts

F0500009-ariette2-flos-boom
01. Ariette 2 front & rear cloths. 100x100cm
RF06111
02. Ariette 1/2/3 fork push rod
RF0400100
03. Ariette 1/2/3 Lamp holder assembly
RF04635
04. Ariette 1/2/3 Rod nylon support/6 Ariette 1
RF05737
05. Ariette 2 fiberglass rod d.6 mm 6x670
RF05757
06. Ariette 1/2/3 Nylon wall attachment
RF05740
07. Ariette 1/2/3 Kit with grub screw & screws for rod support
RF0400200
Thumbnail
x1

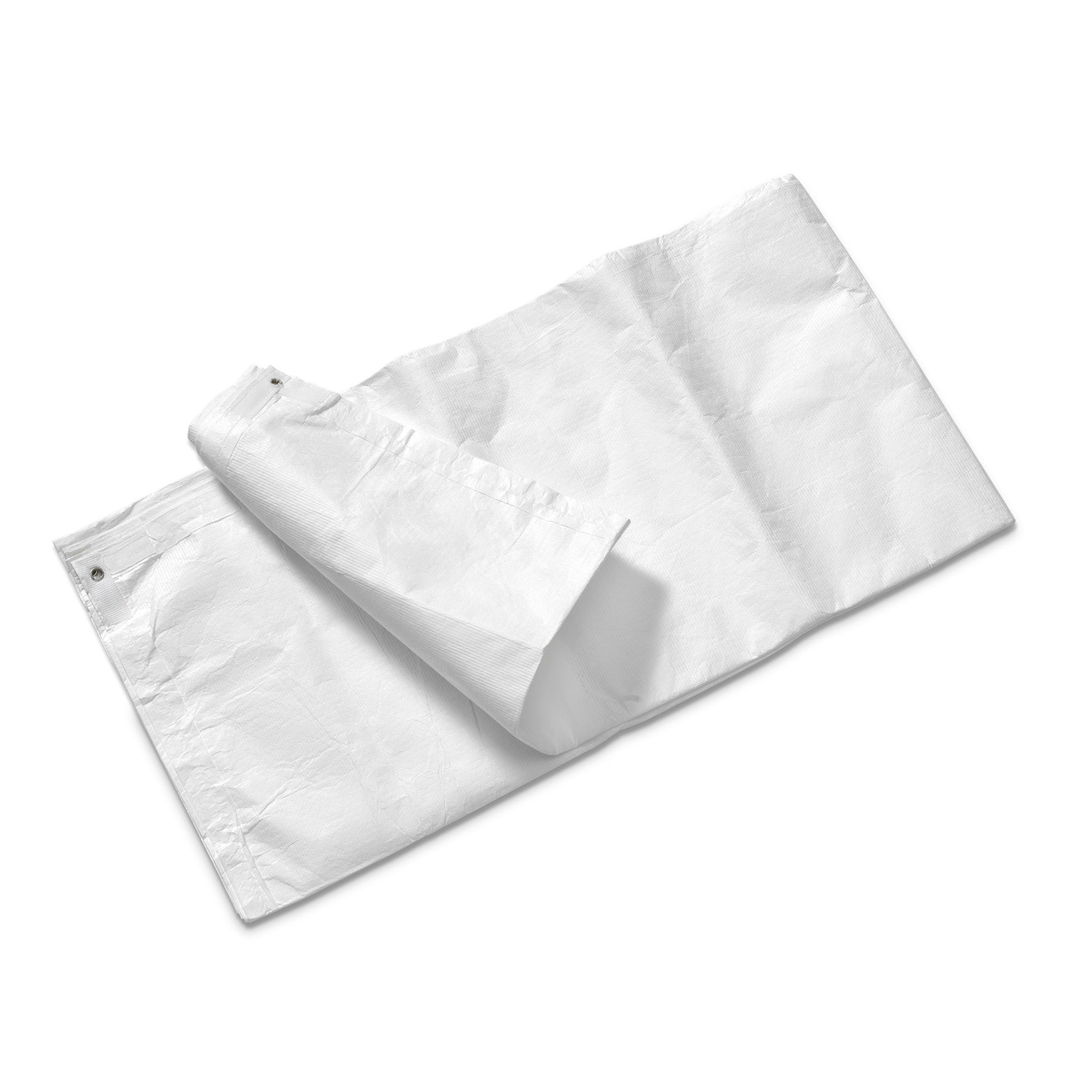

Ariette 2 front & rear cloths. 100x100cmRF06111
Thumbnail
x1

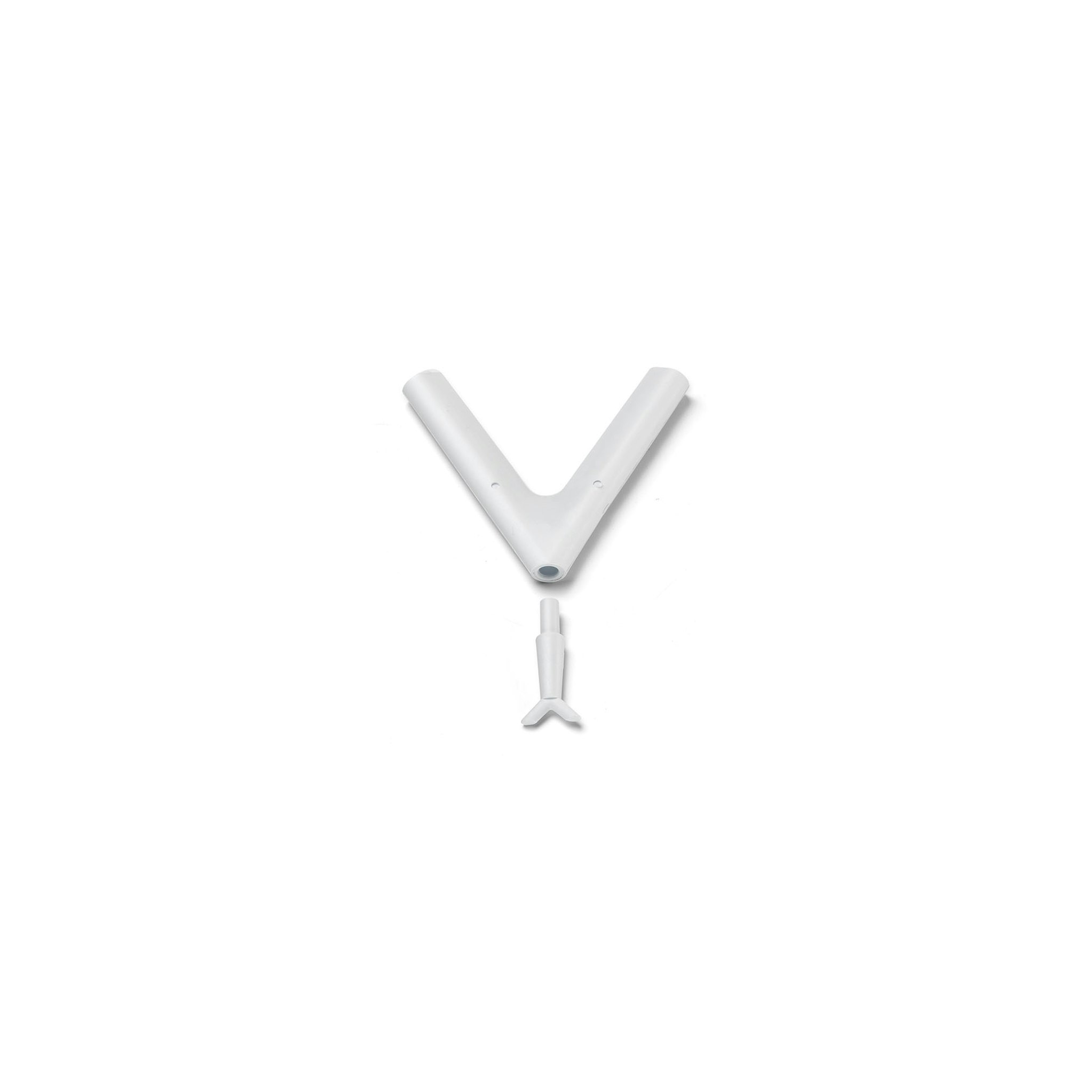

Ariette 1/2/3 fork push rodRF0400100
Thumbnail
x1

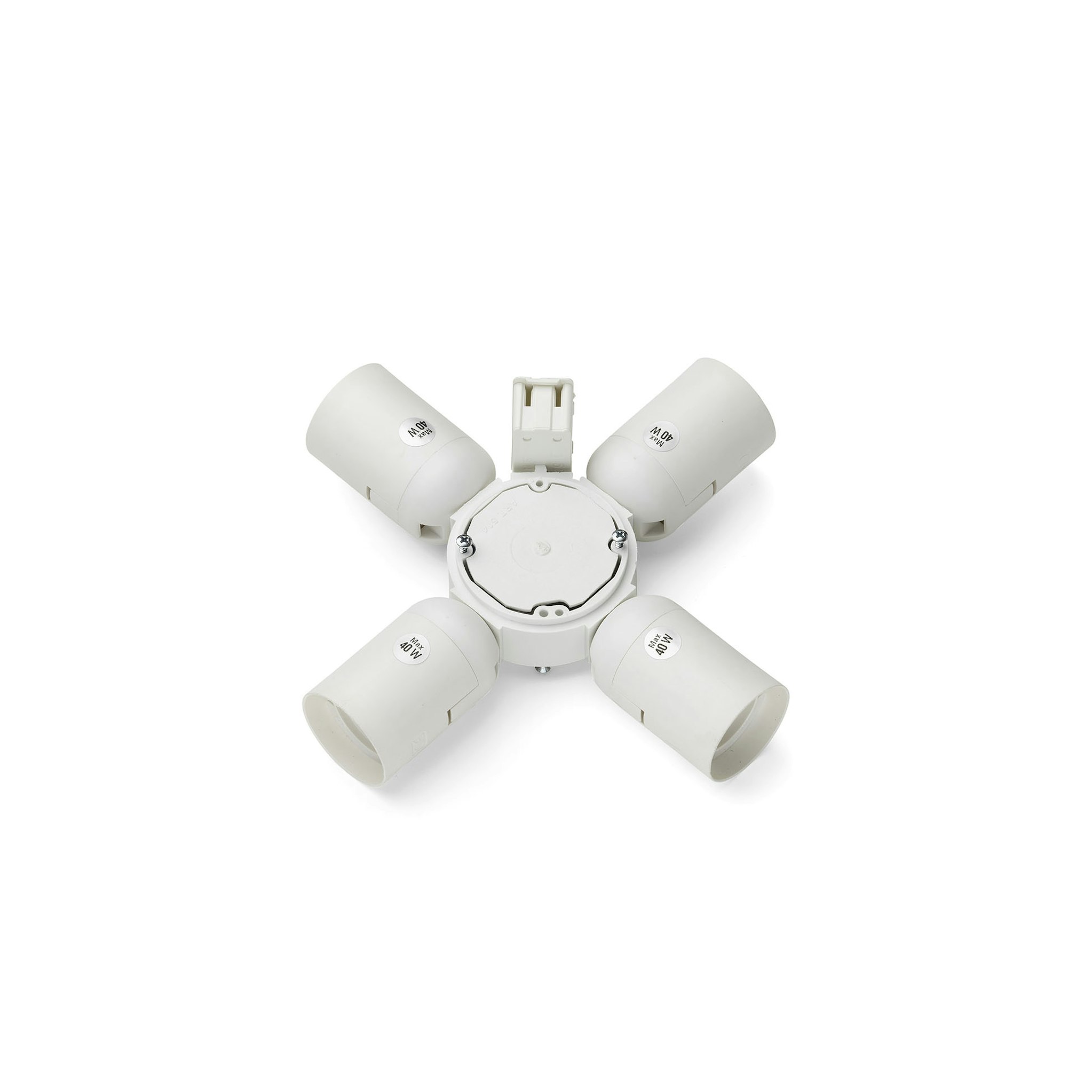

Ariette 1/2/3 Lamp holder assemblyRF04635
Thumbnail
x1

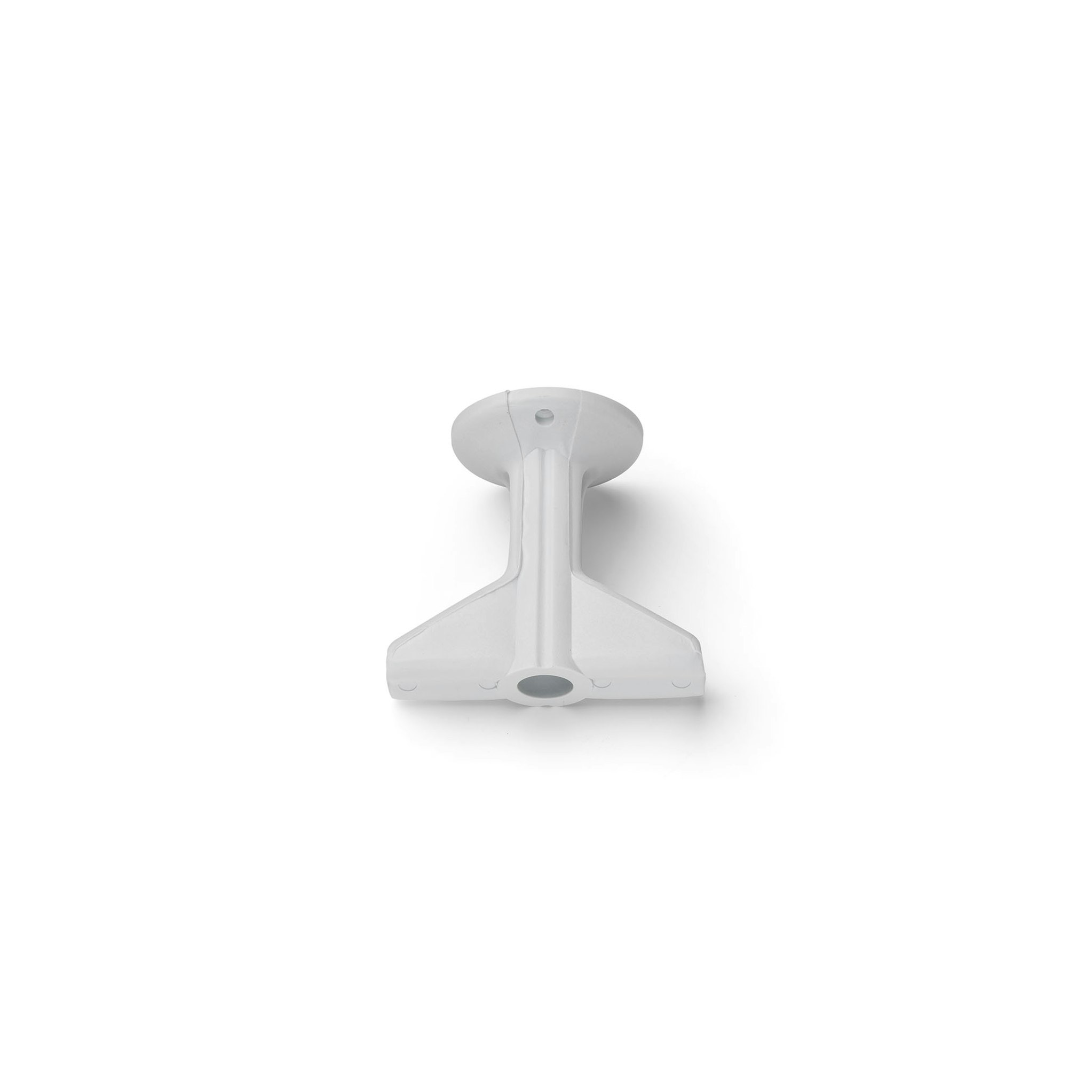

Ariette 1/2/3 Rod nylon support/6 Ariette 1RF05737
Thumbnail
x1

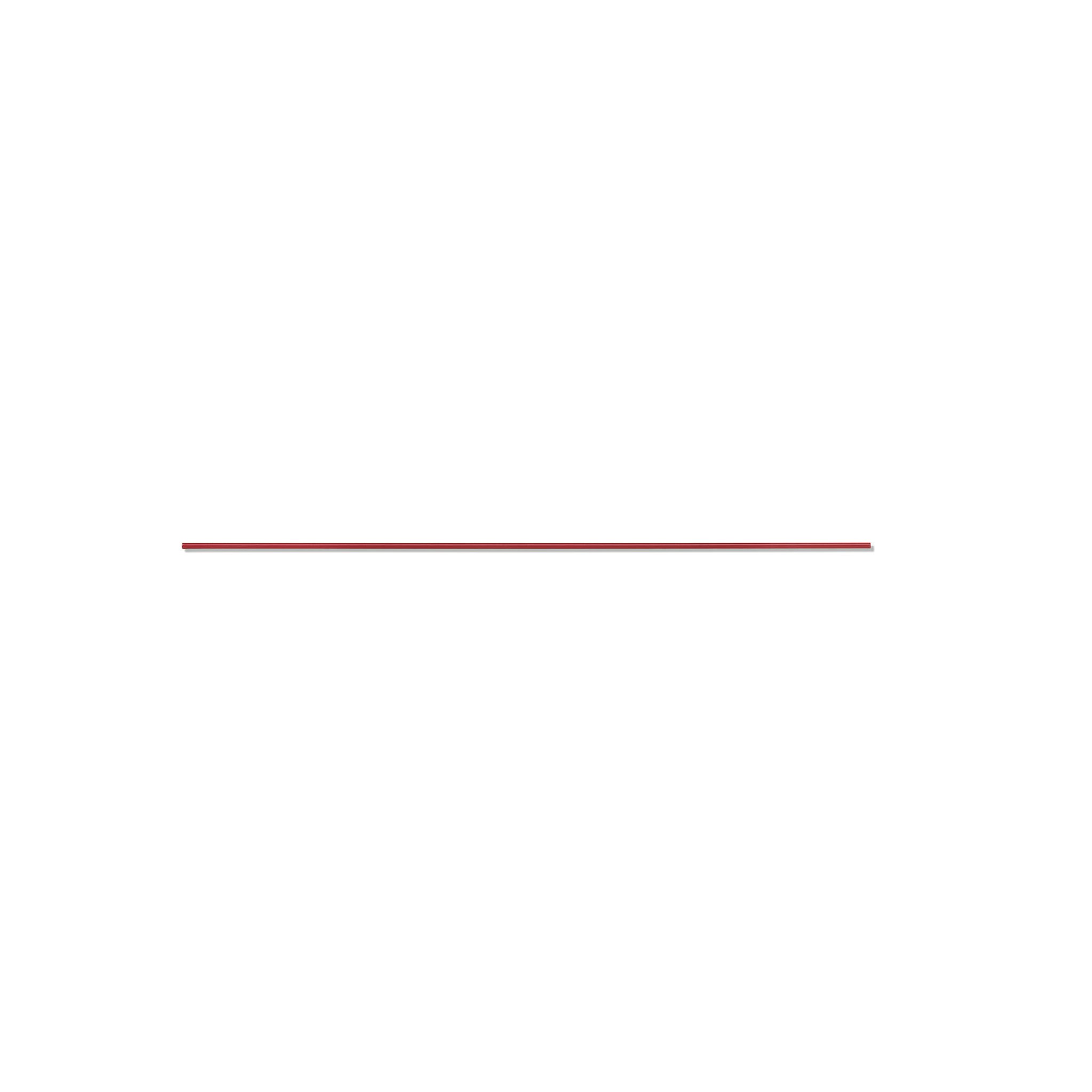

Ariette 2 fiberglass rod d.6 mm 6x670RF05757
Thumbnail
x1

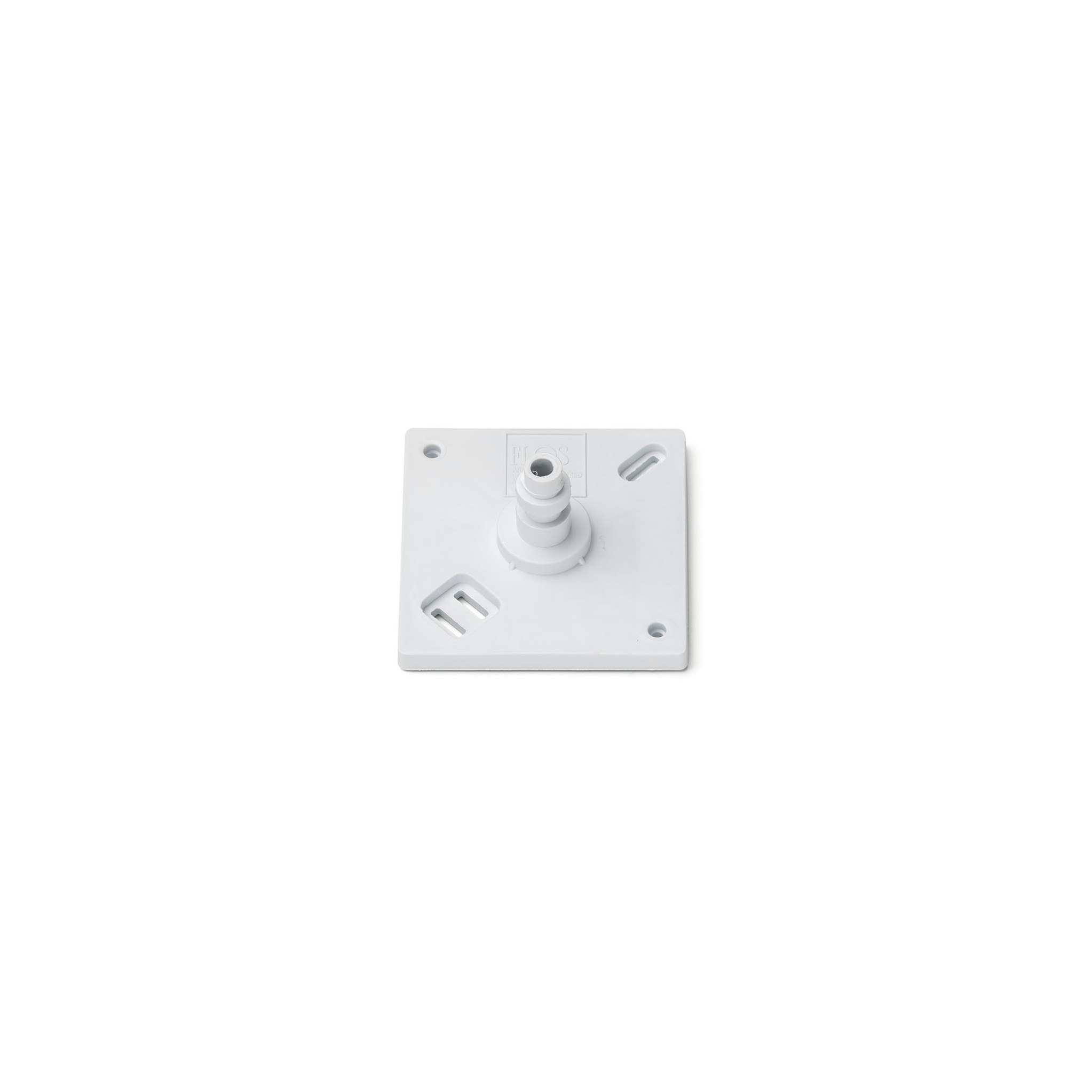

Ariette 1/2/3 Nylon wall attachmentRF05740
Thumbnail
x1

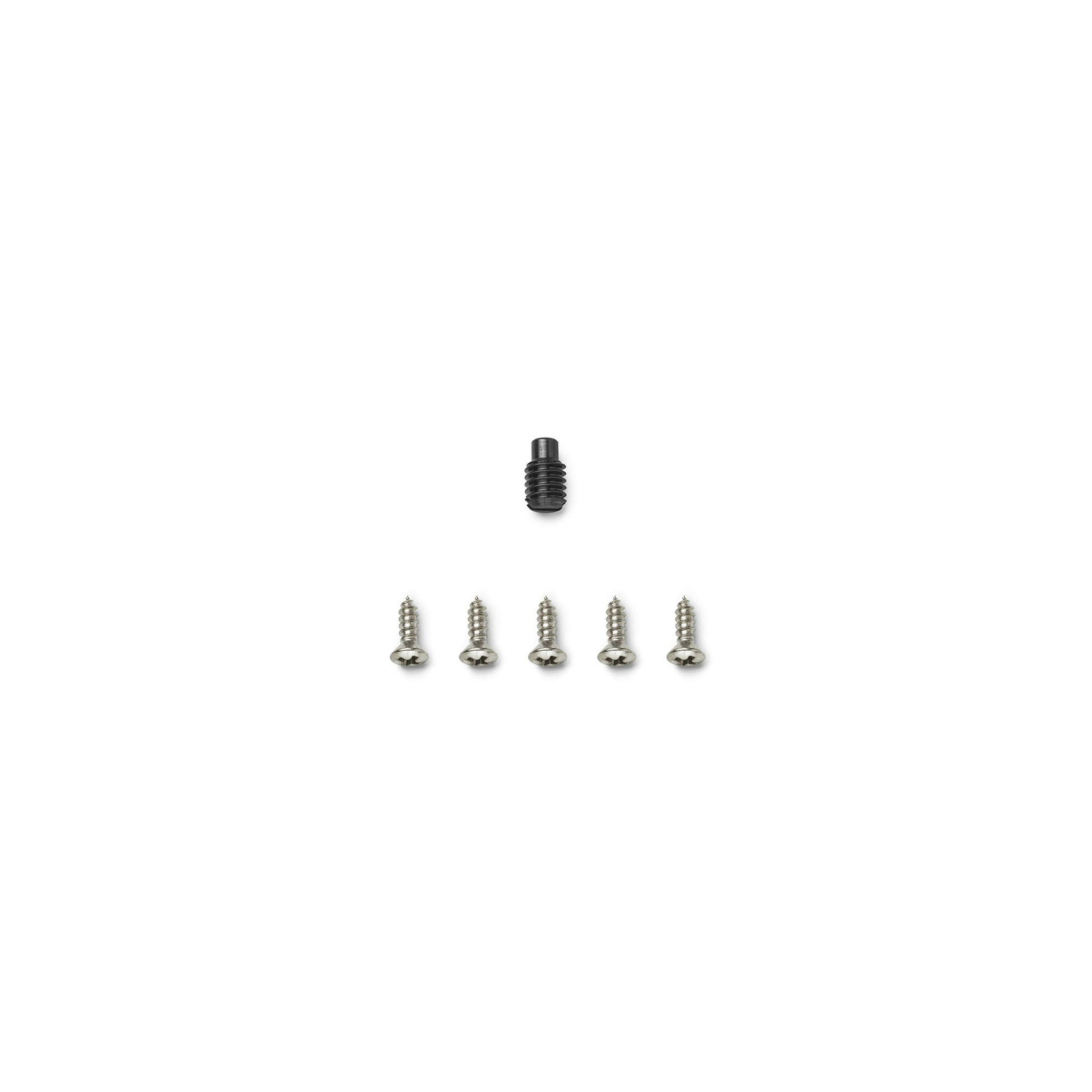

Ariette 1/2/3 Kit with grub screw & screws for rod supportRF0400200
