Related to
Zero Track & Pro
05.5160.ER.DA

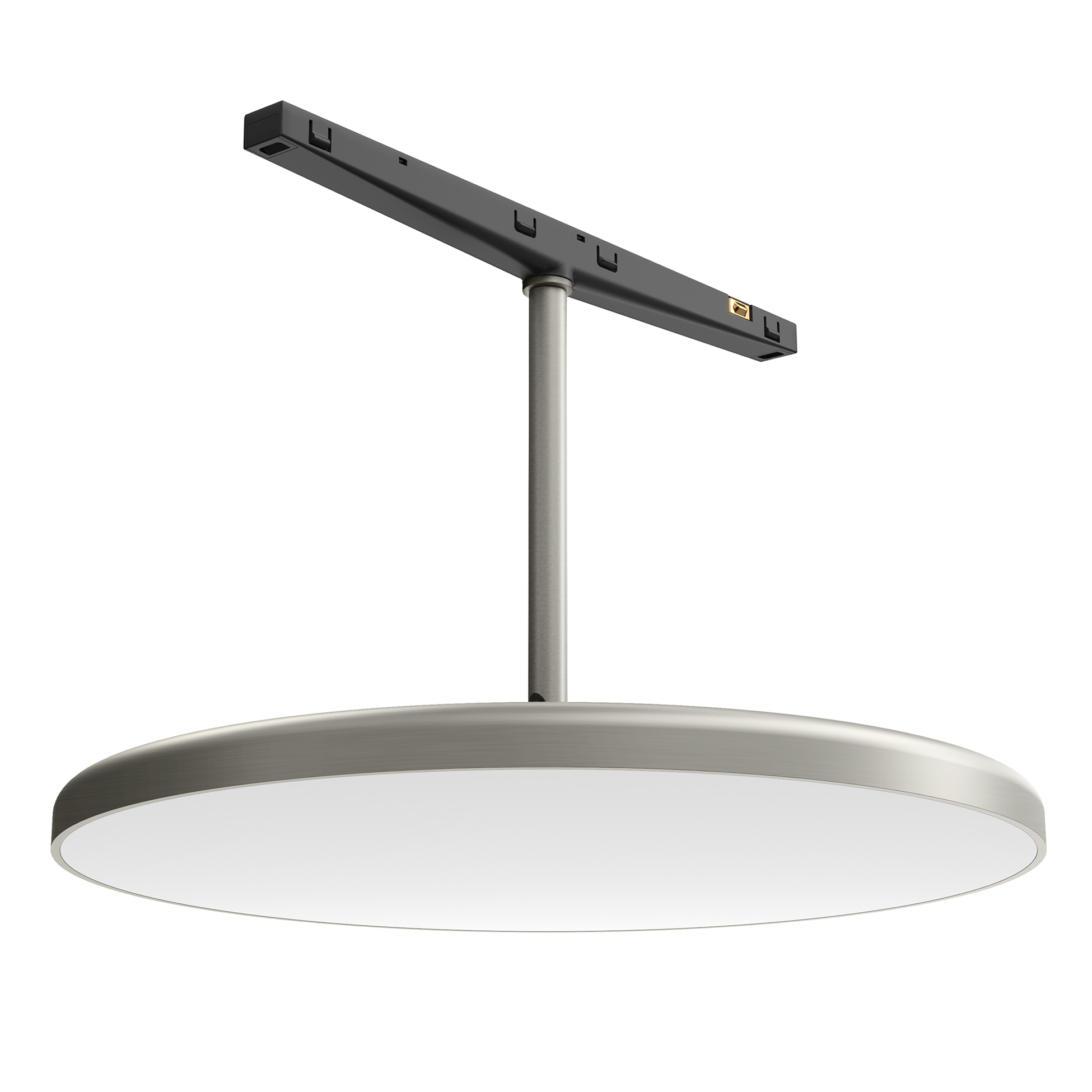

Atom 200 Dali Dimmable

LED general lighting module for installation in the Zero Track Pro system. Electronic DC/DC converter incorporated. Individual wireless adjustment via Casambi. Casambi control implemented via the FLOS Control® app for mobile devices (available in the Apple Store and Google Play).

10.5W - 395lm - 2700K - CRI> 90 - Beam° 110

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-System-Zero_Track_Pro-Atom_200-Dimmable_1_10V_Dimmable_DALI_2
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
10.5
Source flux (lm)
1005
Lumen Output (lm)
395
Schematic light drawing
EU_05_5160_XX_XXW10.5
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
2
Beam angle C0-180 (º)
110
Beam angle C90-270 (º)
110
Extreme cut off
No
Electrical
Insulation class
Forward voltage (V)
24
LED current (mA)
650
Power supply
Dimmable
Power supply type
Dimming interface
Physical
Colour
Orientation
Rotation (º)
360
Longitudinal tilting (°)
90
Net weight (kg)
0.54
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

REPLACEABLE3
