Bellhop
F1081064

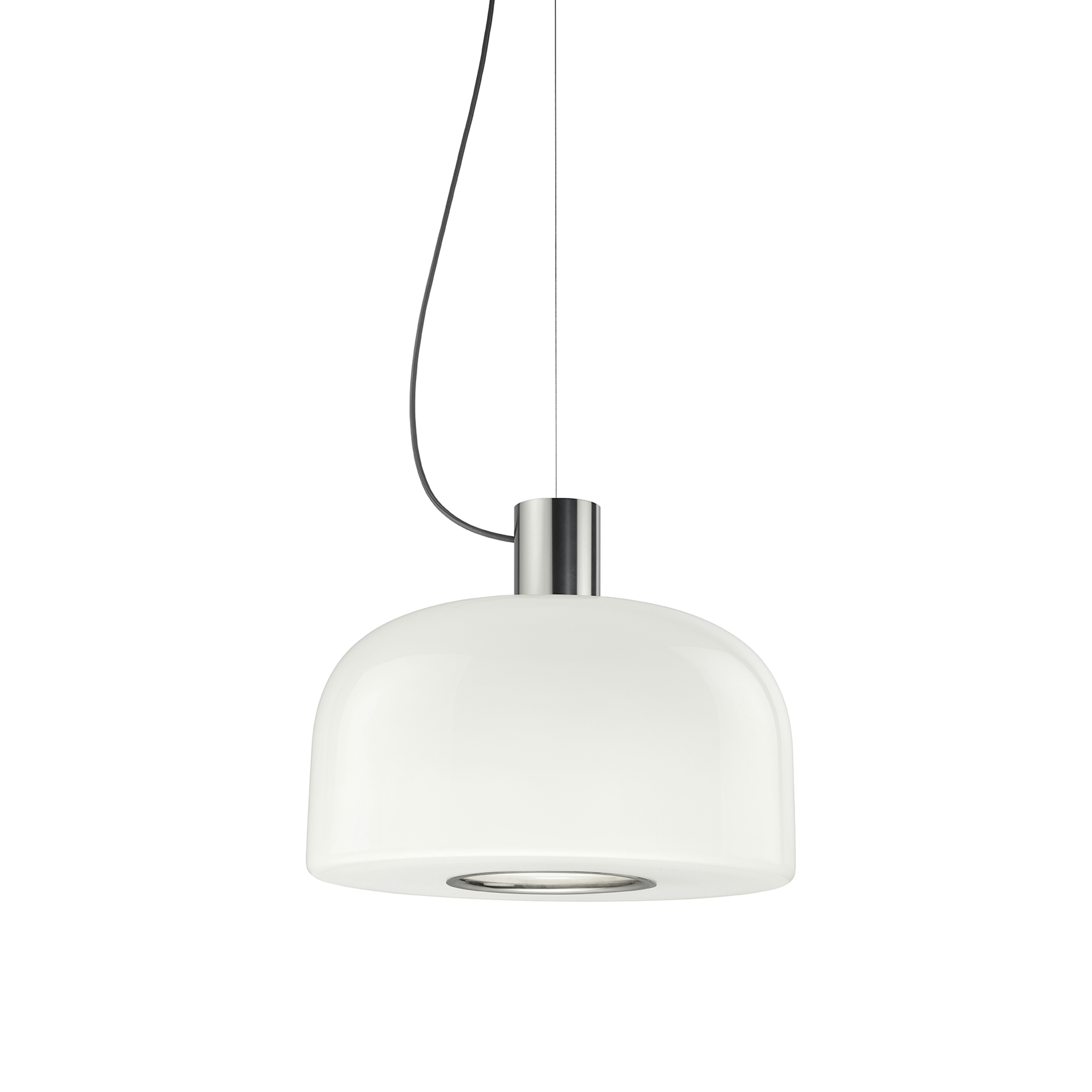

Bellhop Glass S2

Bellhop Glass Suspension can be used it as an ambient but also as a task light, which directly illuminates, with a non-blinding cone of light, the surface on which it is suspended. The hole in the bottom part of the lamp, protected by an aluminum element, is shaped to direct the light (and change the bulb) avoiding the diffusion up to the eyes of those sitting at the table. A cone of light is therefore created inside the suspended Bellhop Glass, which expands homogeneously in the environment on all sides and lands on the table precisely, like a torch, visually signaled by the colored aluminum ring that surrounds the lower opening of the lamp.

LED retrofit - 30W

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Bellhop-S2
Main specifications
EAN
8059607067758
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGSA
Number of lamps
1
Power (W)
30
System power (W)
30
Schematic light drawing
F10810XXWBELLHOP-GLASS-S2_25W-LED
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Orientation
Length (mm)
450
Cord colour
productFields.physical.cordLength
2700
Canopy colour
Canopy length/diameter (mm)
132
Canopy height (mm)
31
Net weight (kg)
6.7
Package volume (m3)
0.14
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

REPLACEABLE4

Spare Parts

F1081064-bellhoglass-S2-flos-boom
01. Bellhop Glass S shiny white ceiling rose assembly
RF1081109
02. Steel cable 3 meters
RF36887

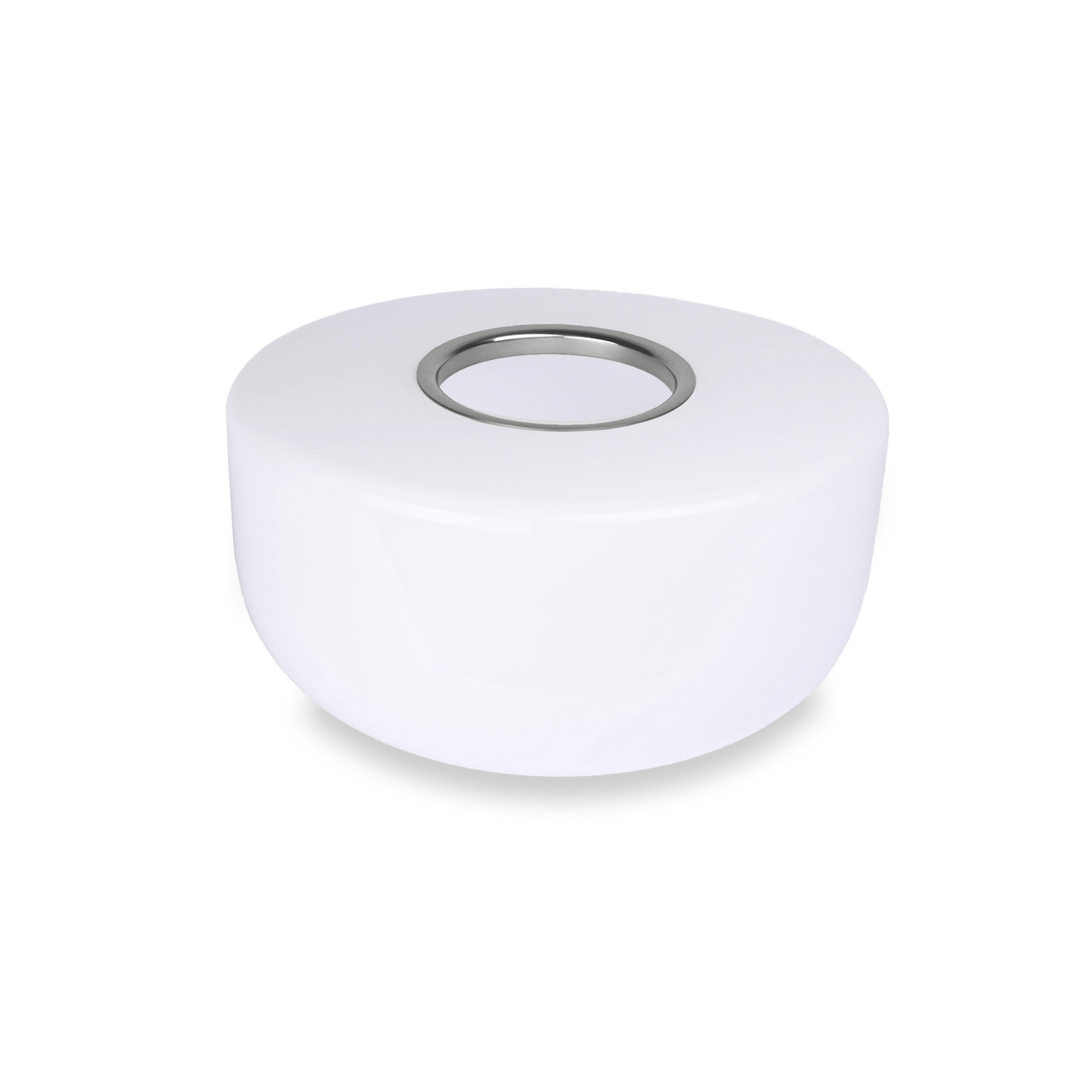

04. Bellhop Glass S2 white diffuser shiny ring
F1083064
