Black FlagBlack Flag Pro
Designed by Konstantin Grcic, 2023
Wall-mounted lamp emitting direct and indirect light. Features an extendable aluminium arm that extends up to 3.5 m from a vertical wall-mounted frame. Integrated touch-sensitive control panel on the arm enables on/off switching and independent dimming of upward and downward light. Colour temperature adjustable from 2700 K to 5000 K. Equipped with Adaptive Eco Mode, featuring an embedded lux sensor that maintains constant 500 lx lighting levels on the work plane. Bluetooth control available up to 10 m from the lamp. Can be wired to a light point or connected via IEC plug.
82W - 2700-5000K - CRI> 90
Technical Drawing
Main specifications
EAN
8059607058145
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
82
Schematic light drawing
Photometric
Lighting type
,
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Dimmable
Power supply type
Dimming interface
Physical
Colour
Cord colour
Canopy colour
Canopy length/diameter (mm)
1200
Canopy width (mm)
43
Canopy height (mm)
43
Net weight (kg)
15.35
Package volume (m3)
0.08
IP internal
Spare Parts
00. Super magnet diam. 22
RF37394
01. Driver 96W 48V 220-240V
RF32405

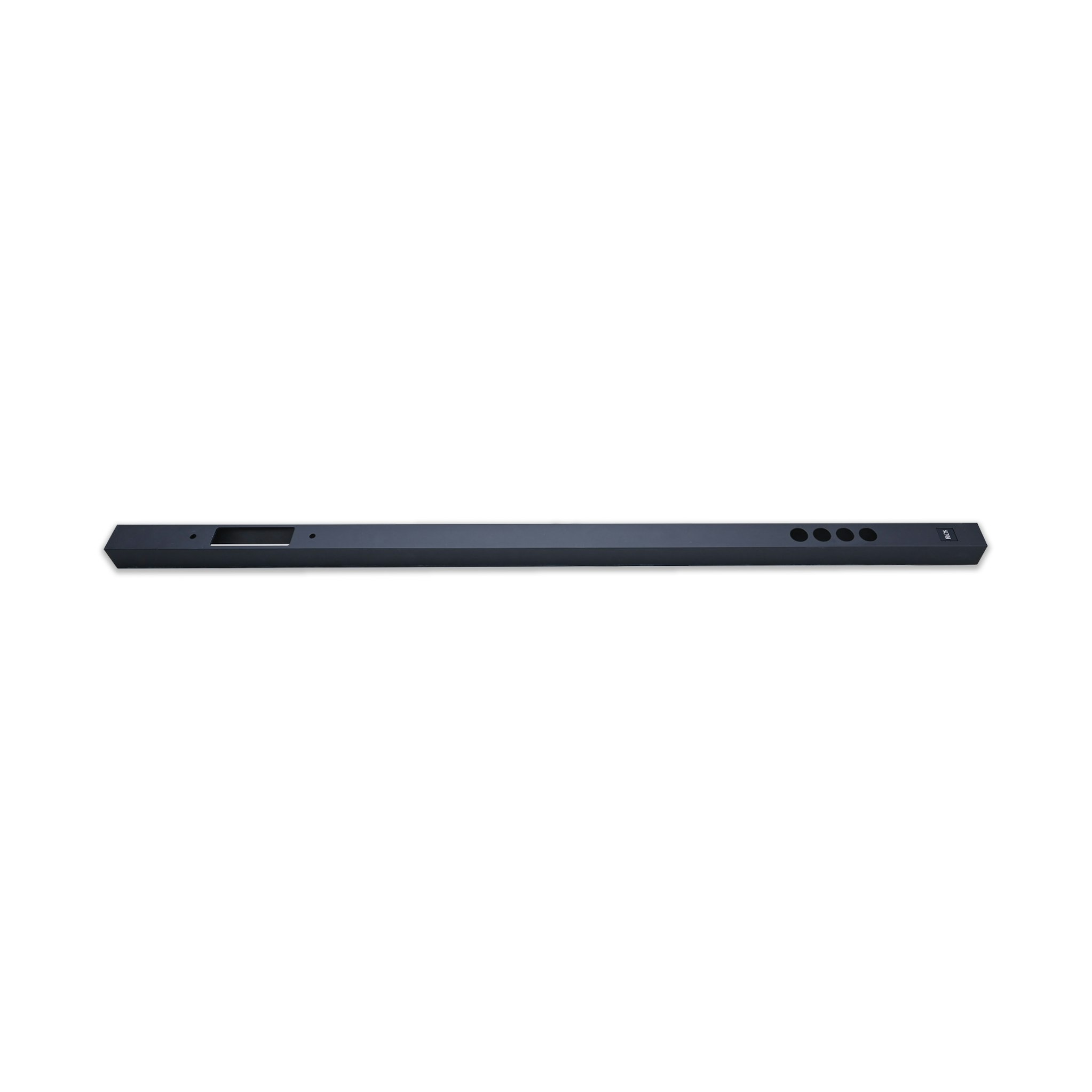

02. Black Flag Pro Eu cover assembly
RF35287
03. Black Flag Pro up stripe assembly
RF35291
04. Black Flag Pro down 2700-5000°K stripe assembly
RF37995
