03.2006.01B WhiteBon Jour Ø 45
Designed by Philippe Starck, 2016

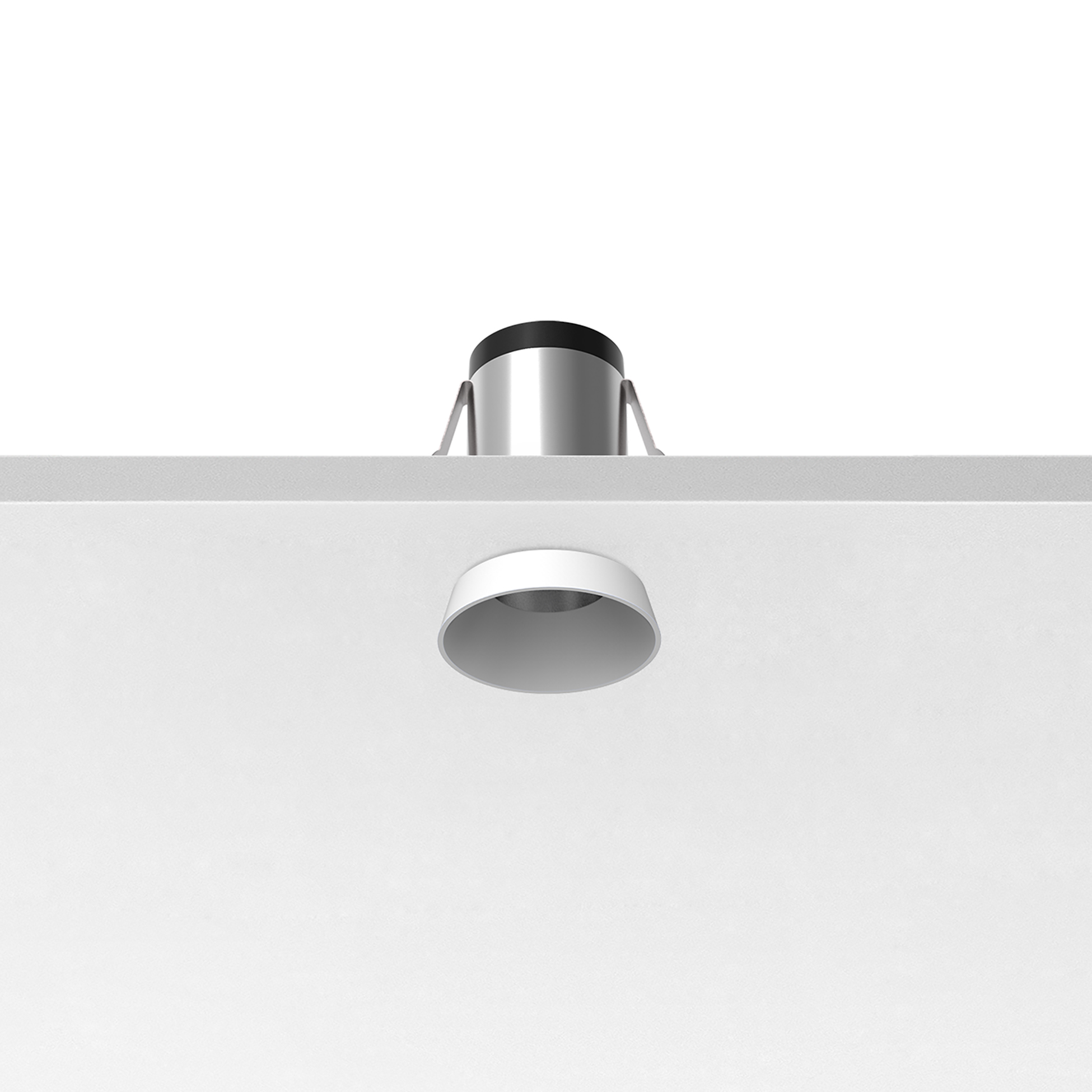

Recessed luminaire with LED light source. Remote 220/240V power supply included. It is necessary to anticipate a space for accessing the driver.
4.5W - 353lm - 3000K - CRI> 90 - Beam° 19
Also available in:
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Enviroment
Indoor dry location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
4.5
System power (W)
6
Source flux (lm)
605
System flux (lm)
353
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
Rf fidelity index
91
Rg gamut index
98
LED Life / Failure Ratio
L80B20 >36000h (Tc=85ºC)
Beam angle C0-180 (º)
19
Beam angle C90-270 (º)
19
UGRL
<10
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Forward voltage (V)
11.5
LED current (mA)
400
Driver
Remote included
Dimmable
No
Dimming type
Non Dimmable
Physical
Colour
White
Trim
Yes
Recessed depth (mm)
187
Bezel diameter (mm)
45
Net weight (kg)
0.13
Package volume (m3)
0.01
IP
20
IP external
44
Notes
Accessories included (honeycomb and cross screening cylinder)
Photometric Files
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class E
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
