F3190009

Button HL

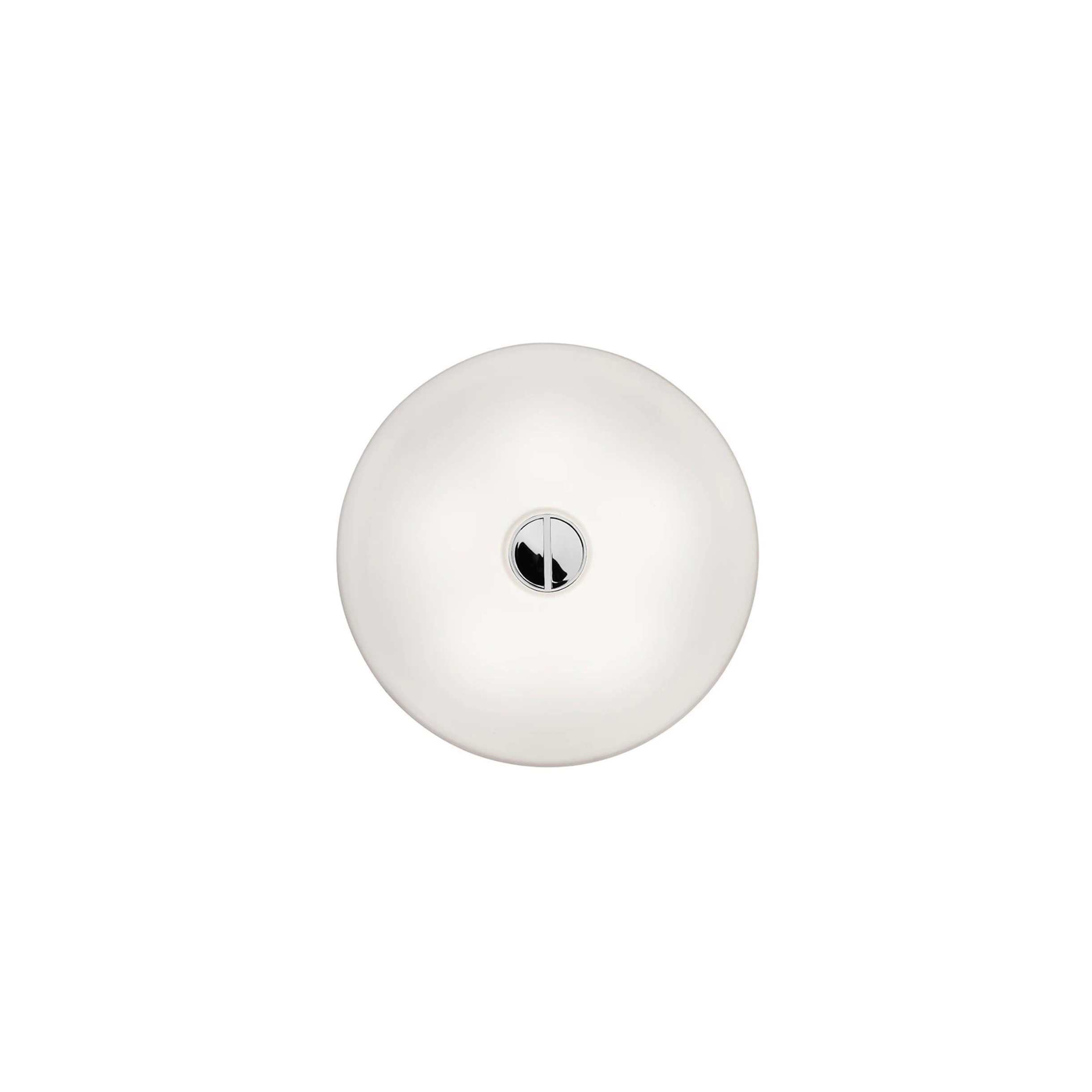

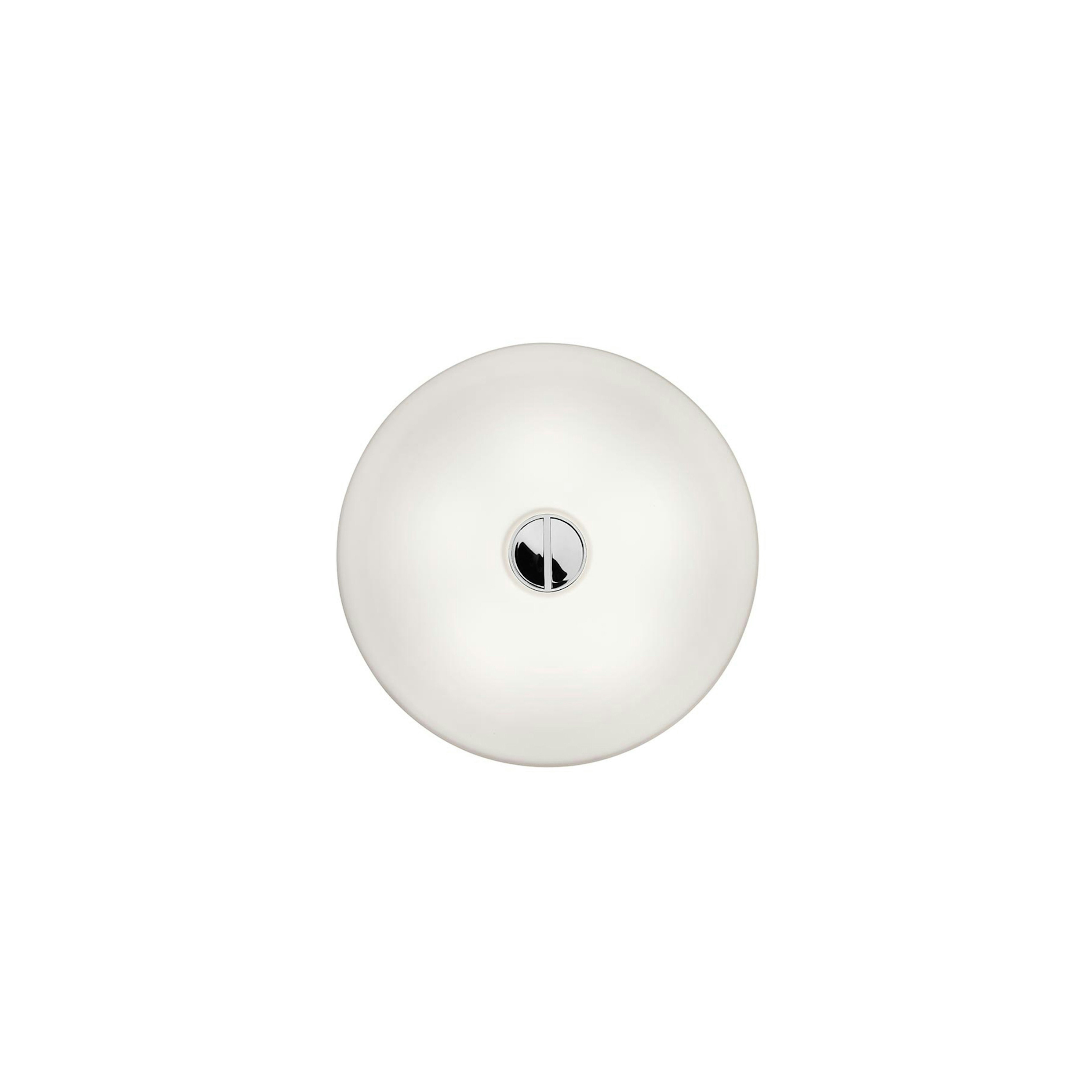

Wall/ceiling fixture providing diffused lighting for indoor use. Hand-blown opal ply glass diffuser (transparent ? opal ? transparent) with acid finish. Sheared, deep-drawn steel sheet wall/ceiling attachment with white galvanized finish. Sheared, deep-drawn steel sheet reflector painted white for high temperatures. Closing cover in injection molded tecnopolymer with chorome finish. Satin-finish incandescent line voltage halogen lamps.

Halogen - 5 x 40W

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-Button-HL
Main specifications
EAN
8059607018866
Mounting
,
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGS
Number of lamps
5
Power (W)
40
Schematic light drawing
button-hl-ceiling-wall-lissoni-flos-F3190009-curva-fotometrica-01
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
470
Net weight (kg)
6
Package height (mm)
175
Package width (mm)
555
Package length (mm)
555
Package volume (m3)
0.05
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Bulbs

x5
NOT INCLUDEDLED Lamp 2W 240lm G9 220-240 2700K T13 Non DimmableRF26520
x5
NOT INCLUDEDLED BiPin Lamp G9 3,2W 2700K DimmableRF36378

Spare Parts

F3190009-button-hl-flos-boom
01. Chrome locking cap assembly
RF3190100
02. Button Silicone Seal Shore Transparent 62x13x1,5
RF15719
03. Button Opal glass diffuser for new version
RF3190300
04. Button G9 Lampholder
RF37164
Thumbnail
x1

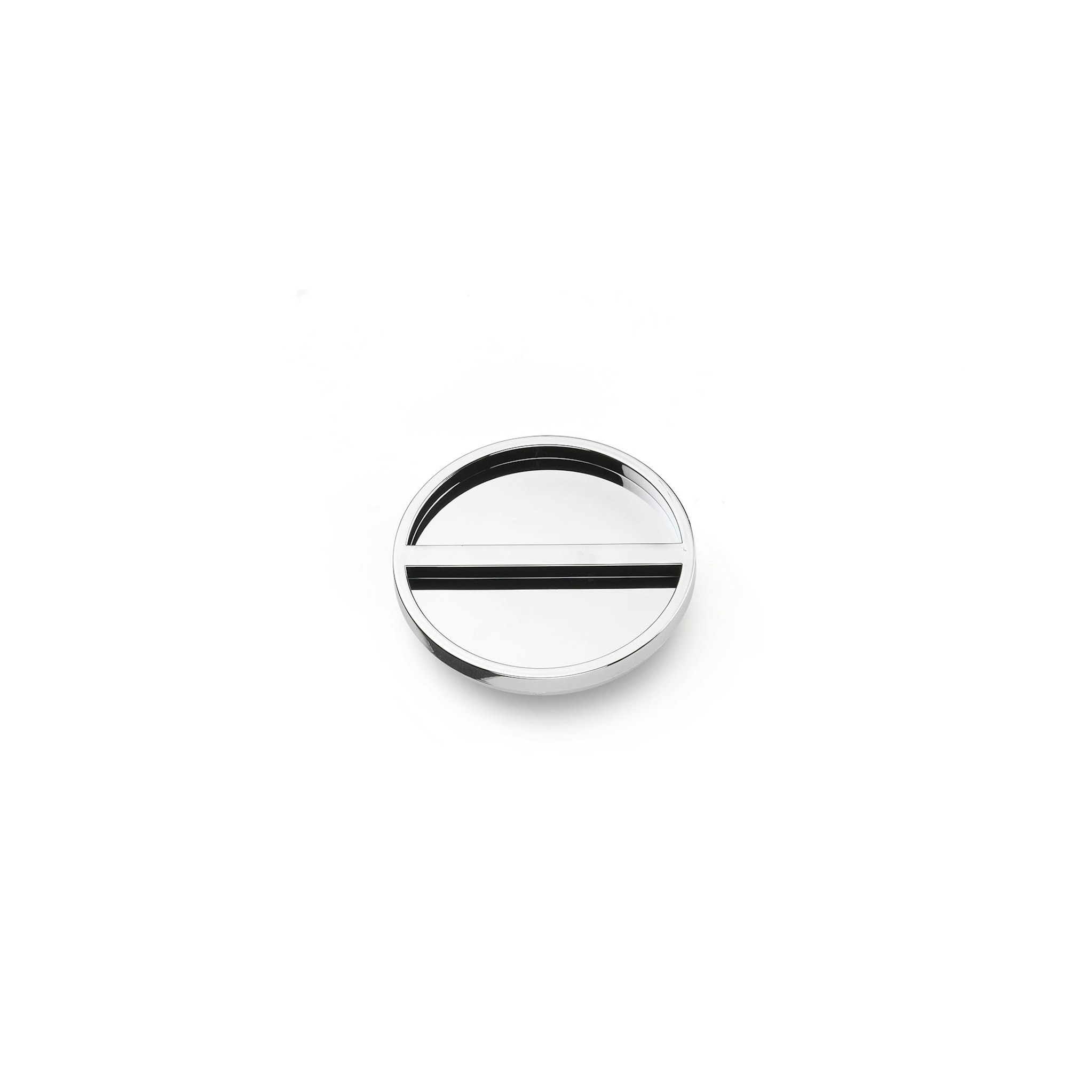

Chrome locking cap assemblyRF3190100
x1

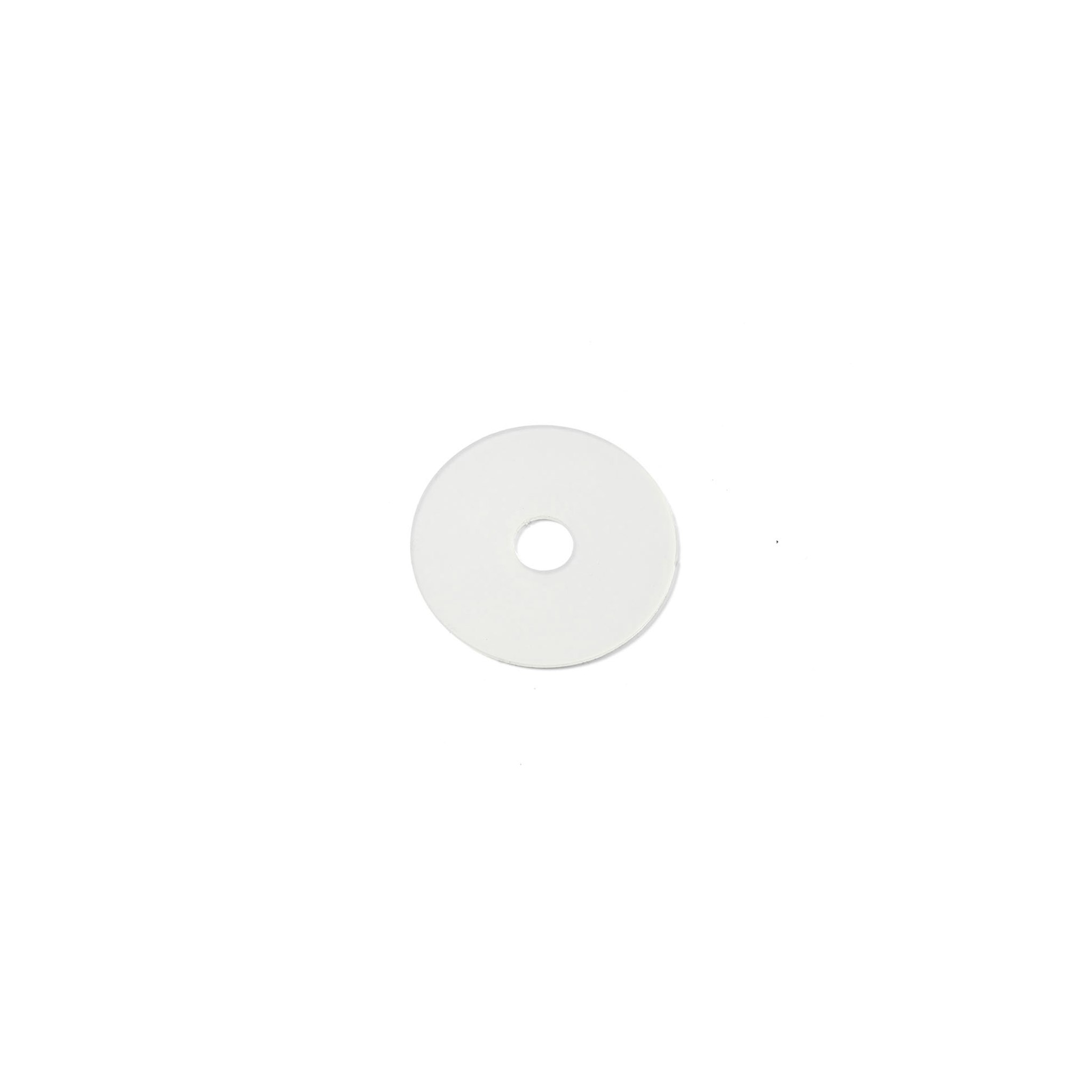

Button Silicone Seal Shore Transparent 62x13x1,5RF15719
Thumbnail
x1

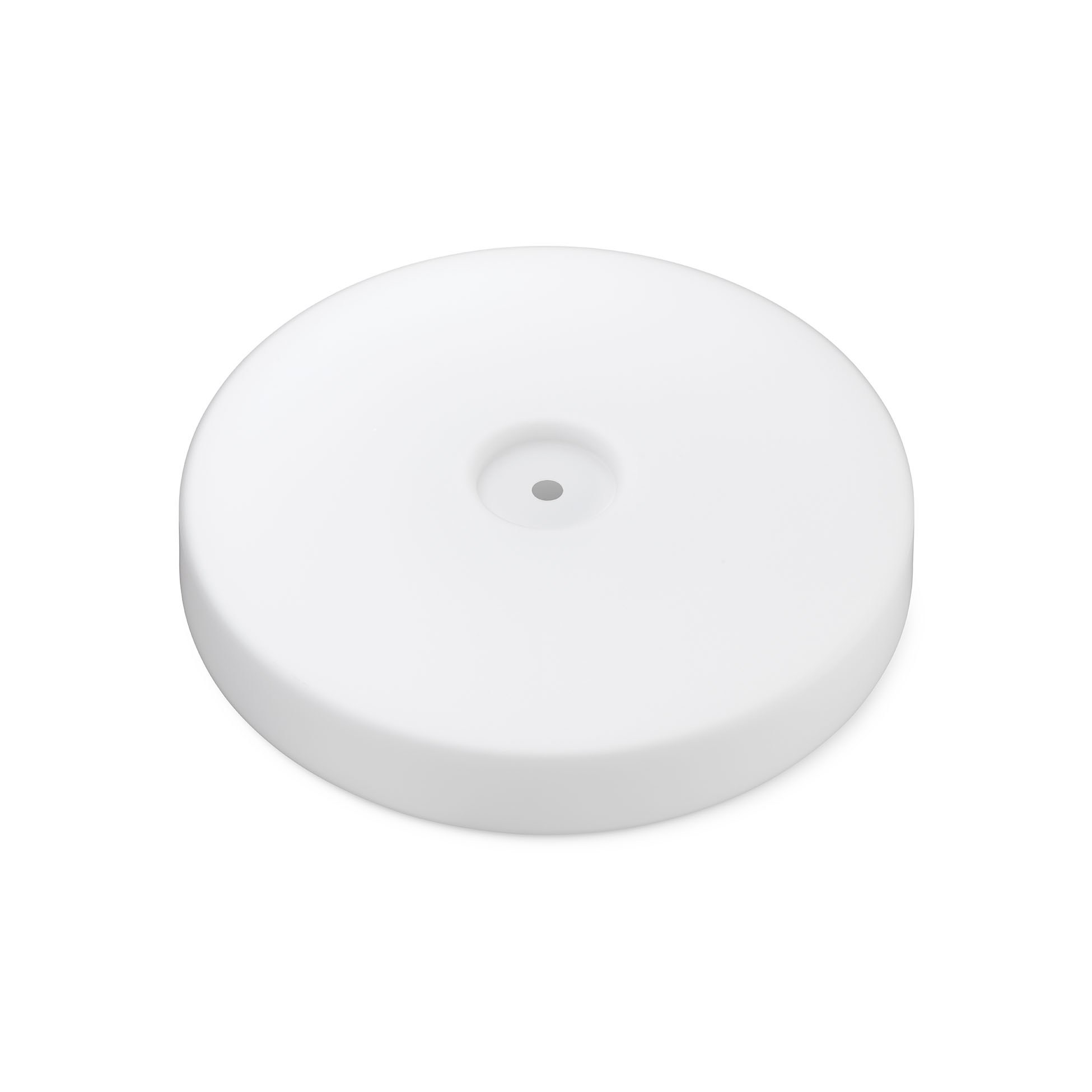

Button Opal glass diffuser for new versionRF3190300
x1
Button G9 LampholderRF37164
