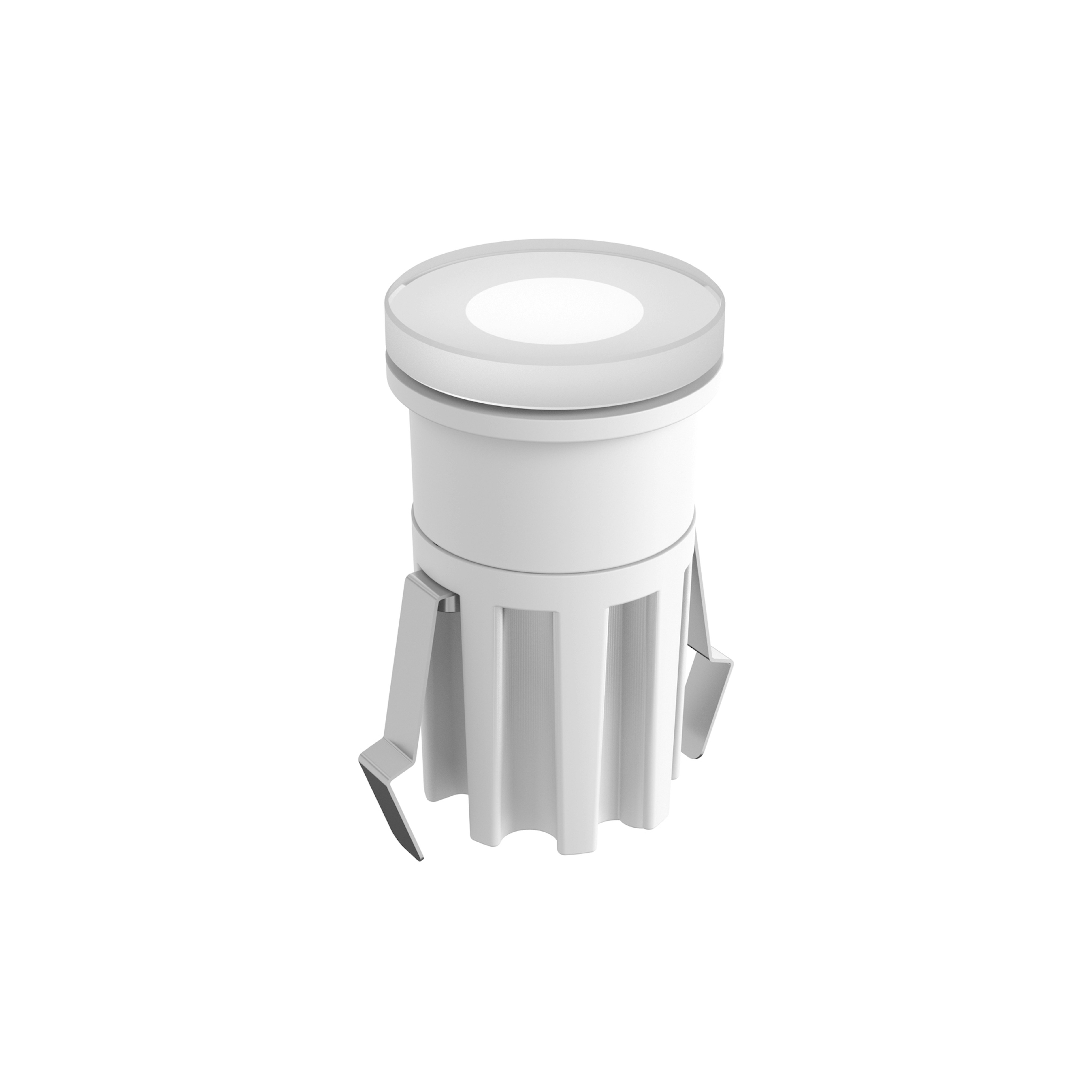

C-MEC-Me Round 40 Opal
Designed by FLOS Outdoor, 2008
LED source included. 24V dc remote electric power supply to be ordered separately. Requires a junction box to be ordered separately. The luminaire is equipped with a protruding, neoprene, 200 mm cable and a wiring kit with crimp connectors and adhesive heat-shrink tubing guaranteeing the water tightness of the connection. Glass with opal diffuser. Adjustable light intensity.
23lm - 3000K - CRI> 80 - Beam° 110
Technical Drawing
Main specifications
EAN
8054793604992
Mounting
Light source type
Light sources included
Yes
LED type
Number of lamps
1
System power (W)
0.3
Source flux (lm)
44
Lumen Output (lm)
23
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
110
Beam angle C90-270 (º)
110
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
24
Power supply
Dimmable
Power supply type
, ,
Dimming interface
Emergency
No
Physical
Colour
Orientation
Net weight (kg)
0.16
Package height (mm)
134
Package width (mm)
70
Package length (mm)
83
IP internal
IP external
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance'
Dimmable version on request
