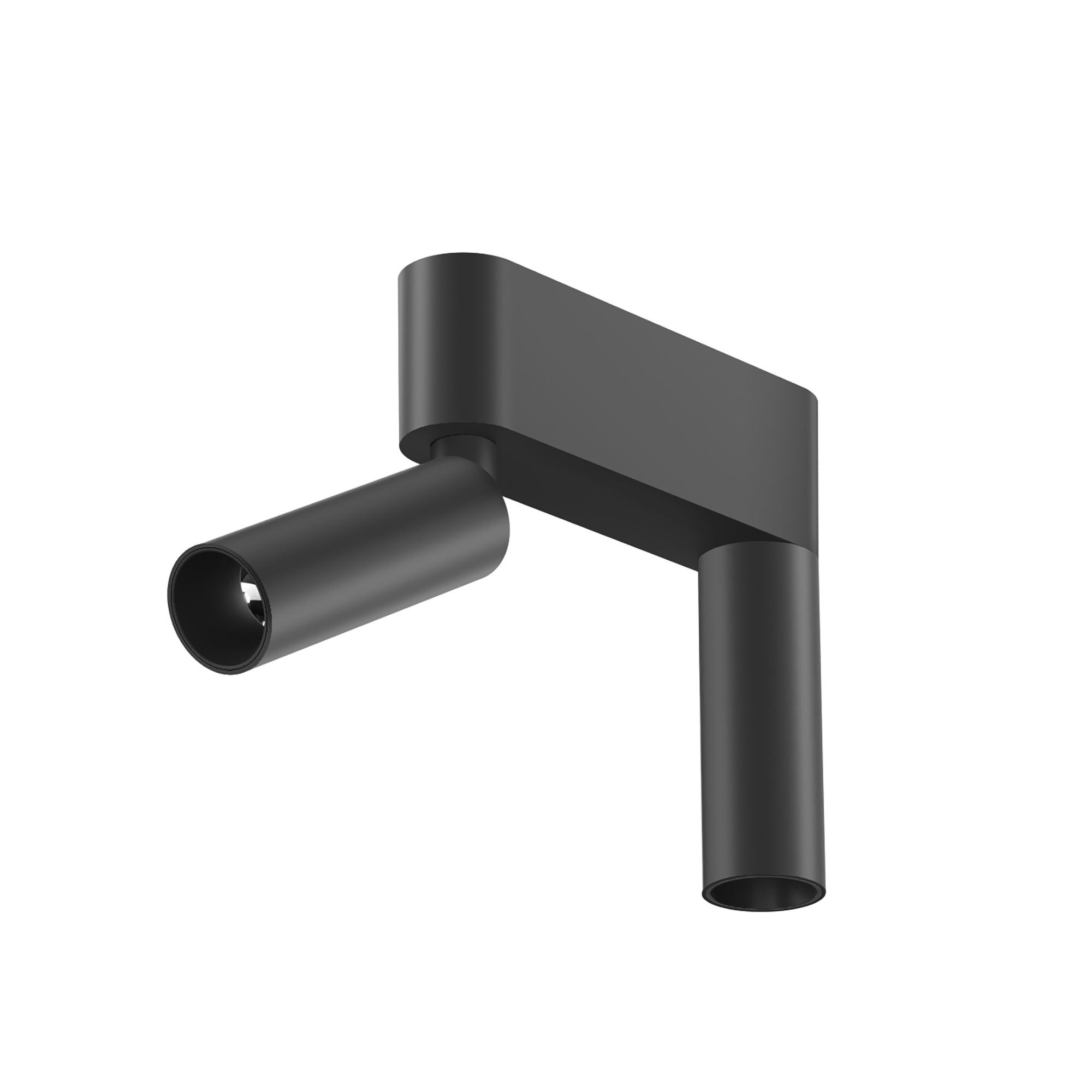

C1C1 Double Spot Surface Small Ø 35 Phase Cut
Designed by FLOS Architectural, 2024
Adjustable luminaire with LED for indoor use, suitable for ceiling installation. The body can be extracted from the installation surface for 60º orientation on the vertical axis and 180º on the horizontal axis. Integrated Full cut-off optical group and the power supply is included.
2 x 382lm - 3000K - CRI> 90 - Beam° 15
Technical Drawing
Main specifications
Mounting
LED type
Number of lamps
2
System power (W)
14.5
Source flux (lm)
540
Lumen Output (lm)
382
Efficacy (lm/W)
50
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
Rf fidelity index
95
Rg gamut index
98
LED Life / Failure Ratio
L90B50>60.000h_Tc85ºC
Beam angle C0-180 (º)
15
Beam angle C90-270 (º)
15
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
230
Forward voltage (V)
24
LED current (mA)
500
Power supply
Dimmable
Power supply type
Dimming interface
Batteries inside
No
Physical
Colour
Orientation
Rotation (º)
355
Longitudinal tilting (°)
60
Net weight (kg)
0.68
IP internal
