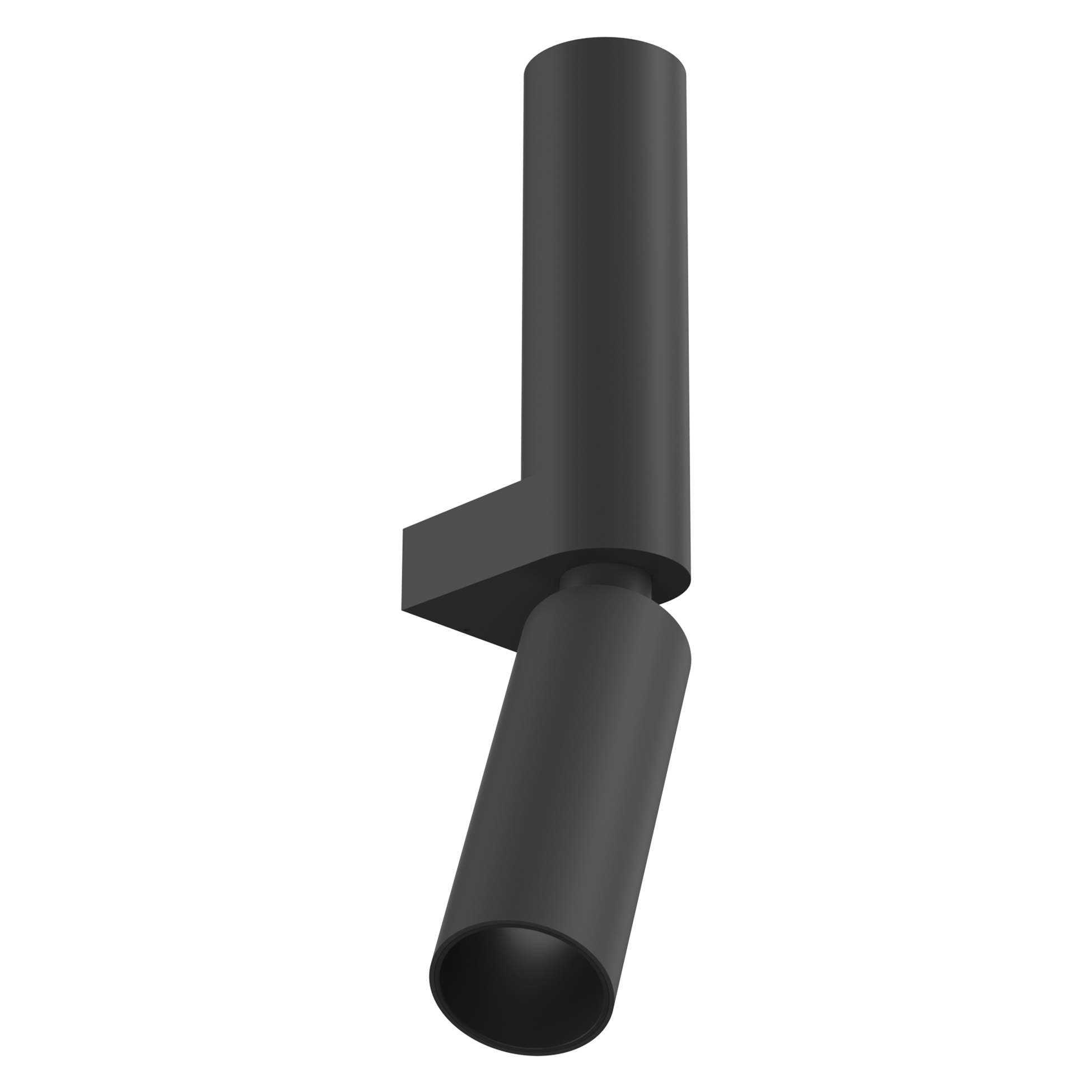

C1C1 Double Spot Wall Large Ø 56
Designed by Vincent Van Duysen, 2020
Adjustable luminaire with LED for indoor use, suitable for wall installation. The body can be extracted from the installation surface for 60º orientation on the vertical axis and 180º on the horizontal axis. Integrated Full cut-off optical group. The remote power supply (not included) must be placed in an accessible location. The installation frame must be ordered .separately.
28W - 2139lm - 2700K - CRI> 90 - Beam° 14
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
28
Source flux (lm)
2643
Lumen Output (lm)
2139
Schematic light drawing
Photometric
Lighting type
,
Light distribution
CCT (K)
CRI>
Rf fidelity index
90
Rg gamut index
99
LED Life / Failure Ratio
L80B20 >36.000h (Tc=85ºC)
Beam angle C0-180 (º)
14
Beam angle C90-270 (º)
14
Extreme cut off
No
Electrical
Insulation class
LED current (mA)
950-1200
Power supply
Dimmable
Physical
Colour
Orientation
Rotation (º)
180
Longitudinal tilting (°)
60
Spot diameter (mm)
56
Net weight (kg)
0.96
IP internal
Notes
Photometric data without up diffuser.
