Captain Flint
F1530059

Captain Flint

Floor lamp providing adjustable direct light. Painted steel or brushed brass, stem and metal spinning cone. Opal photoengraved PC diffuser by injection molding. White Carrara or Black Marquina marble base. Power cord length 260 cm, with  foot dimmer switch that provide ON-OFF functions and 10-100% light adjustment. Plug-in power supply with interchangeable plugs

20W - 554lm - 2700K

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Floor-Captain_Flint
Main specifications
EAN
8059607001448
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
20
Lumen Output (lm)
554
Schematic light drawing
F15300XXWCAPTAIN-FLINT_20W-LED
Photometric
Lighting type
Light distribution
CCT (K)
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Dimmable
Power supply type
Dimming interface
Plug type
, ,
Batteries inside
No
Physical
Colour
Length (mm)
320
Cord colour
productFields.physical.cordLength
2500
Net weight (kg)
8.5
Package volume (m3)
0.22
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

REPLACEABLE2

PWRSUPRPL3

Spare Parts

F1530059-captainflint-flos-boom

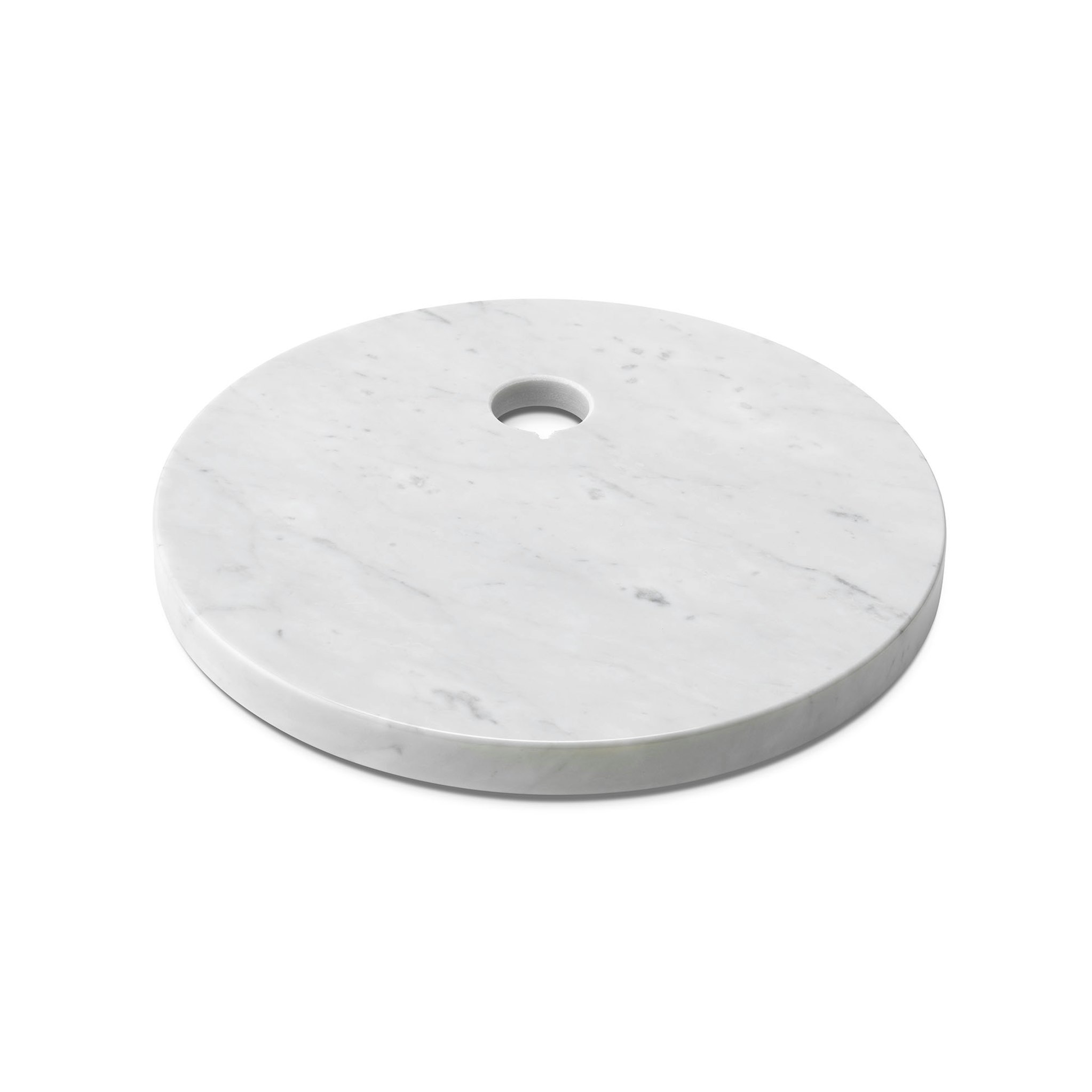

01. Captain Flint White marble base
F1532009
02. Black plug assembly kit & 48V driver
RF6600130
03. Captain Flint Switch dimmer 400Ma
RF26382
04. Captain Flint Kit screws with allen key and feet pads
RF1530100
Thumbnail
x1
Captain Flint White marble baseF1532009
x1
Black plug assembly kit & 48V driverRF6600130
Thumbnail
x1
Captain Flint Switch dimmer 400MaRF26382
Thumbnail
x1
Captain Flint Kit screws with allen key and feet padsRF1530100
