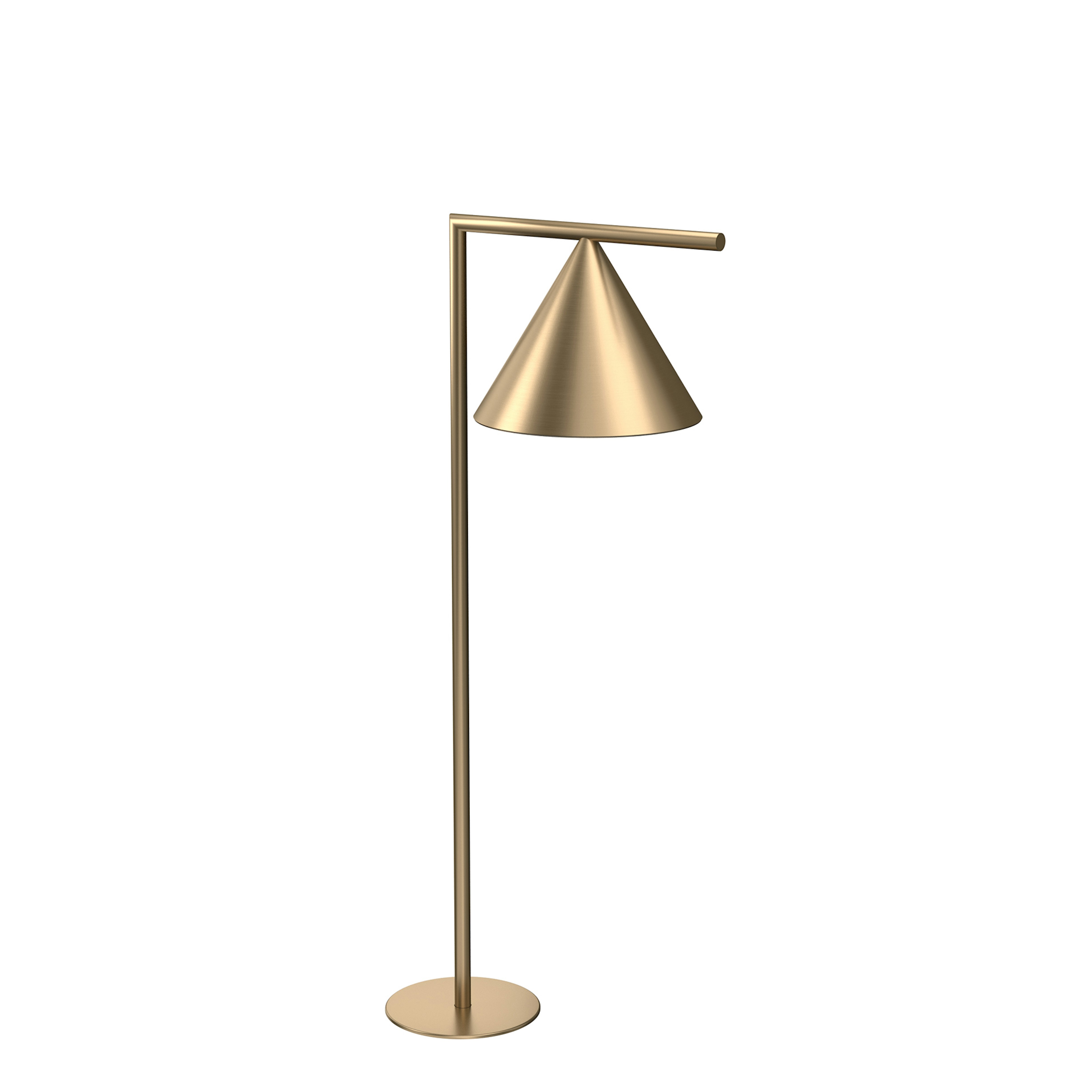

Captain FlintCaptain Flint Outdoor B1
Designed by Michael Anastassiades, 2015
Integrated ON/OFF or dimmable 220-240V power supply. For mains connection, the light source is equipped with watertight cable. Box for ground or cobblestone installations requiring concrete plinth is available upon request. 2200K available on request.
10W - 629lm - 2700K - CRI> 80 - Beam° 112
Technical Drawing
Main specifications
EAN
8054793214931
Mounting
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
10
System power (W)
9.5
Source flux (lm)
989
Lumen Output (lm)
629
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
112
Beam angle C90-270 (º)
112
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Dimmable
Power supply type
Dimming interface
Physical
Colour
Orientation
Transversal tilting (°)
270
Net weight (kg)
2.23
Package height (mm)
1070
Package width (mm)
460
Package length (mm)
320
Package volume (m3)
0.16
IP internal
Dynamic load (kg)
No
