Chasen
F1636009

Chasen

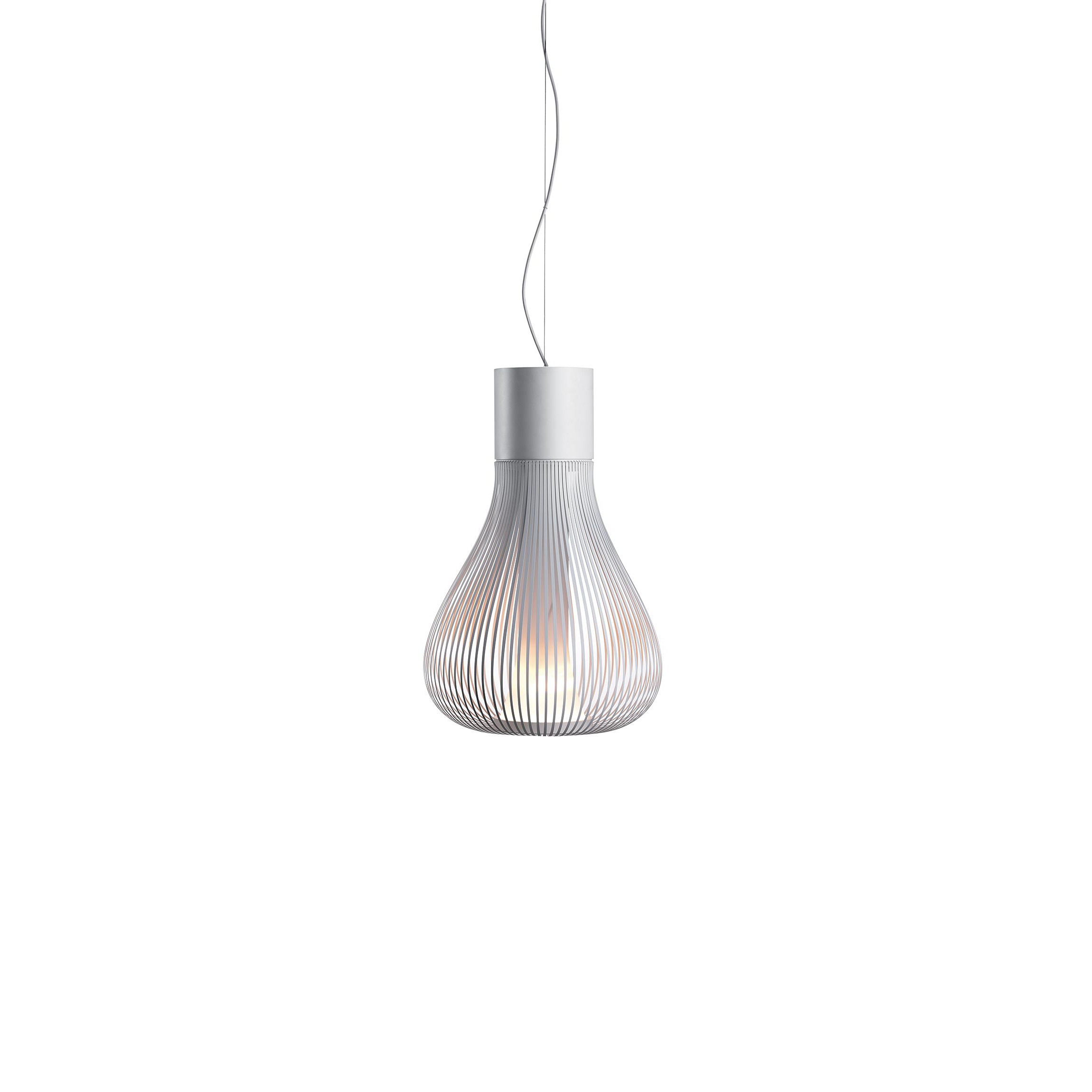

Suspension lamp emitting diffused light. Chemically photo-etched stainless-steel body with liquid paint protection and borosilicate glass diffuser. Die-cast aluminium base with a 30% fibreglass-reinforced polyamide ceiling rose, mounted to a pressed and galvanised steel ceiling fixture. Light emission is adjustable via a mechanical movement that opens or closes the louvres, altering the shape of the luminaire. Steel suspension cable.

Halogen - 16W

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Chasen
Main specifications
EAN
8059607001585
Mounting
Environments
Light source type
Light sources included
Yes
Lamp category
Lamp holders
Ilcos
IPAR
Number of lamps
1
Power (W)
16
Schematic light drawing
F16360_120W_HL_CHASEN_S2_760MM
Photometric
Lighting type
,
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
485
Cord colour
productFields.physical.cordLength
2700
Canopy colour
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
7.6
Package height (mm)
940
Package width (mm)
595
Package length (mm)
595
Package volume (m3)
0.32
IP internal

Download

Tech spec pdf

Technical Drawings

Spare Parts

F1636009-chasen-flos-boom
01. White rose assembly
RA3690209

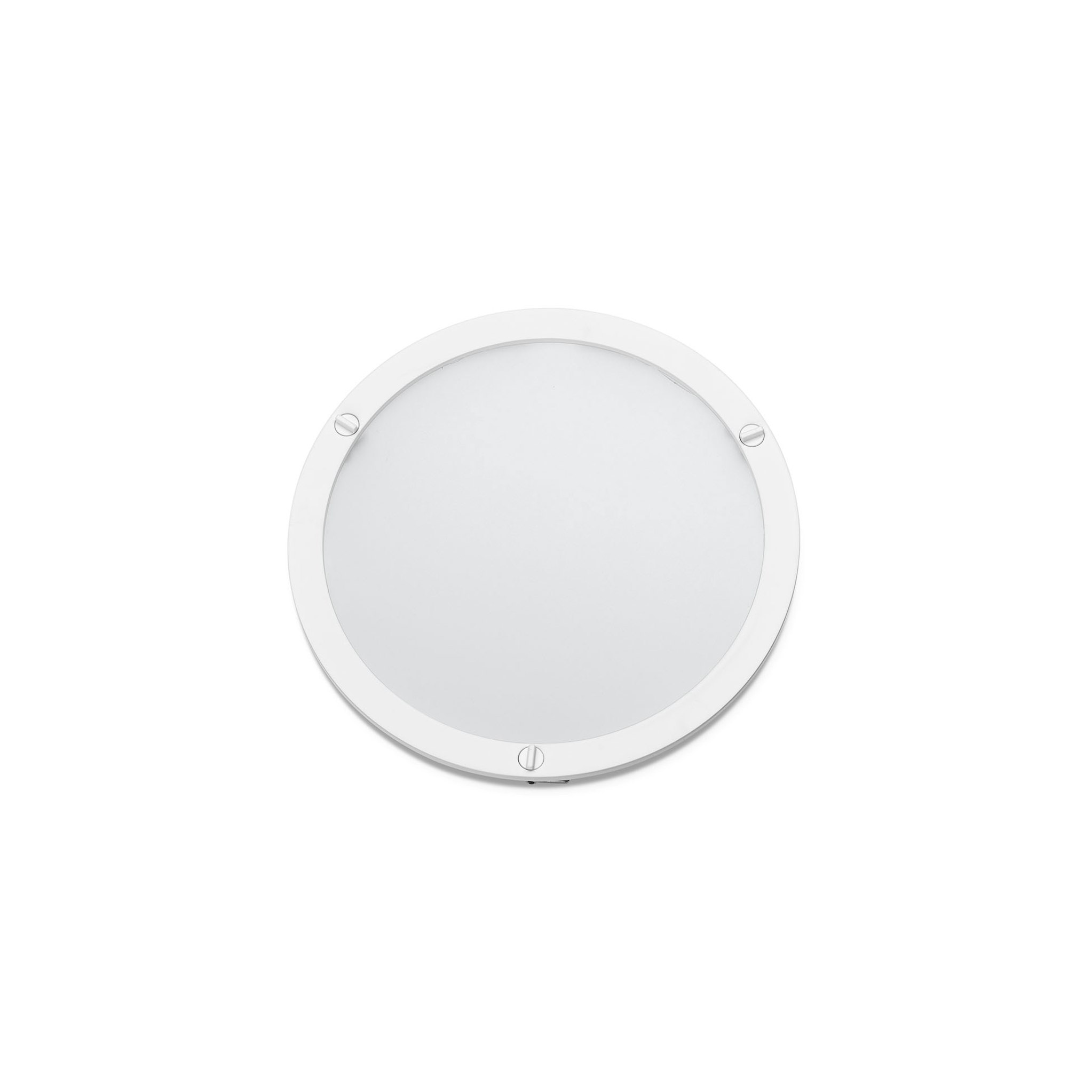

02. Chasen Suspension 2 White diffuser assembly
RF1636009
