Clessidra
F1583018

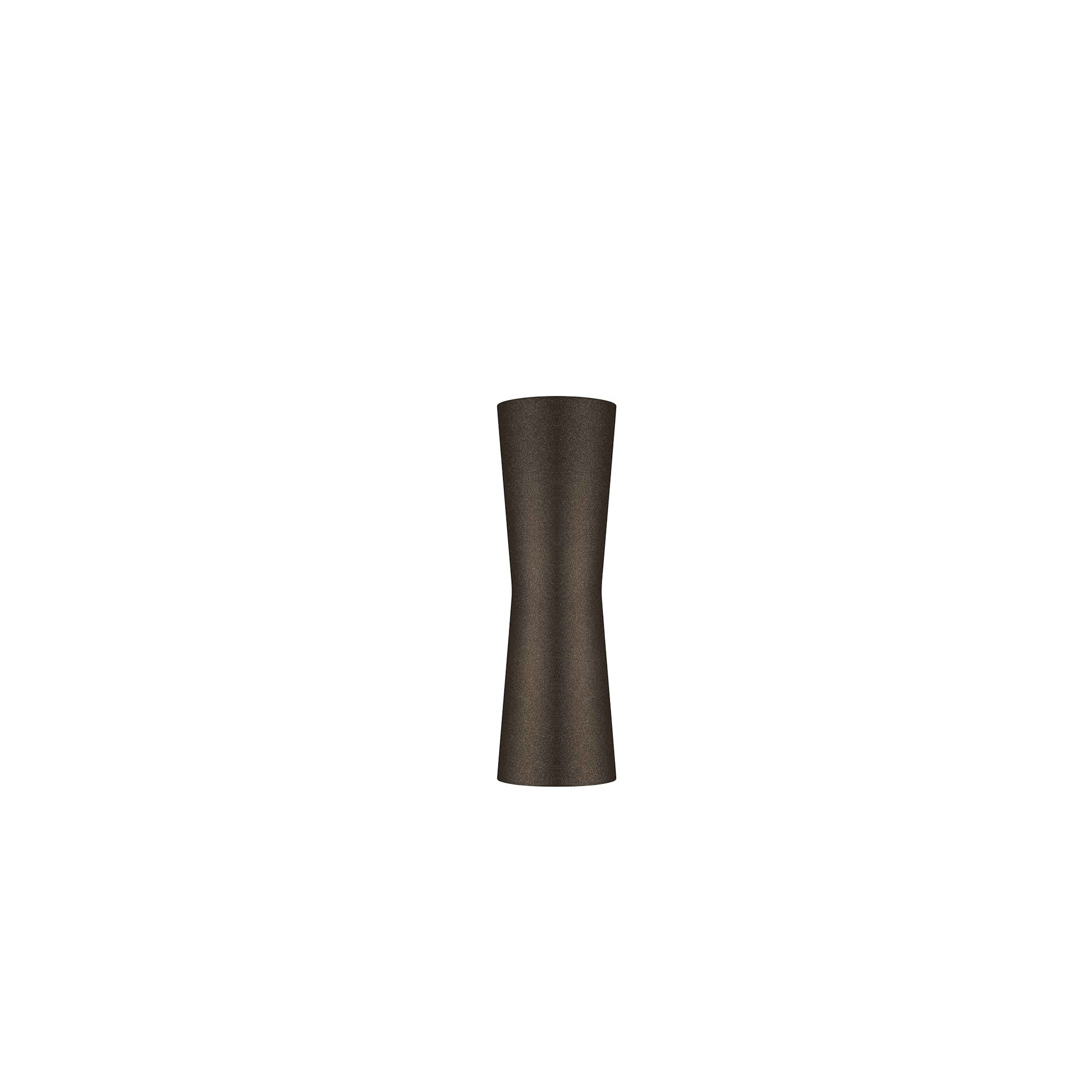

Clessidra 20°+20°

Diffused direct/indirect-light wall lighting device. Body obtained by means of aluminium pressofusion and diffusers in PMMA. Aluminium wall attachment with cover in PA66. Available in white-painted or chrome-plated for indoor version and deep brown-painted or gray-painted for outdoor version. High-efficiency lenses specially designed for the application, non-replaceable. Wide range (100-240Volt) power pack integrated in the body. Level IP55

10W - 637lm - 3000K

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-Clessidra
Main specifications
EAN
8059607001509
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
10
Lumen Output (lm)
637
Schematic light drawing
F15830XXWCLESSIDRA-20_10W-LED
Photometric
Lighting type
,
Light distribution
CCT (K)
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Dimmable
Power supply type
Dimming interface
Batteries inside
No
Charging min time
NO
Physical
Colour
Length (mm)
76
Net weight (kg)
1.2
IP internal

Download

Tech spec pdf
Spare Parts

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

REPLACEABLE2

PWRSUPRPL2

Spare Parts

F1583018-clessidra-outdoor-indoor-flos-boom
01. Clessidra Wall attachment and internal lamp body 20°+20°
F1581030
02. Deep brown external clessidra lamp body
F1580018
03. Screws and tool kit for clessidra external lamp body
RF1580100
Thumbnail
x1
Clessidra Wall attachment and internal lamp body 20°+20°F1581030
Thumbnail
x1

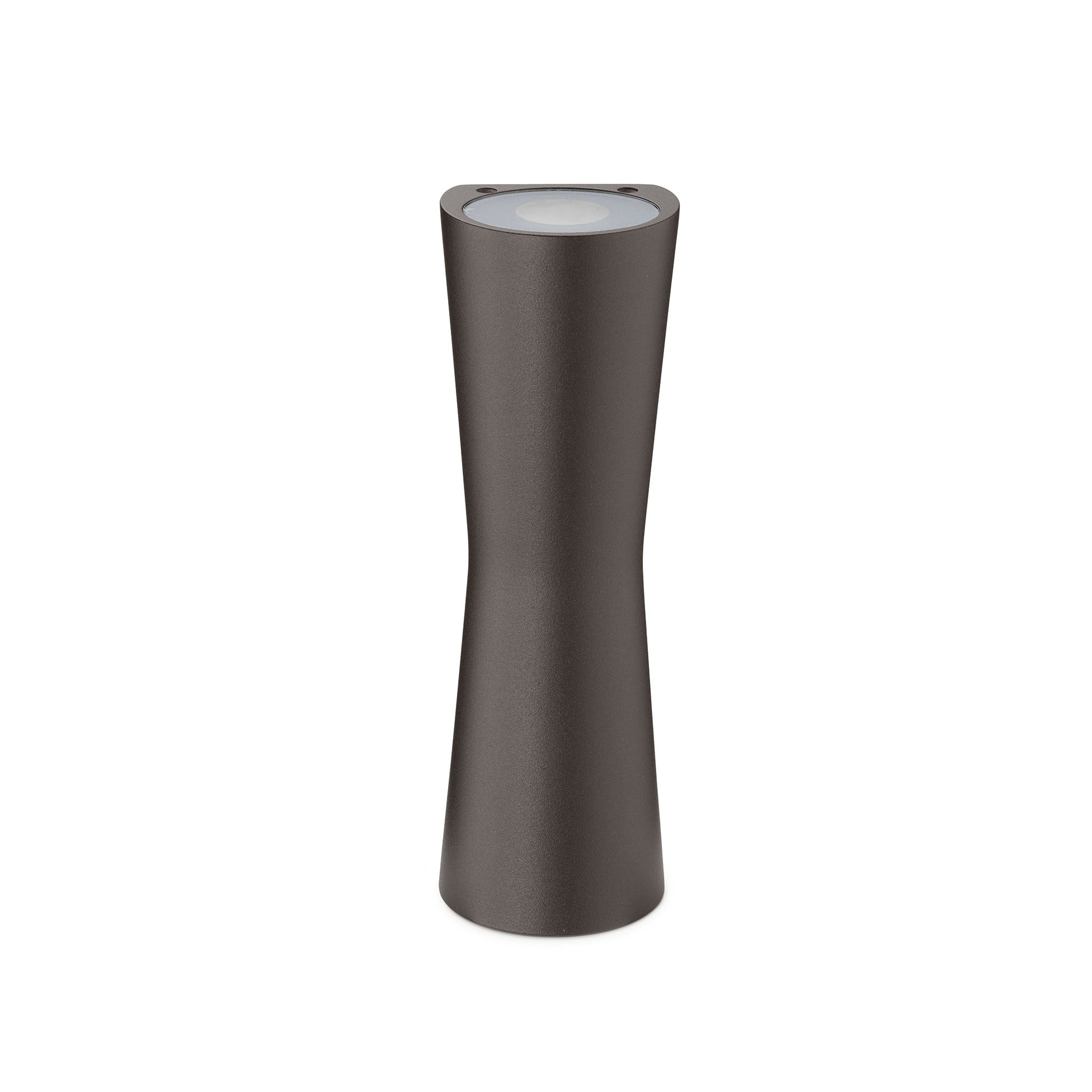

Deep brown external clessidra lamp bodyF1580018
Thumbnail
x1
Screws and tool kit for clessidra external lamp bodyRF1580100
