ACCESSORIES
60.9188

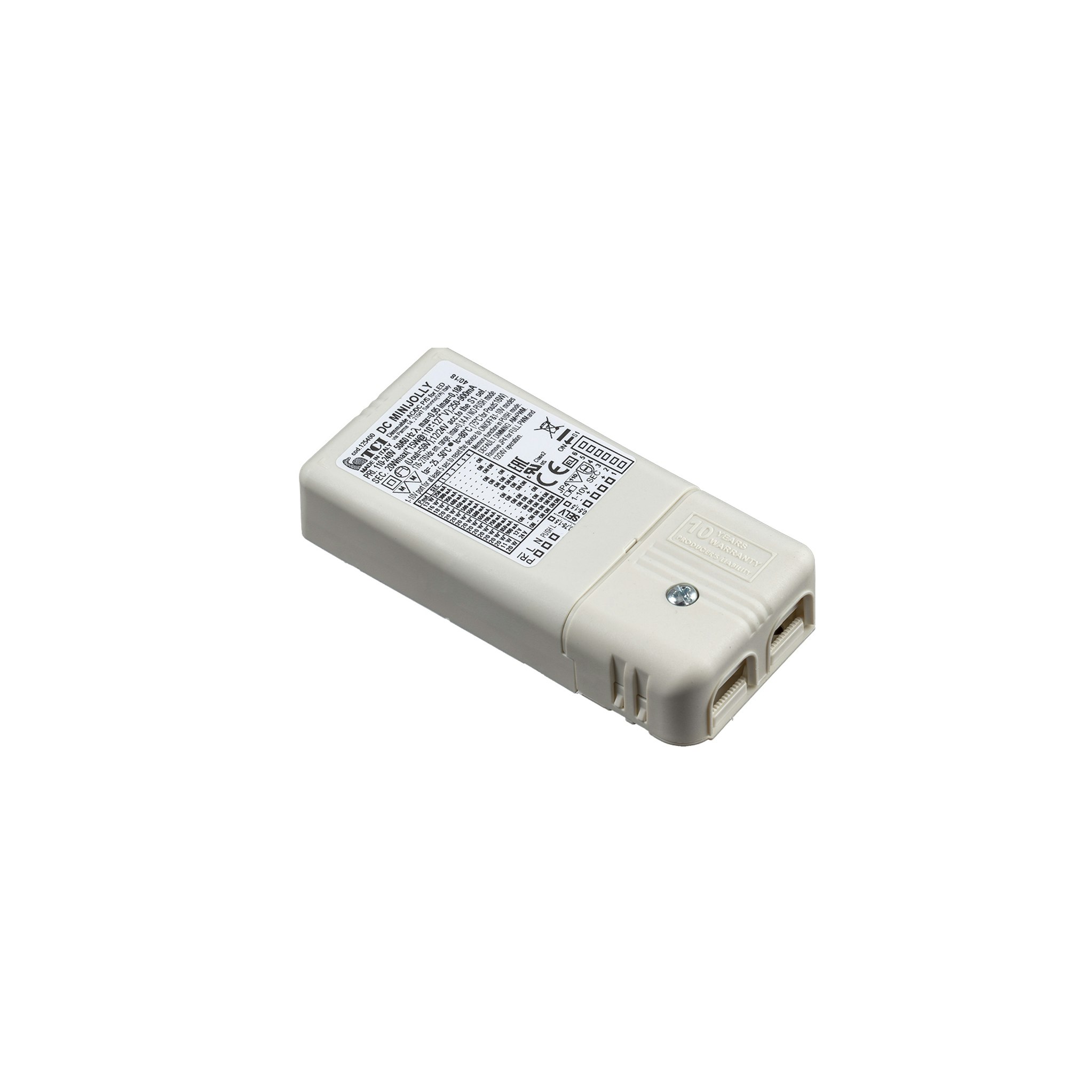

Continuous current power supply of 13-20W, 110*/240V - 50/60Hz with current selected through adjustable 200 mA - 13W / 300 mA - 15W / 350 mA - 18W / 400 / 450 / 500 / 550 / 600 / 650 / 700 / 750 / 800 / 850 / 900 mA - 20W. switch. 0/1-10V or push.

*110V = Max 15W.

Find a Flos store
Technical Drawing
DR_60_9188-DRIVER
Main specifications
Environments
System power (W)
13-20
Photometric
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50-60
Main voltage (Vac)
110-127
LED current (mA)
200-900
Dimmable
Power supply type
, ,
Physical
Length (mm)
111
Net weight (kg)
0.11
Notes

Light regulation 0/1 - 100 % by means of PUSH function, 0/1-10 V local interface (I=0,35 mA) or 100 Kohm potentiometer.

Download

Tech spec pdf
