CoordinatesCoordinates Wall 2
Designed by Michael Anastassiades, 2020

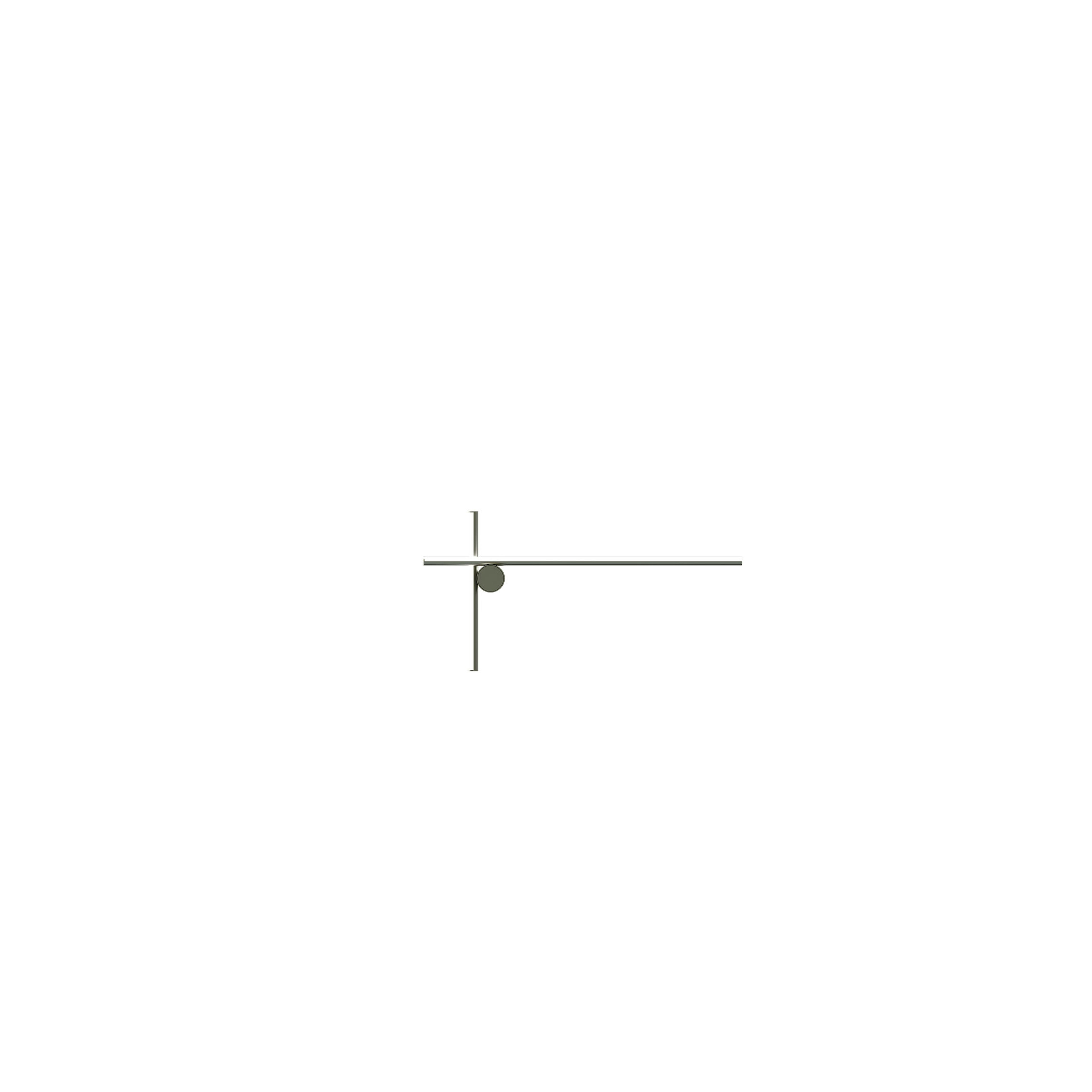

Wall-mounted diffuse lighting device composed of a horizontal bar (model Wall 1) or vertical and horizontal bar (model W2). Each bar is composed of: extruded and processed aluminium body anodized in a champagne or argent colour; diffuser in platinum optical silicone; integrated LED strip (CRI 90). Each model comes with its own rose, whose integrated electronics use only the TRIAC dimmer system.
28W - 1402lm - 2700K - CRI> 90
Also available in:
Technical Drawing
Main specifications
EAN
8059607035313
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
28
System power (W)
28
Lumen Output (lm)
1402
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Dimmable
Power supply type
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
100
Net weight (kg)
1.1
Package height (mm)
145
Package width (mm)
495
Package length (mm)
930
Package volume (m3)
0.07
IP internal
Spare Parts

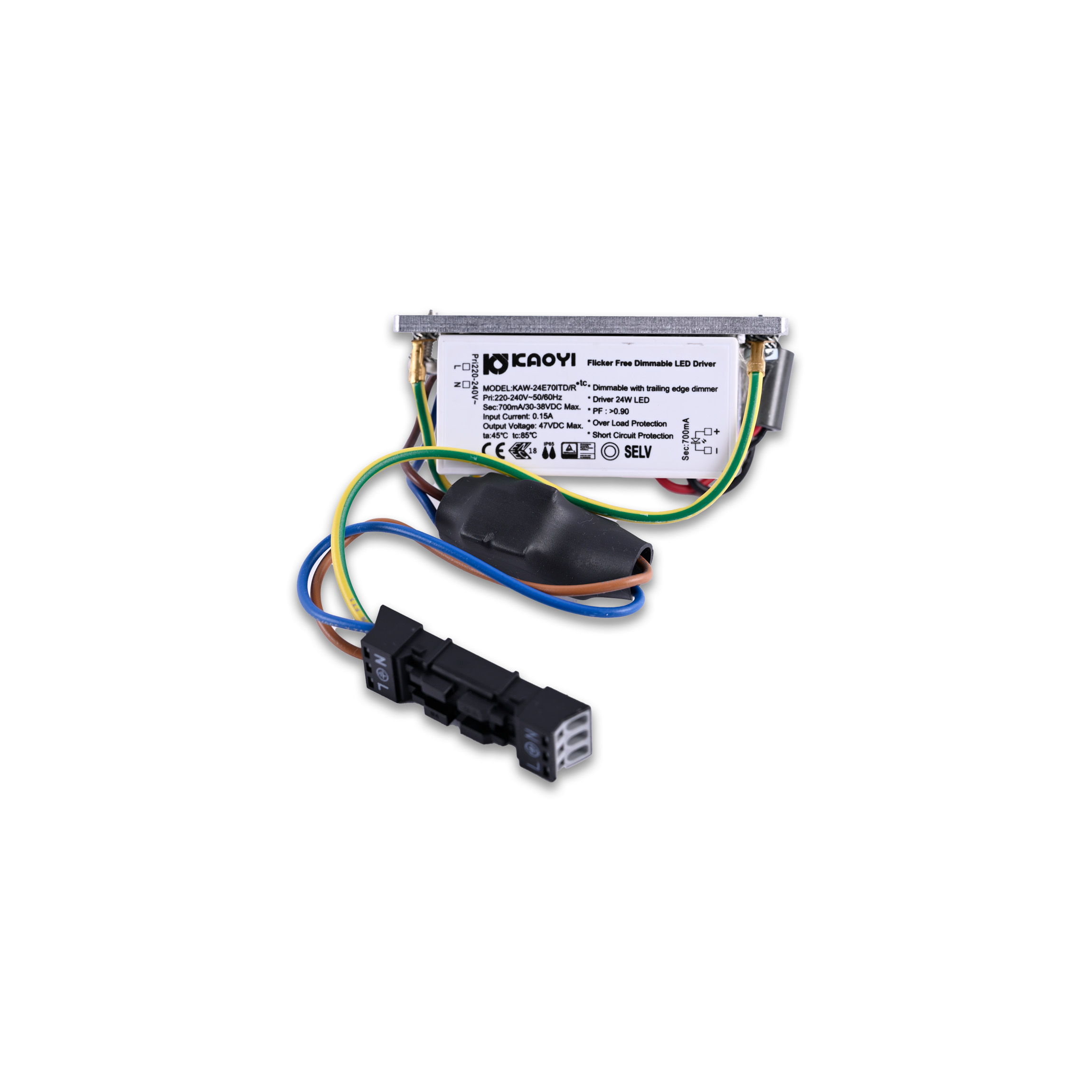

01. Coordinates W2 Power supply assembly – New type
RF37006
