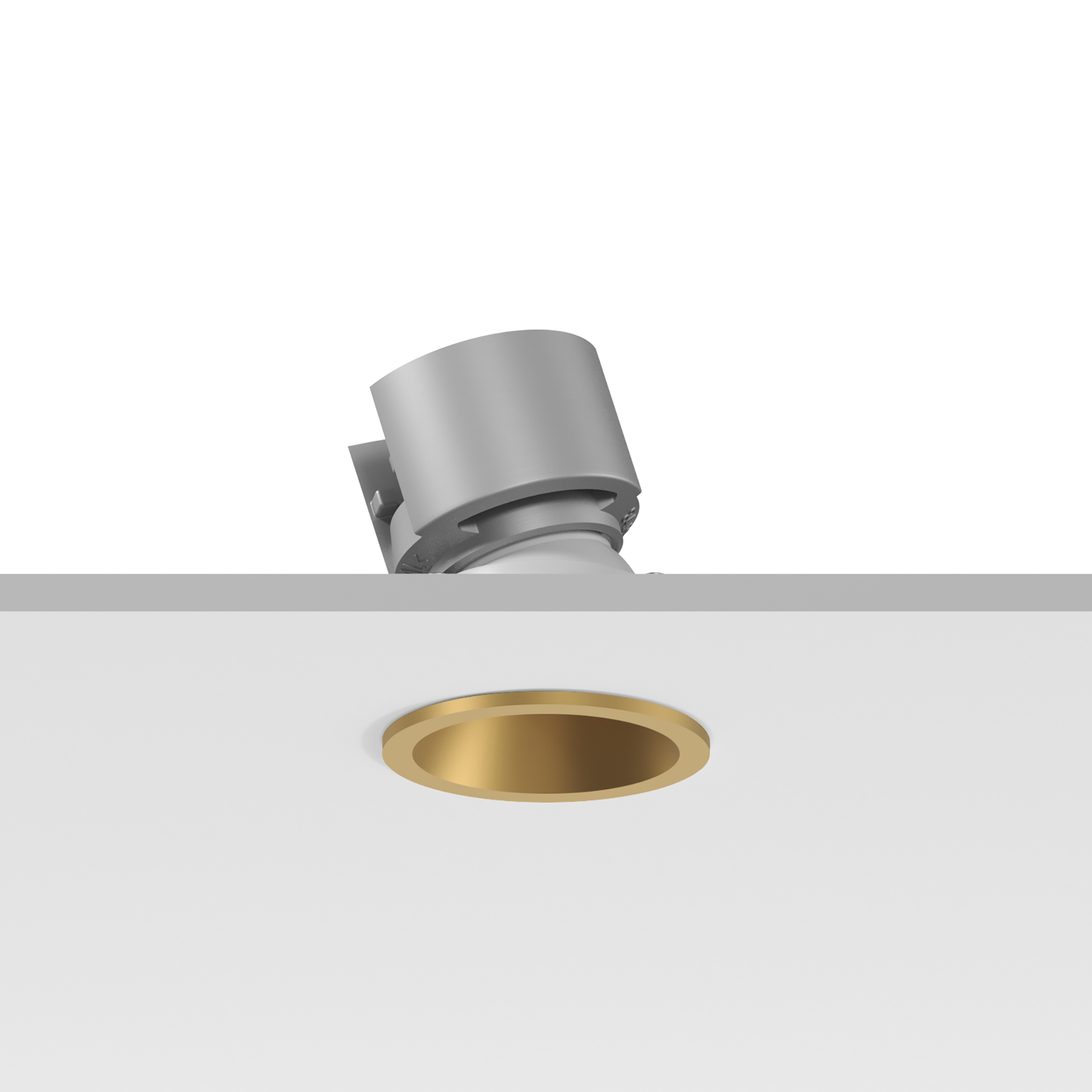

KapEasy Kap Ø30 Adjustable Set of 4 spots
Designed by FLOS Architectural, 2023
Recessed luminaire with LED light source. Power supply not included. Installation frame not required.
LED - Power LED - 4 x 3W - 4 x 201lm - 2700K - CRI> 90 - Beam° 19
Technical Drawing
Main specifications
Mounting
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
4
Power (W)
3
System power (W)
4.7
Source flux (lm)
222
Lumen Output (lm)
201
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
Rf fidelity index
89
Rg gamut index
101
LED Life / Failure Ratio
L90B50>51.000h_Tc85ºC
Beam angle C0-180 (º)
19
Beam angle C90-270 (º)
19
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
Forward voltage (V)
3.3
LED current (mA)
900
Power supply
Power supply type
, , ,
Dimming interface
Physical
Colour
Trim
Yes
Orientation
Longitudinal tilting (°)
17
Transversal tilting (°)
17
Recessed depth (mm)
54
Length (mm)
37
Net weight (kg)
0.14
Package height (mm)
60
Package width (mm)
210
Package length (mm)
130
IP internal
IP external
