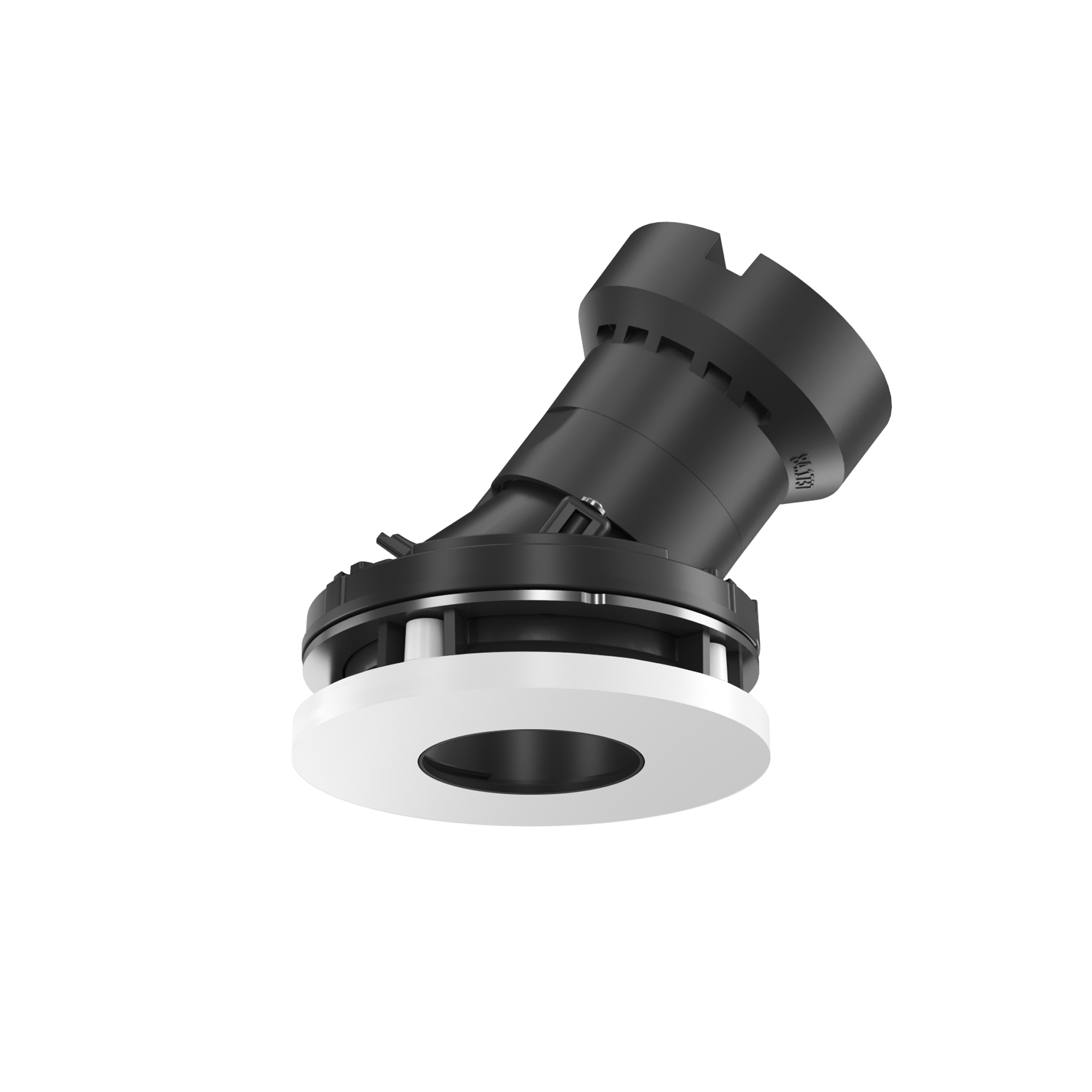

EclecticEclectic 70 Adjustable Flat
Designed by FLOS Architectural, 2022
Eclectic Ø70. Adjustable Downlight (35º tilt, 360º rotation). “Flat” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 55º cut-off angle. IP20 water tightness (for IP54, please ask the dedicated accessory). Alternative options for lenses, orientation modules and style façades are available as spare parts.
7.5W - 560lm - 3000K - CRI> 90 - Beam° 35
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
7.5
System power (W)
9.9
Lumen Output (lm)
560
Efficacy (lm/W)
75
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
2
Rf fidelity index
92
Rg gamut index
98
LED Life / Failure Ratio
L70B50>55.000h_Tc=85°C
Beam angle C0-180 (º)
35
Beam angle C90-270 (º)
35
UGRL
<10
Electrical
Insulation class
LED current (mA)
600
Power supply
Dimmable
Power supply type
, , , , ,
Physical
Colour
Orientation
Recessed depth (mm)
134
Spot diameter (mm)
75
Length (mm)
75
Net weight (kg)
0.16
Package height (mm)
90
Package width (mm)
140
Package length (mm)
105
IP internal
Accessories & Power Supply
Spare Parts
. Spot Lens for Eclectic 70
08.0711.00
. Medium Lens for Eclectic 70
08.0712.00
. Flood Lens for Eclectic 70
08.0713.00
. Cone Frontal for Eclectic 70
08.0721.14
. Cone Frontal for Eclectic 70
08.0721.40
. Soft Frontal for Eclectic 70
08.0722.14
. Soft Frontal for Eclectic 70
08.0722.40
. Flat Frontal for Eclectic 70
08.0723.14
. Flat Frontal for Eclectic 70
08.0723.40
. Module Fix for Eclectic 70
08.0739.00
. Module Adjustable for Eclectic 70
08.0740.00
