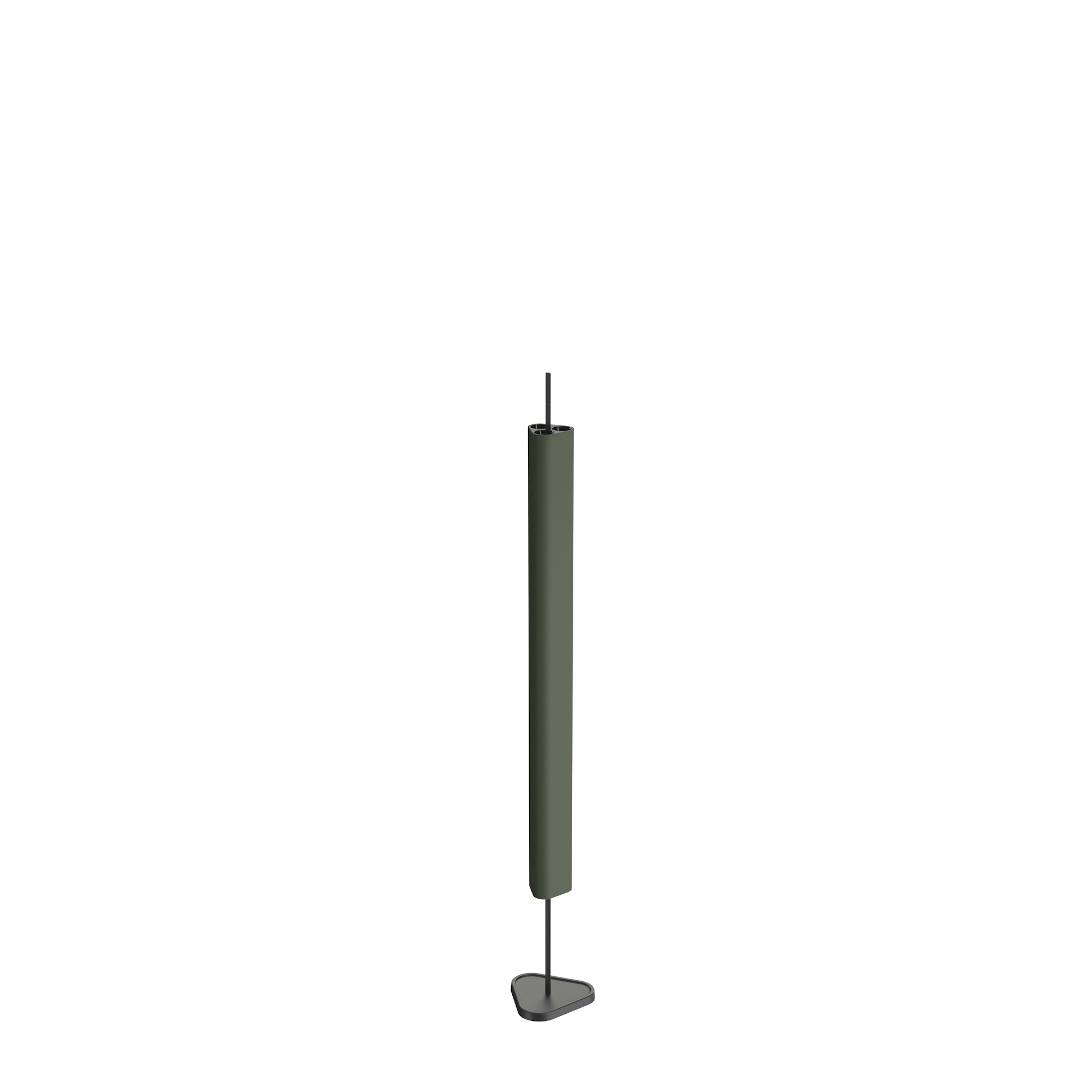

EmiEmi Floor
Designed by Erwan Bouroullec, 2023
Anti-glare appliance for installation on the floor. Built-in 220-240 V power supply, with cable and plug. Spare parts for the optical module (lens) are available, please see the accessories. Independent control of the Up&Down lighting through Touch Dimming capacitive sensors in the top part of the central rod.
LED - LED array - 47.5W - 3244lm - 2700K - CRI> 90 - Beam° 32
Technical Drawing
Main specifications
EAN
8424229003291
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
47.5
System power (W)
51.5
Source flux (lm)
4801
Lumen Output (lm)
3244
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
Rf fidelity index
89
Rg gamut index
101
LED Life / Failure Ratio
L80B50>60.000h_Tc85ºC
Beam angle C0-180 (º)
32
Beam angle C90-270 (º)
32
Extreme cut off
Yes
UGRL
<16
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
110-240
LED current (mA)
940
Power supply
Dimmable
Dimming range (%)
1-100
Dimming interface
Plug type
Physical
Colour
Orientation
Cord colour
productFields.physical.cordLength
1950
Net weight (kg)
14.55
IP internal
Notes
Gross luminous flux:
UpLigh - 3714 lm
DownLight - 1087 lm
Net luminous flux:
UpLigh - 2559 lm
DownLight - 685 lm
