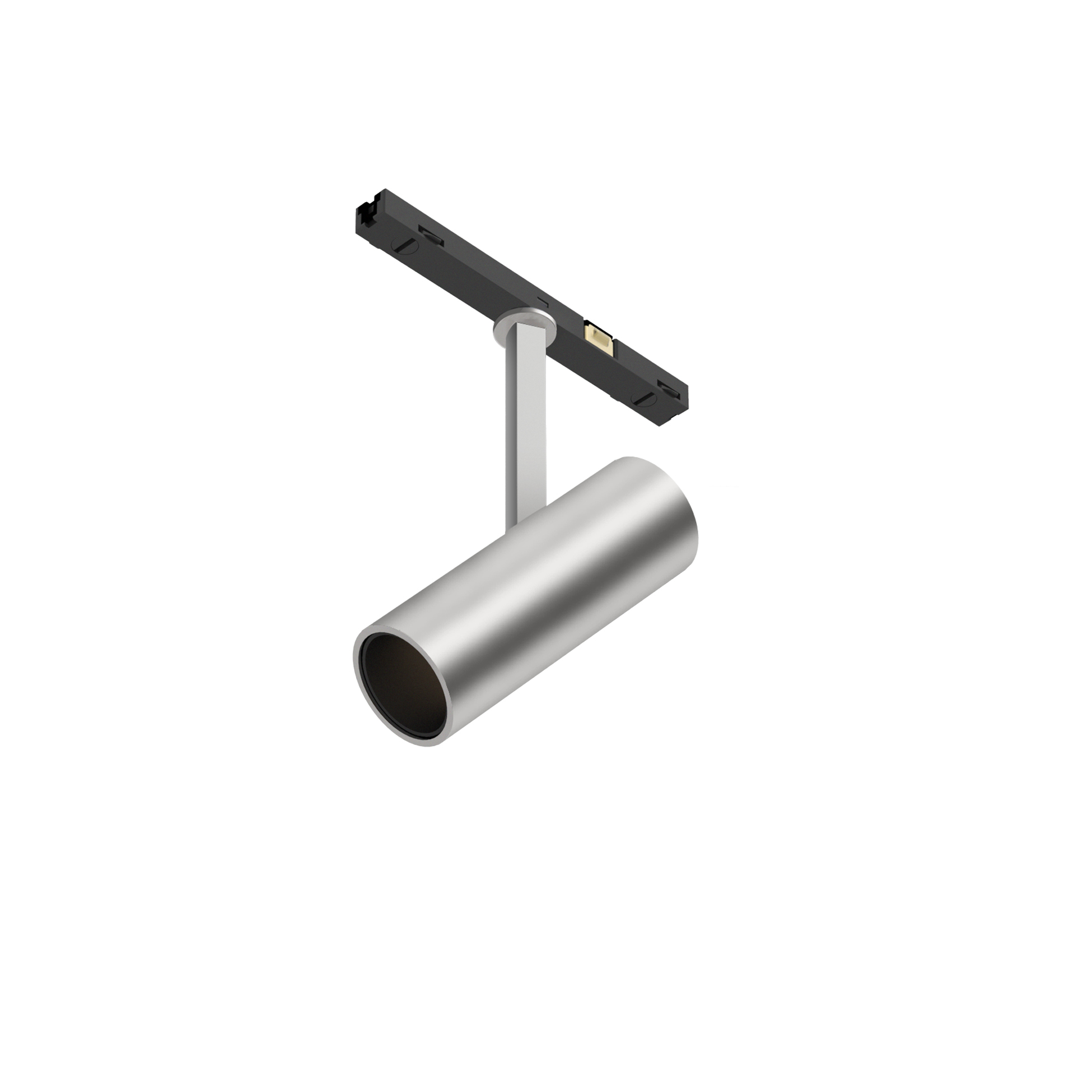

Thumbnail
Related to
Zero Track & Pro
09.3801.05A

Find Me 0

Accent lighting LED module to be installed in the Zero Track system. Incorporated DC/DC electronic converter. Module non-dimmable. To individually control the lights, select integrated Casambi versions.

3.5W - 155lm - 2700K - CRI> 90 - Beam° 15

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-System-Zero_Track-Find_Me_0
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
3.5
Source flux (lm)
300
Lumen Output (lm)
155
Efficacy (lm/W)
45
Schematic light drawing
EU_09_3801_06AXXW3.5
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
LED Life / Failure Ratio
L80B50>50.000h (Tc=85ºC)
Beam angle C0-180 (º)
15
Beam angle C90-270 (º)
15
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
Forward voltage (V)
24
LED current (mA)
250
Power supply
Dimmable
Power supply type
Physical
Colour
Trim
No
Orientation
Rotation (º)
360
Longitudinal tilting (°)
90
Spot diameter (mm)
24
Net weight (kg)
0.06
IP internal
Notes

Accessories included (honeycomb and screening crosspiece).
