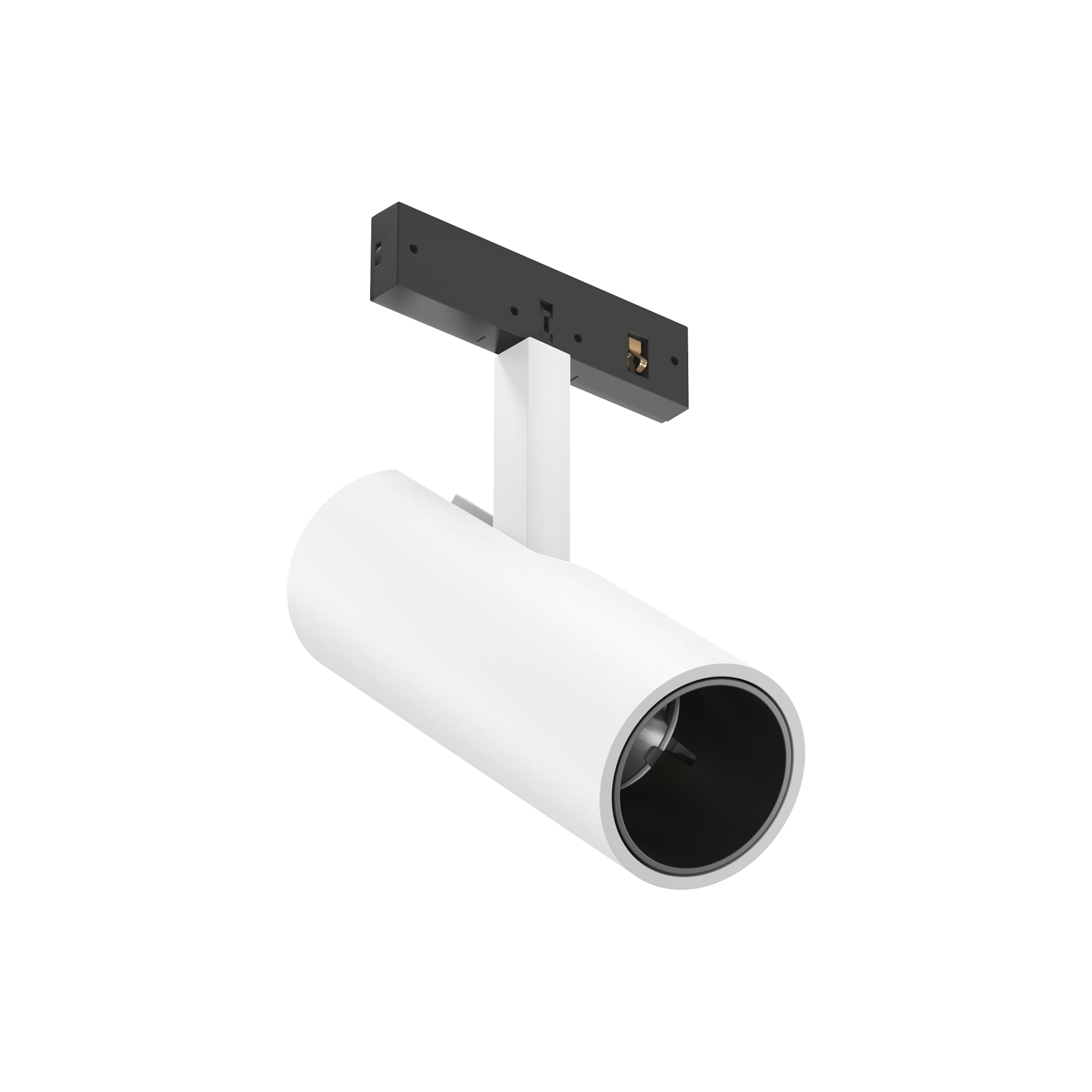

The Micro Running MagnetFind Me 0 Casambi integrated
Designed by Jorge Herrera, 2022
LED accent lighting module to be installed in the Micro Running Magnet system. Incorporated DC/DC electronic converter. Casambi via Flos Control App to individually control the lights.
3W - 179lm - 2700K - CRI> 90 - Beam° 25
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
3
System power (W)
3.5
Source flux (lm)
249
Lumen Output (lm)
179
Efficacy (lm/W)
51
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
Rf fidelity index
92
Rg gamut index
97
LED Life / Failure Ratio
L95B11 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
25
Beam angle C90-270 (º)
25
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
Forward voltage (V)
24
LED current (mA)
250
Power supply
Dimmable
Dimming range (%)
1-100
Physical
Colour
Orientation
Rotation (º)
360
Longitudinal tilting (°)
90
Spot diameter (mm)
24
Length (mm)
41
Net weight (kg)
0.06
IP internal
Notes
Accessories included (honeycomb and screening crosspiece). The control system for the Casambi version of the light fixtures is directly and individually regulated wirelessly using the FLOS Control® powered by Casambi application. Other types of regulation operate in broadcast mode (all lights are regulated at the same time). The Casambi module is integrated within the fixture and works with a 24V non-dimmable power supply connected directly to the track.
