05.5130.40.DA

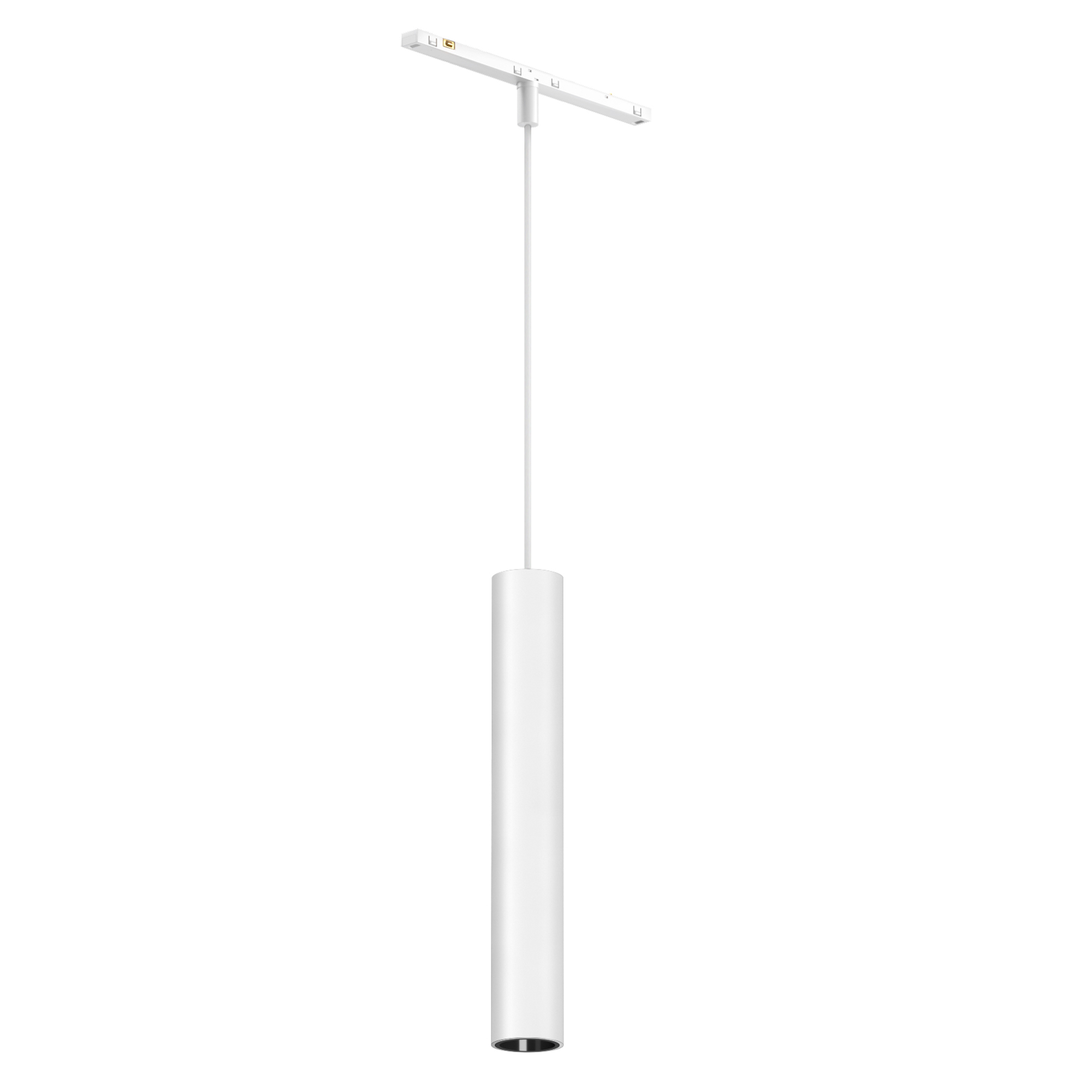

Find Me 1 Suspension Dali Dimmable

LED projection lighting module for installation in the Zero Track Pro system. Electronic DC/DC converter incorporated. Individual control via DALI protocol and broadcast mode via 1-10V. Cannot be installed on vertical tracks. Accessories included (honeycomb grid and protection bar).

5.5W - 309lm - 2700K - CRI> 90 - Beam° 14

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-System-Zero_Track_Pro-Find_Me_1_Suspension-Dimmable_1_10V_Dimmable_DALI_2
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
5.5
Source flux (lm)
432
Lumen Output (lm)
309
Efficacy (lm/W)
57
Schematic light drawing
EU_05_5130_XX_XXW5.5
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
2
Beam angle C0-180 (º)
14
Beam angle C90-270 (º)
14
UGRL
<10
Electrical
Insulation class
Forward voltage (V)
24
LED current (mA)
400
Power supply
Dimmable
Power supply type
Dimming range (%)
1-100
Dimming interface
Physical
Colour
Orientation
Net weight (kg)
0.3
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

REPLACEABLE3

PWRSUPRPL2
