Zero Track & Pro
05.5122.ER.1V

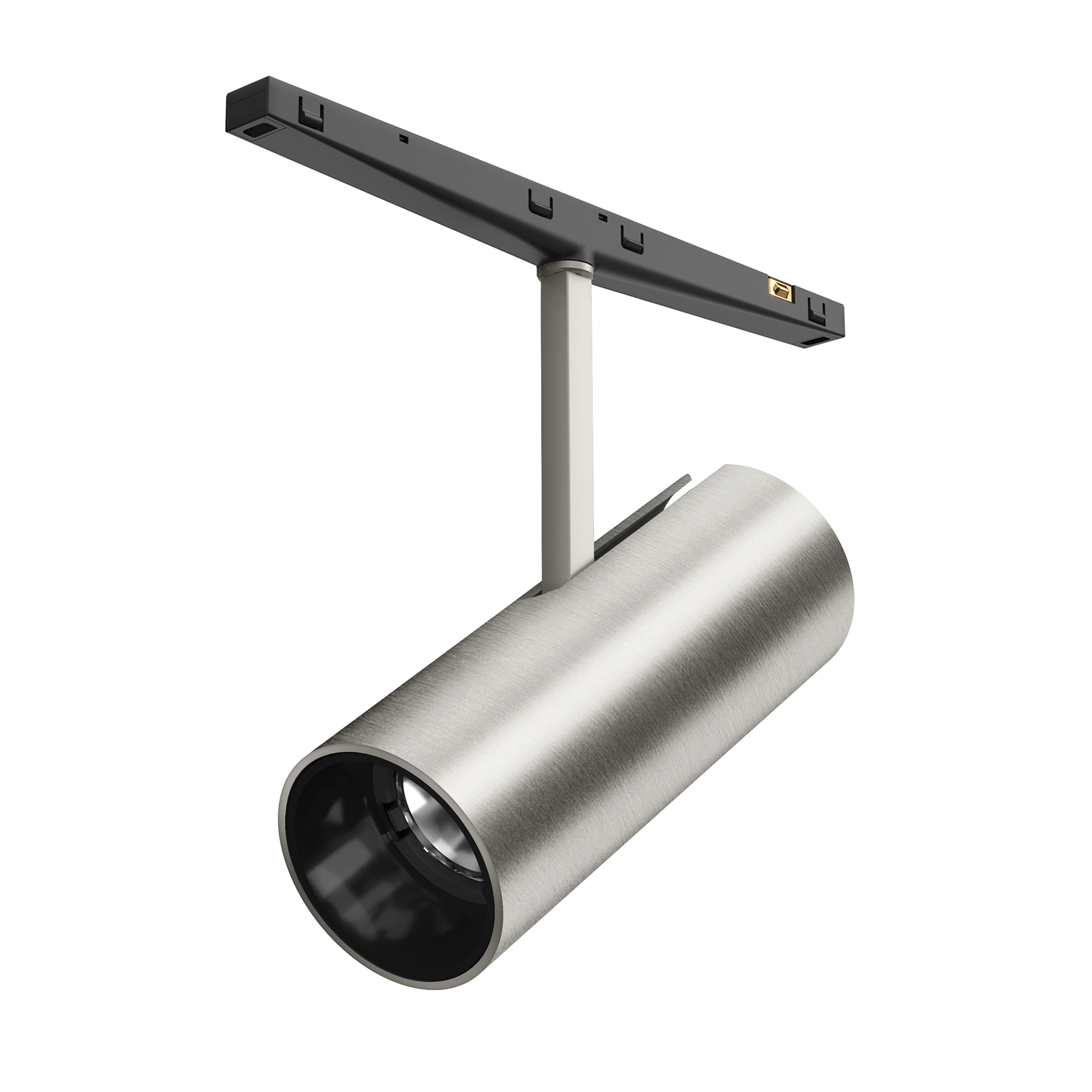

Find Me 2 1-10V Dimmable

LED projection lighting module for installation in the Zero Track Pro system. Electronic DC/DC converter incorporated. Individual wireless adjustment via Casambi. Casambi control implemented via the FLOS Control® app for mobile devices (available in the Apple Store and Google Play). Accessories included (honeycomb grid and protection bar).

10.5W - 364lm - 2700K - CRI> 90 - Beam° 32

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-System-Zero_Track_Pro-Find_Me_2-Dimmable_1_10V_Dimmable_DALI_2
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
10.5
Source flux (lm)
724
Lumen Output (lm)
364
Schematic light drawing
EU_05_5122_XX_XXW10.5
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
2
Beam angle C0-180 (º)
32
Beam angle C90-270 (º)
32
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
Forward voltage (V)
24
LED current (mA)
760
Power supply
Dimmable
Power supply type
Dimming interface
Physical
Colour
Orientation
Rotation (º)
360
Longitudinal tilting (°)
90
Net weight (kg)
0.3
IP internal
