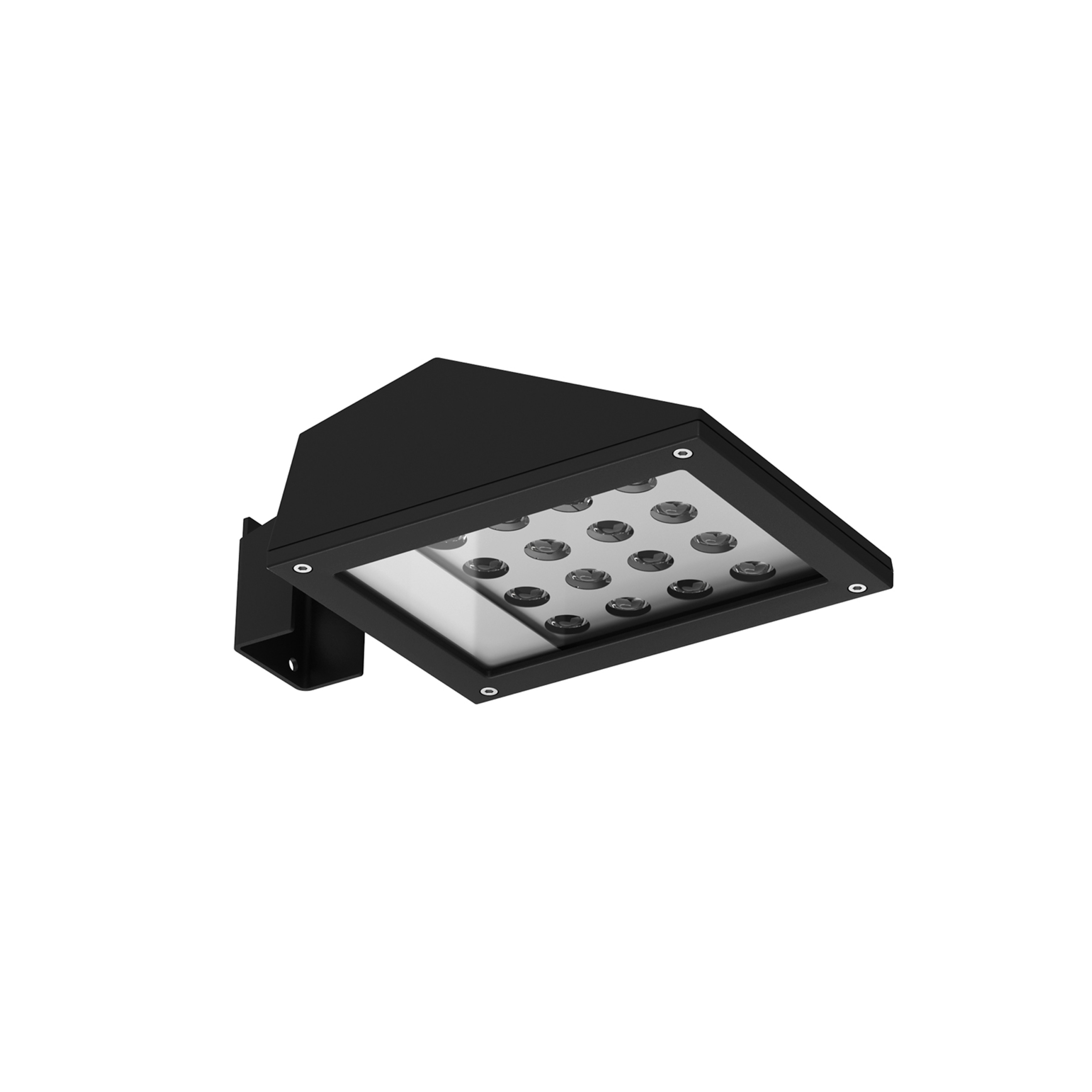

FrancoFranco 1 Power Led Symmetric Optic
Designed by FLOS Outdoor, 2007

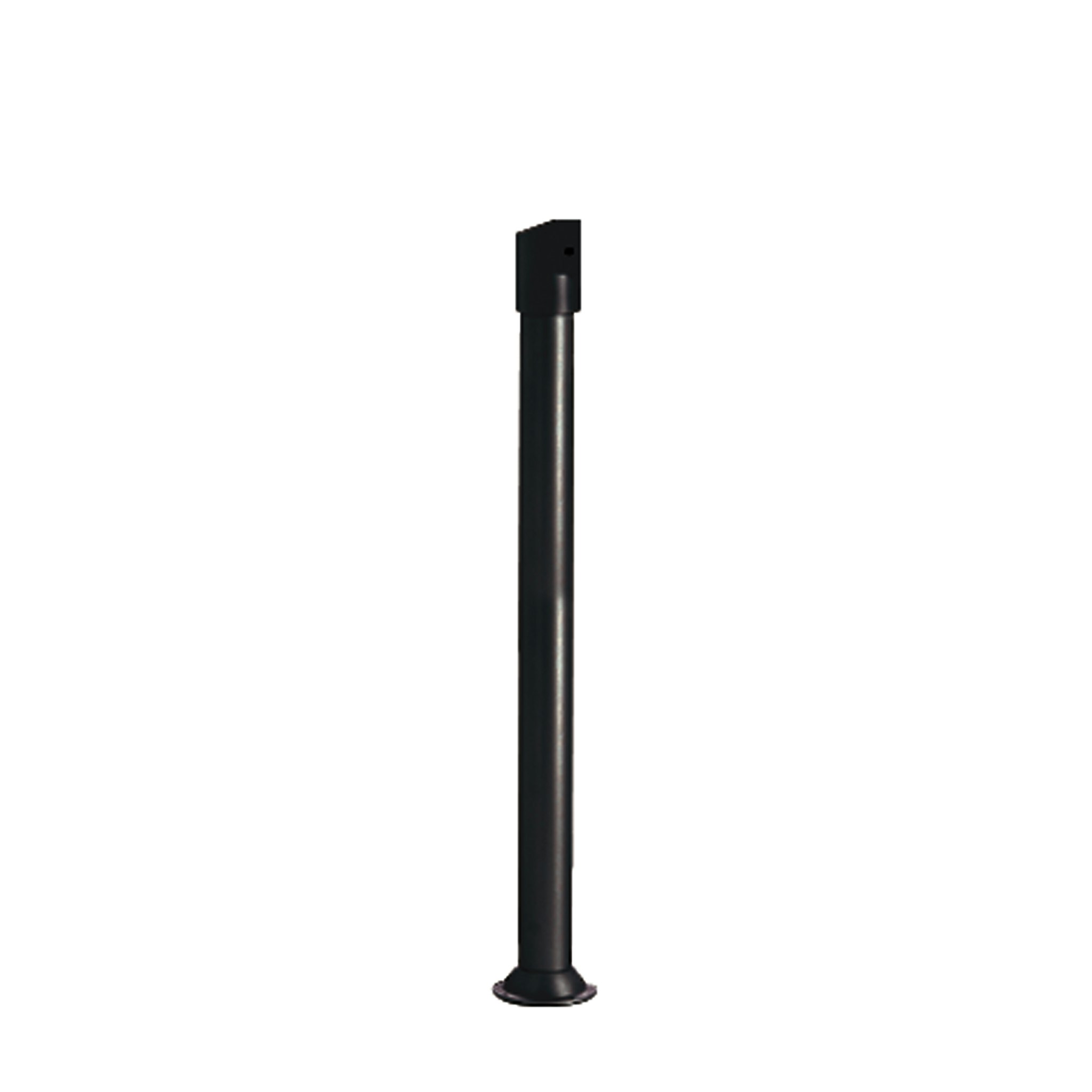

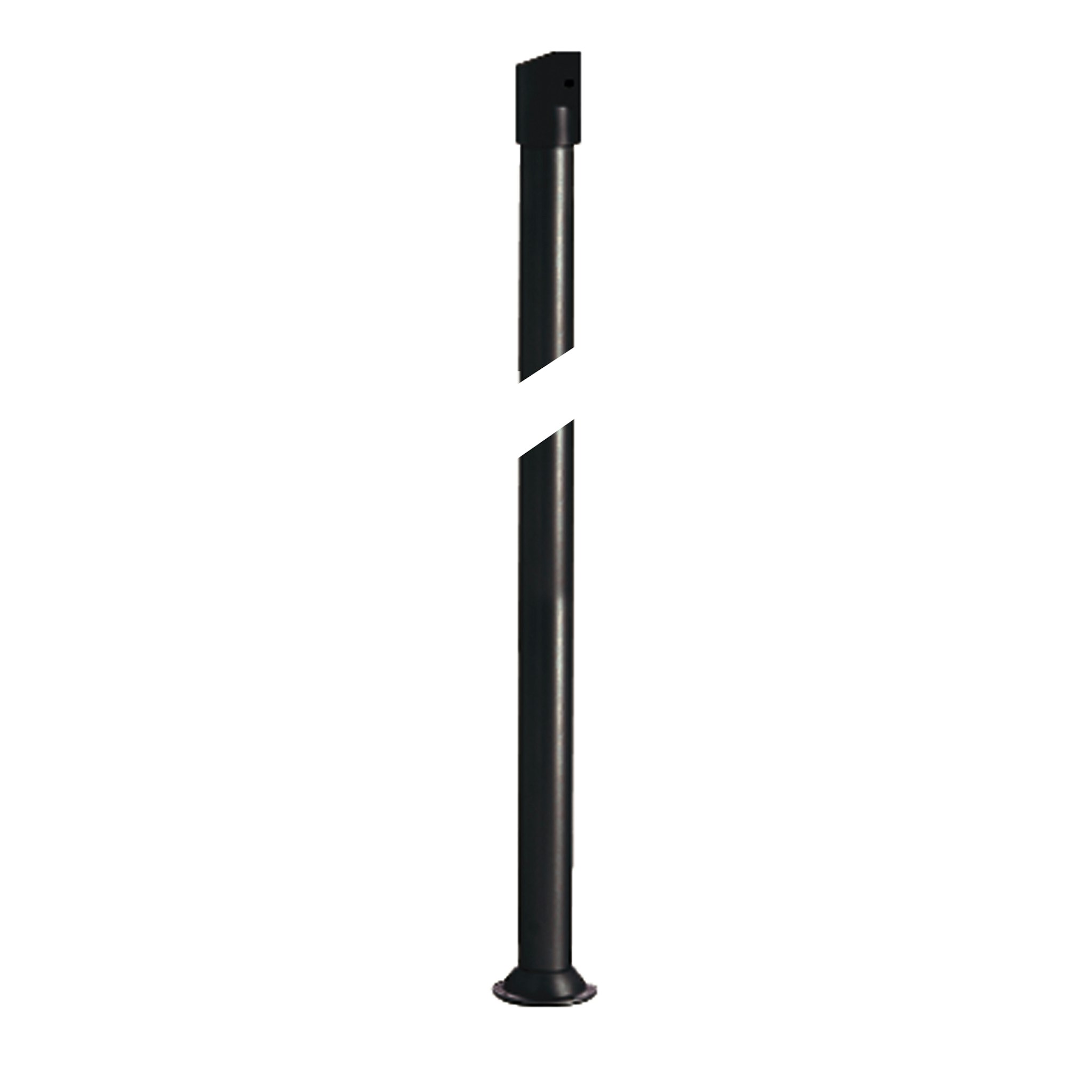

LED source included. Integrated electrical power supply 220-240V ON- OFF. Fixing bracket included. Equipped with a M16x1.5 cable guide (for 4.5mm<ø<10mm cables) and IP68 connector. To ensure the tightness of the cable guide it's recommended to use flexible electric cables suitable for exterior use. Optional accessories: posts; mounts and arms to install as a mast; protruding arm for wall mounting.
20W - 1543lm - 4000K - CRI> 80 - Beam° 12
Technical Drawing
Main specifications
EAN
8054793619965
Mounting
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
20
System power (W)
20
Source flux (lm)
1987
Lumen Output (lm)
1543
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
12
Beam angle C90-270 (º)
12
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Dimmable
Power supply type
Dimming interface
Emergency
No
Physical
Colour
Orientation
Longitudinal tilting (°)
103
Net weight (kg)
2.2
Package height (mm)
130
Package width (mm)
190
Package length (mm)
315
Package volume (m3)
0.01
IP internal
Dynamic load (kg)
No
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
