Franco

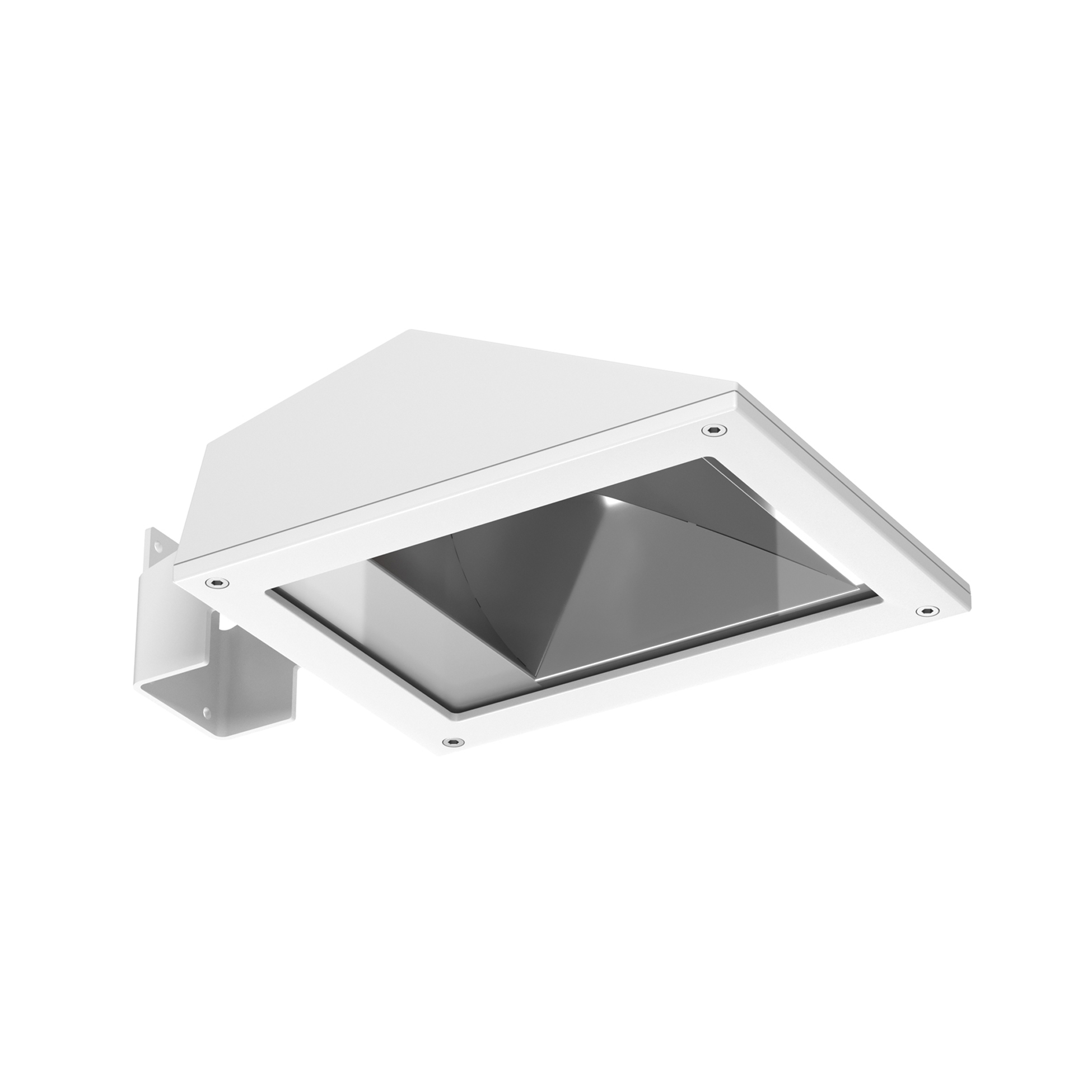

FA962831401.AWhiteFranco 2 CoB Led Asymmetric Optic
Designed by FLOS Outdoor, 2007
LED source included. Integrated electrical power supply 220-240V ON/OFF. Graduated fixing bracket included. Equipped with a M20x1.5 cable guide (for 7mm<ø<13mm cables) and IP68 connector. To ensure the tightness of the cable guide it's recommended to use flexible electric cables suitable for exterior use. Optional accessories: posts and arms for mast mounting.
43W - 2847lm - 3000K - CRI> 80
Technical Drawing
Main specifications
EAN
8054793699134
Mounting
Ground
Light source type
LED
Light sources included
Yes
LED type
LED array
Number of lamps
1
Power (W)
43
System power (W)
43
Source flux (lm)
5423
Lumen Output (lm)
2847
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
3000
CRI>
80
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
No
Power supply type
Non Dimmable
Dimming interface
Not Dimmable
Emergency
No
Physical
Colour
White
Orientation
Adjustable
Longitudinal tilting (°)
113
Net weight (kg)
4.22
Package height (mm)
145
Package width (mm)
260
Package length (mm)
430
Package volume (m3)
0.02
IP internal
65
Drive Over
No
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
