FrisbiFrisbi
Designed by Achille Castiglioni, 1978

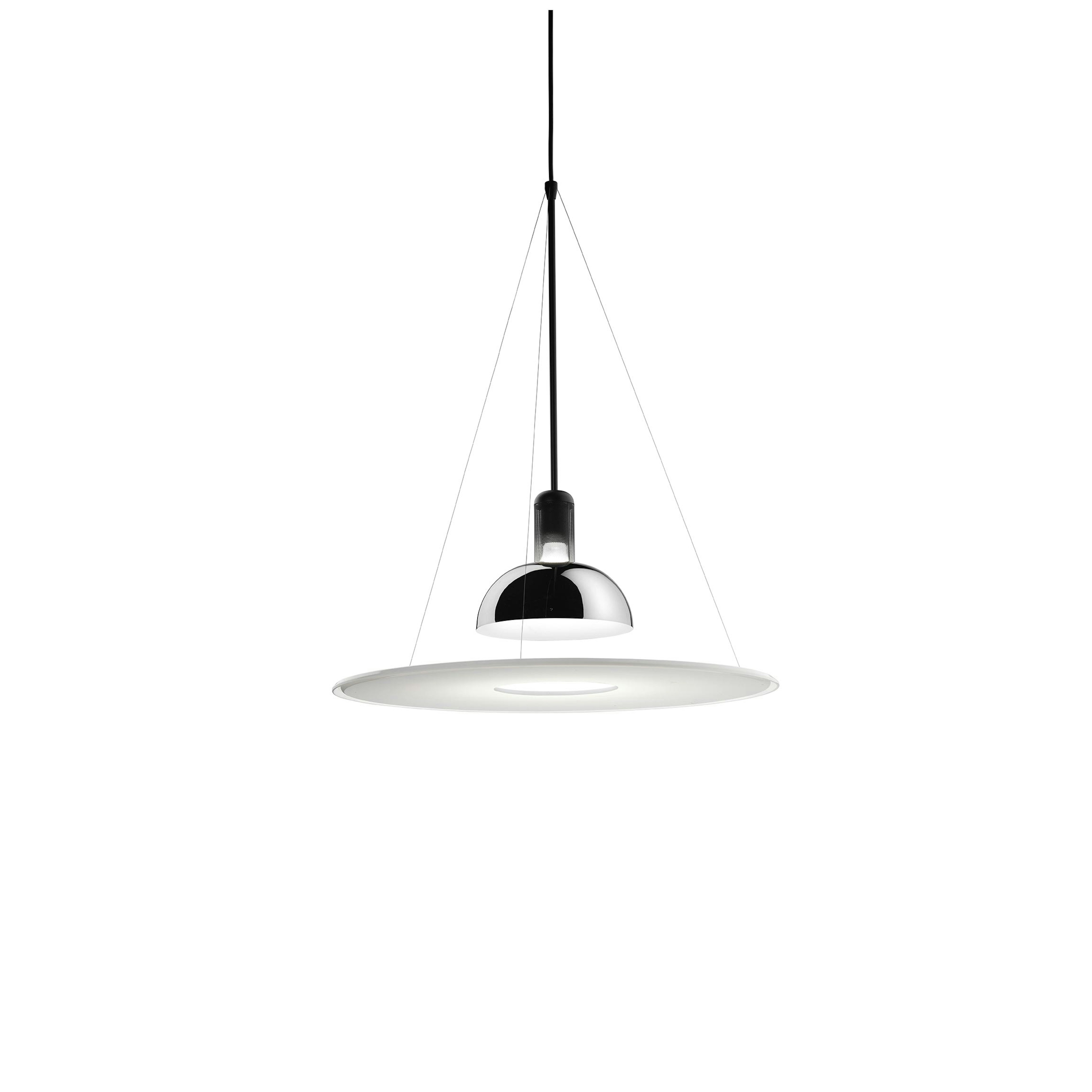

Suspension lamp providing direct, diffused and reflected light. Opaline polymethylmethacrylate (PMMA) injection-molded diffuser plate suspended by three fine steel cables. Polished, nickel-plated, and zapon-varnished stamped sheet metal reflector painted gloss-white inside. Black painted, injection-molded ABS ceiling fitting and rose.
Halogen - 105W
Technical Drawing
Main specifications
EAN
8059607016206
Mounting
Environments

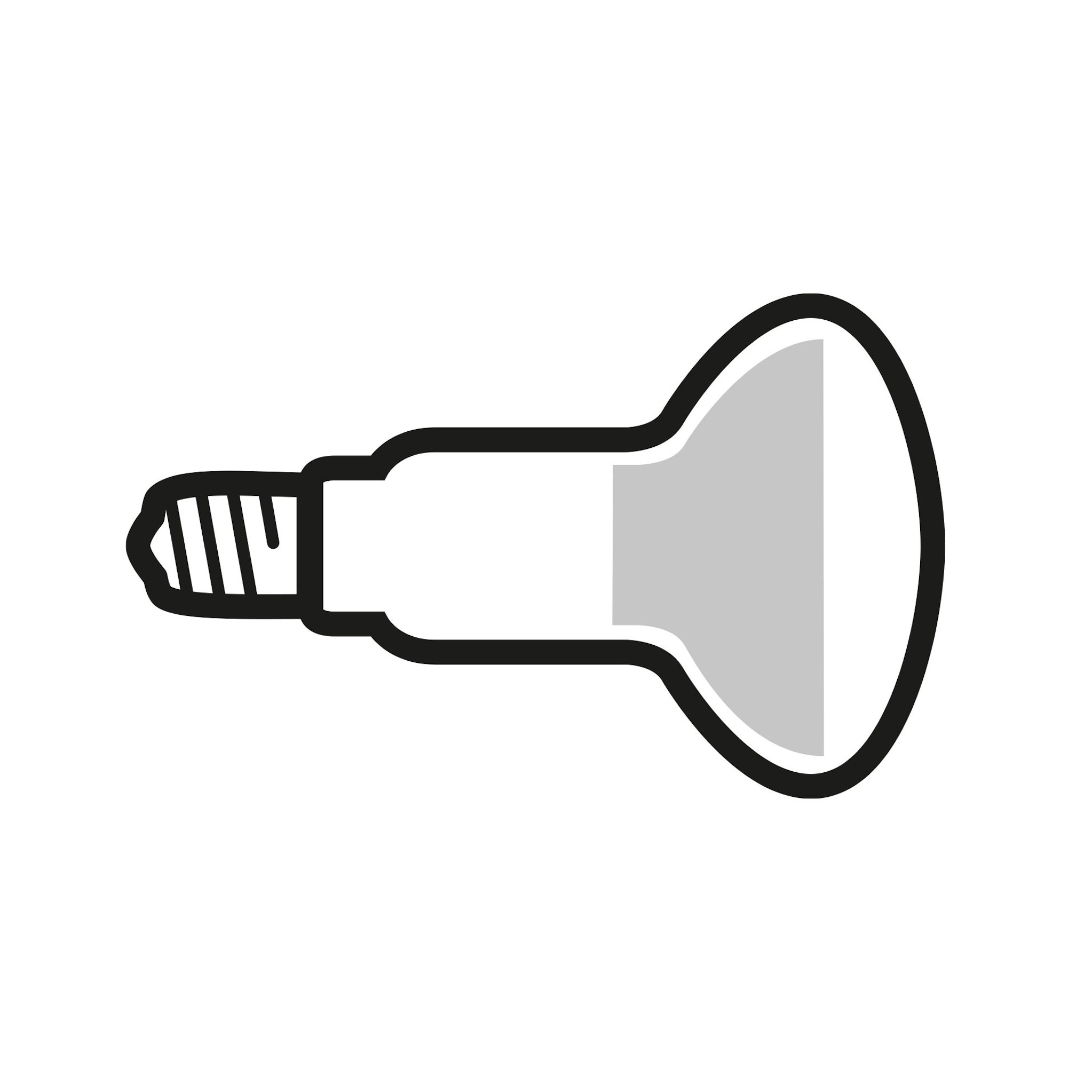

Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGSR
Number of lamps
1
Power (W)
105
Schematic light drawing
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
600
Cord colour
productFields.physical.cordLength
2700
Canopy colour
Canopy length/diameter (mm)
101
Canopy height (mm)
111
Net weight (kg)
2.5
Package height (mm)
170
Package width (mm)
655
Package length (mm)
655
Package volume (m3)
0.07
IP internal
Spare Parts

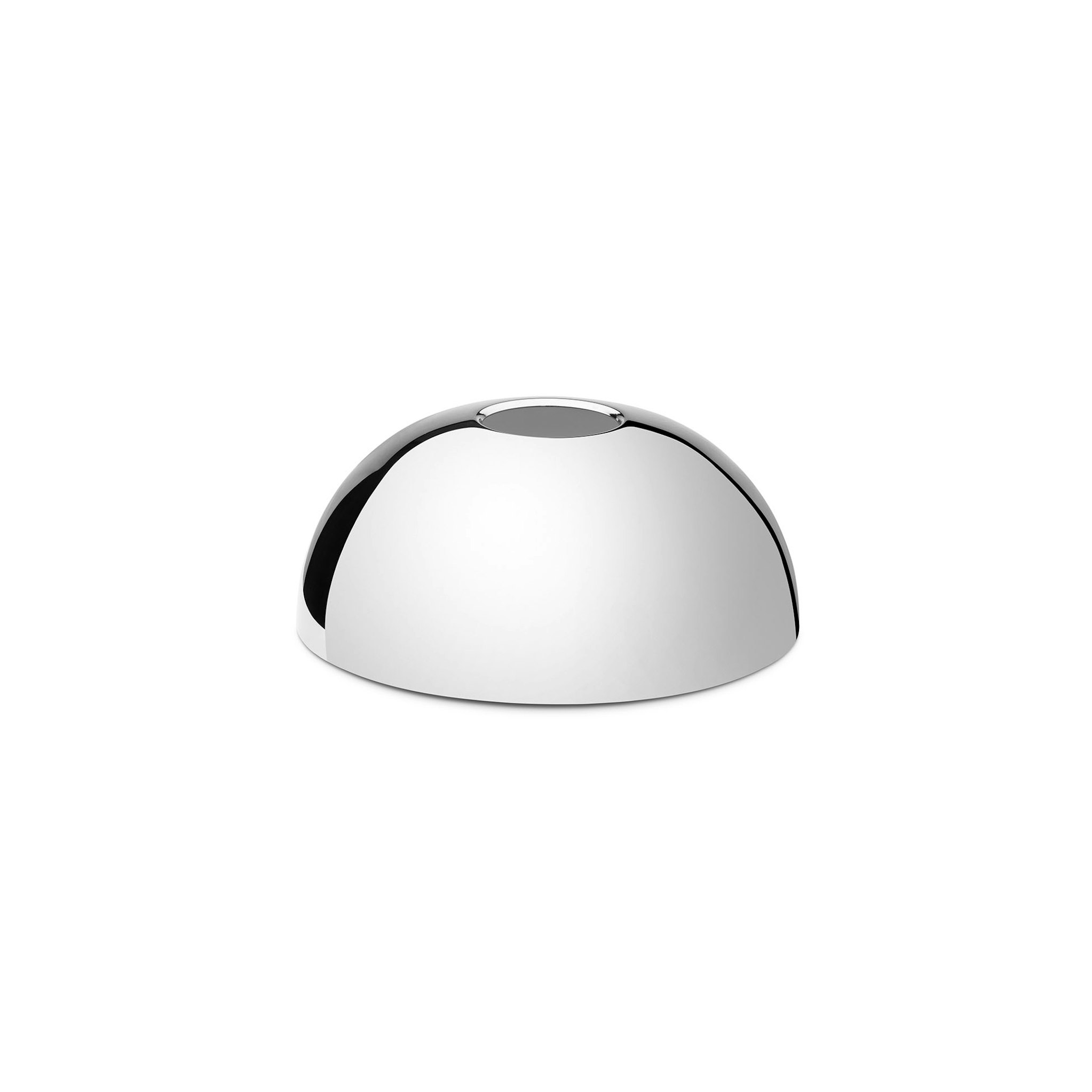

01. Frisbi Reflector
RF00862

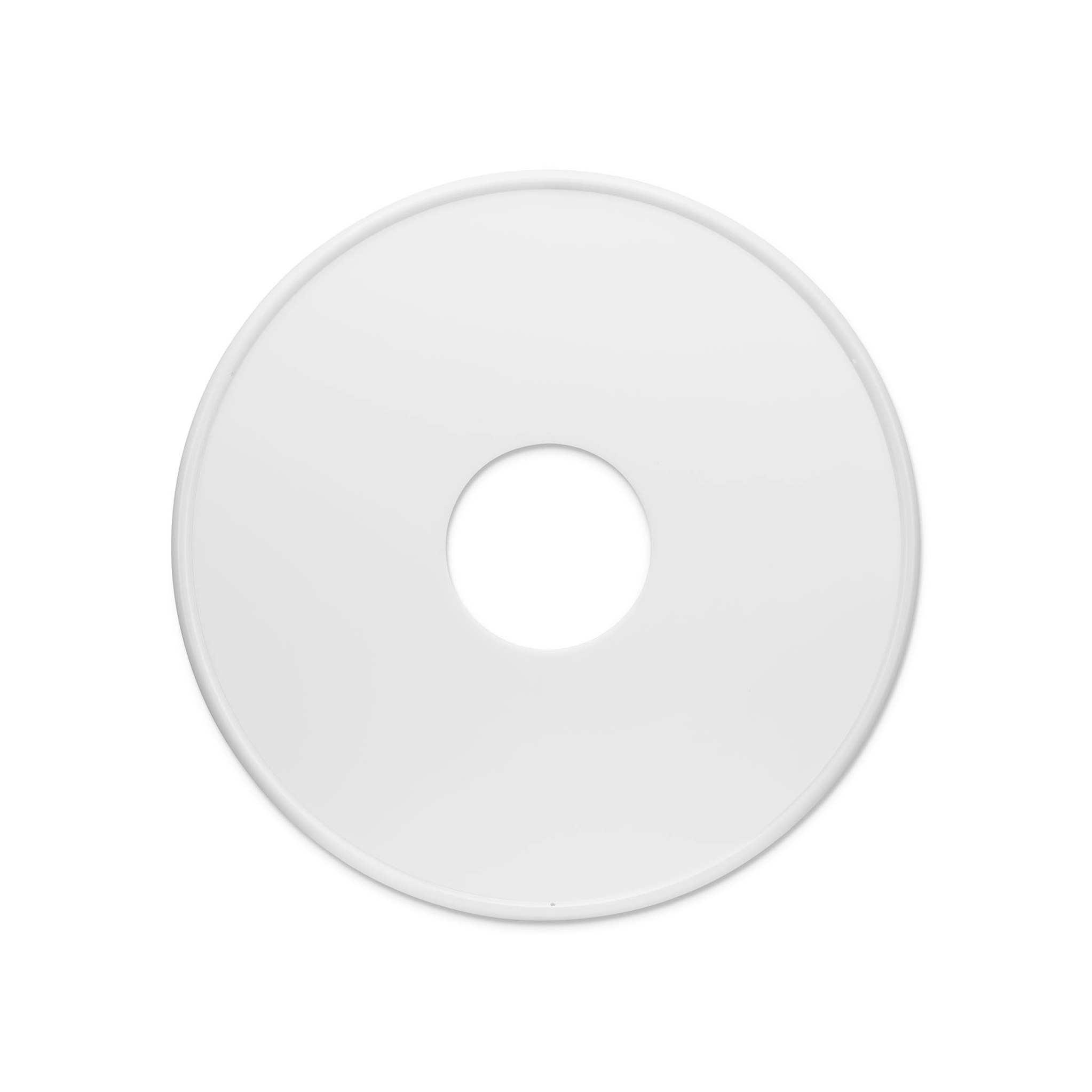

02. Frisbi Plexiglass diffuser
RF05806

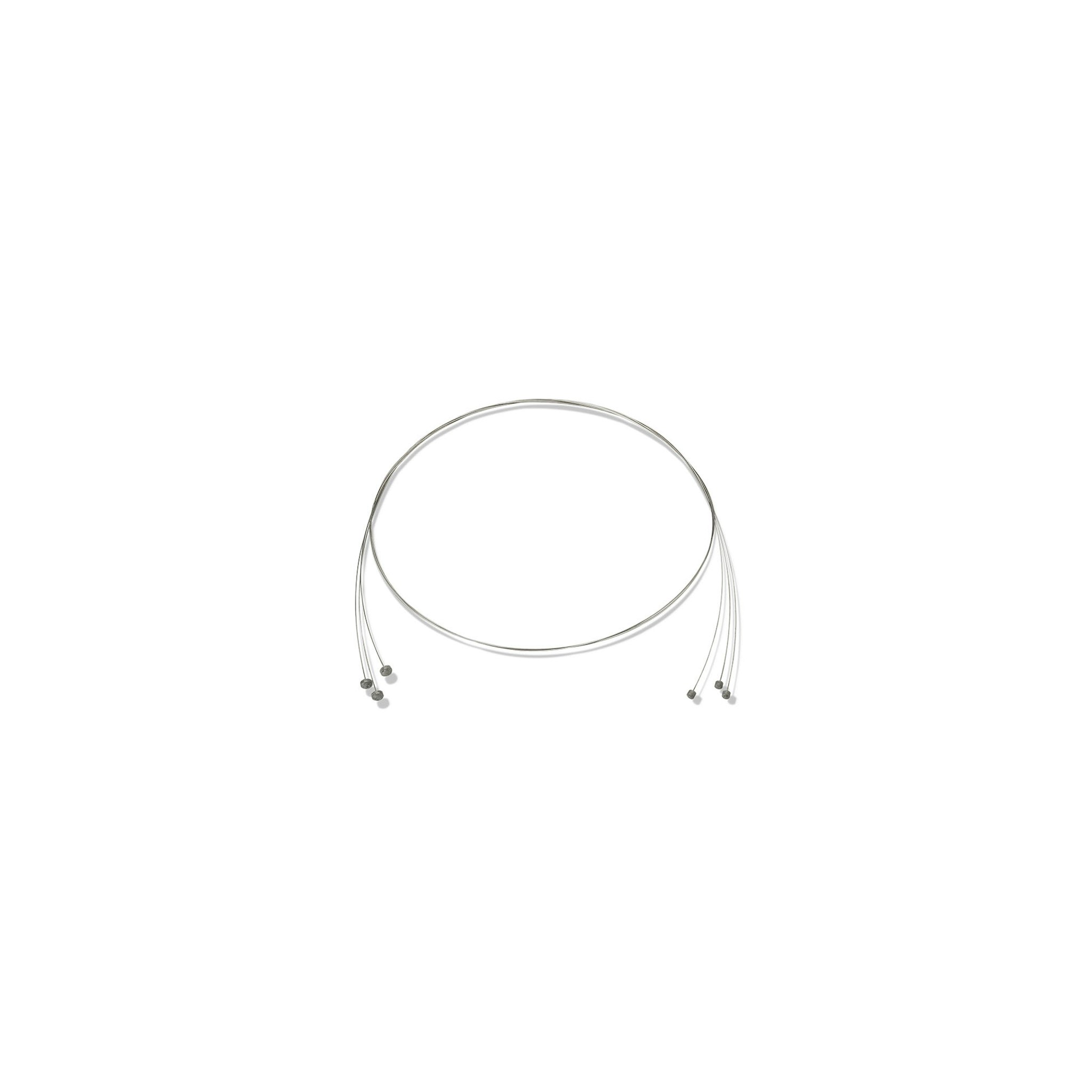

03. Frisbi steel wires (3 pieces)
RF06823

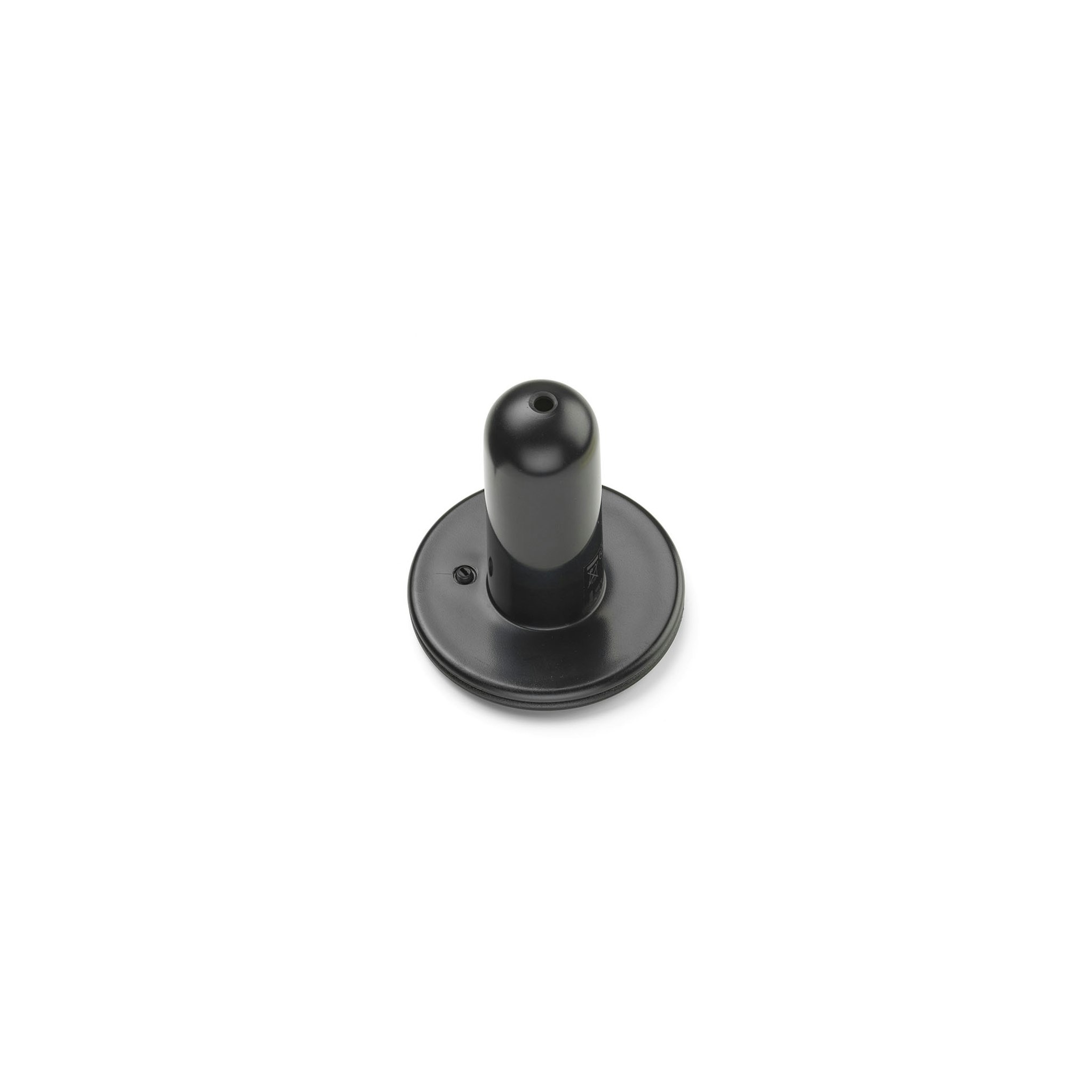

04. Frisbi Complete ceiling rose assembly
RF2500100

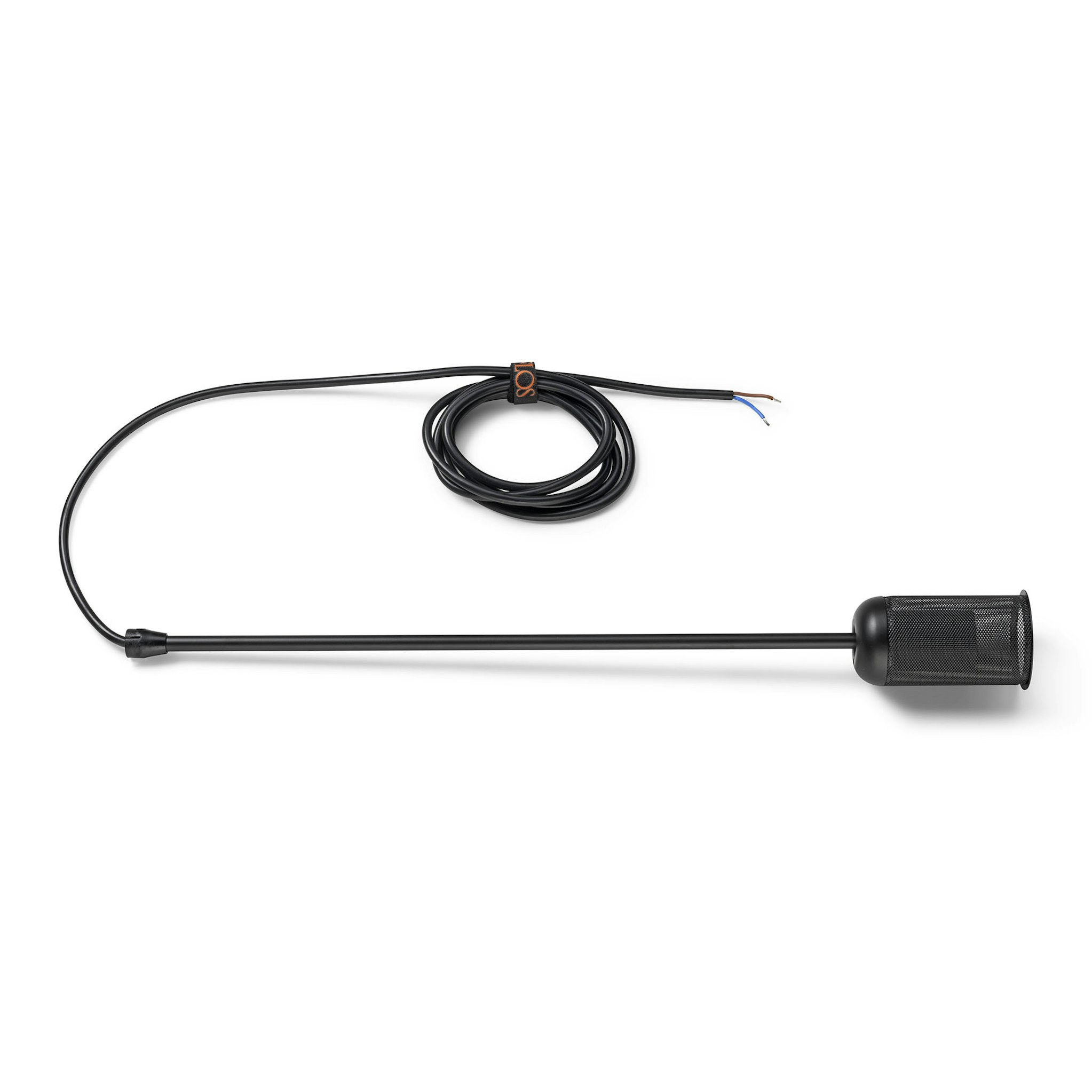

05. Frisbi Grid support with stem
RF01439

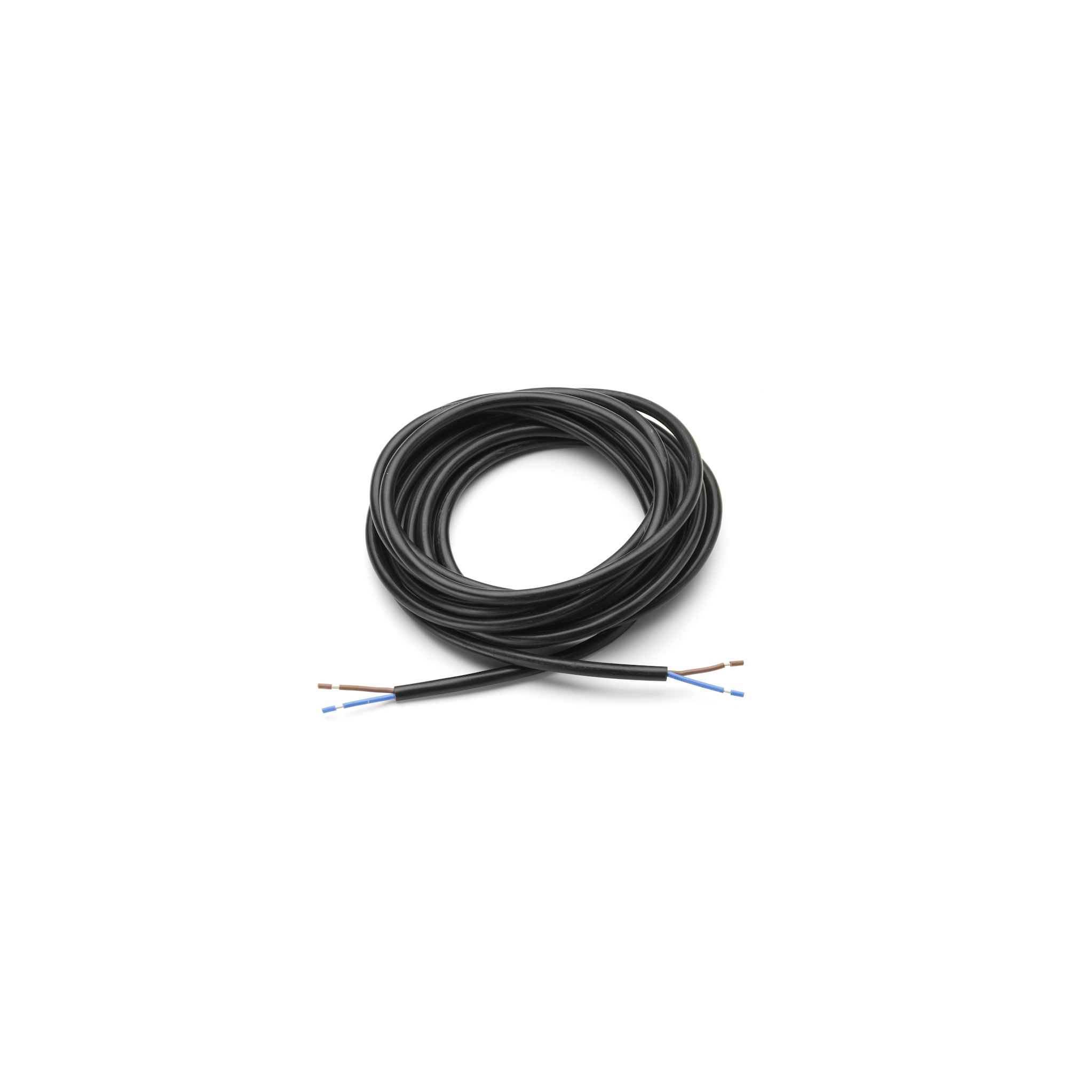

06. Frisbi 2x1 2.7 mt black electrical cable
RF29648
07. New version lamp holder
RF2500200
