G-OG-O White Light
Designed by Jorge Herrera, 2017
Semi recessed signalling lamp for indoor use on ceiling/wall. Power supply not included. 1000 mm power cable included.
LED - Top LED - 1.2W - 4lm - 3000K - CRI> 90 - Beam° 74
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
1.2
Source flux (lm)
96
Lumen Output (lm)
4
Schematic light drawing
Photometric
Lighting type
,
Light distribution
CCT (K)
CRI>
Beam angle C0-180 (º)
74
Beam angle C90-270 (º)
74
UGRL
<16
Electrical
Insulation class
Forward voltage (V)
24
LED current (mA)
25
Power supply
Dimmable
Power supply type
,
Physical
Colour
Trim
No
Orientation
Recessed depth (mm)
56
Net weight (kg)
0.11
IP internal
IP external
Notes

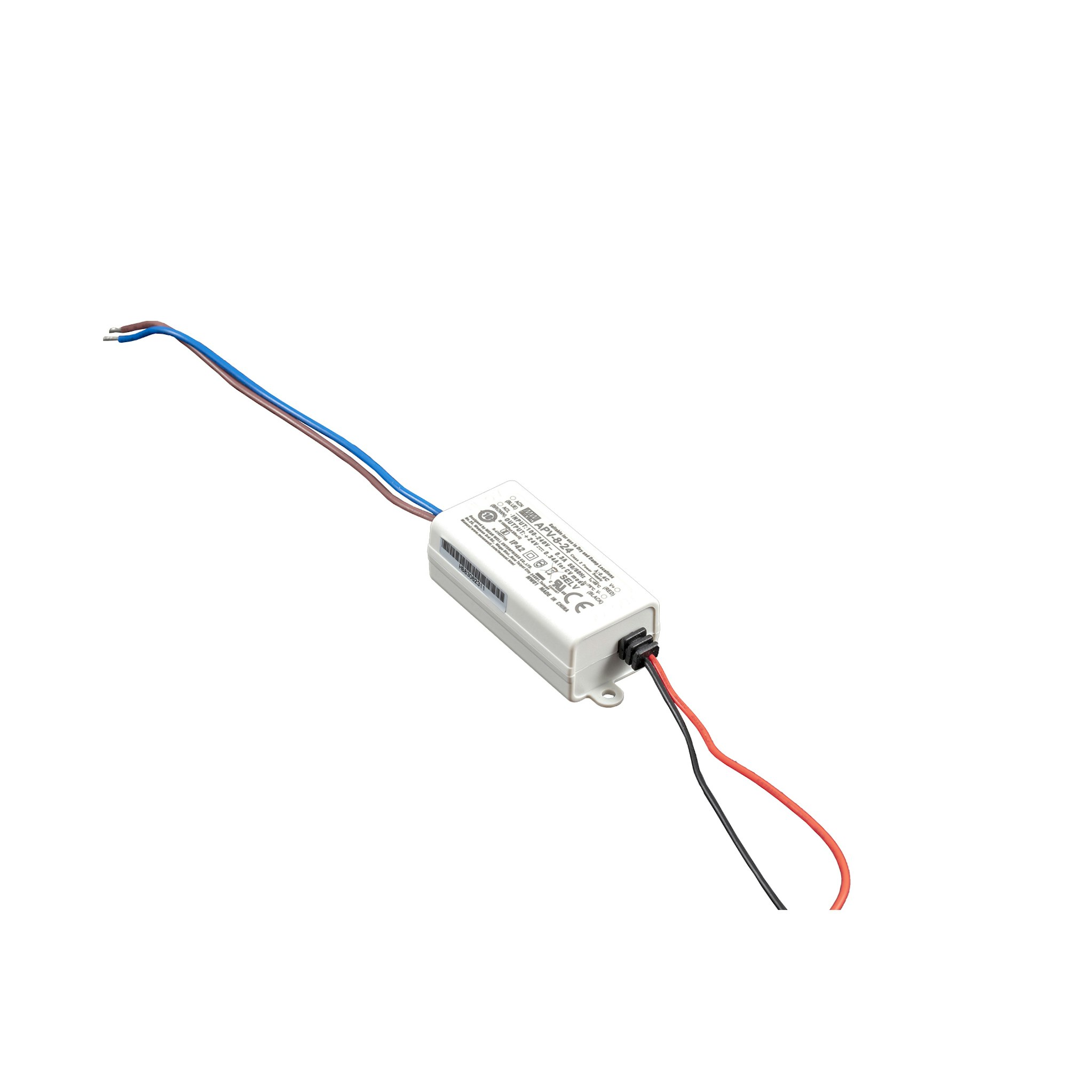

Equipment for remote installation in an accesible place: it does not fit through the luminarie installation hole. For Dali installation, the non-dimmable kit and the Dali controller are needed.
