Glo-Ball
F3026000

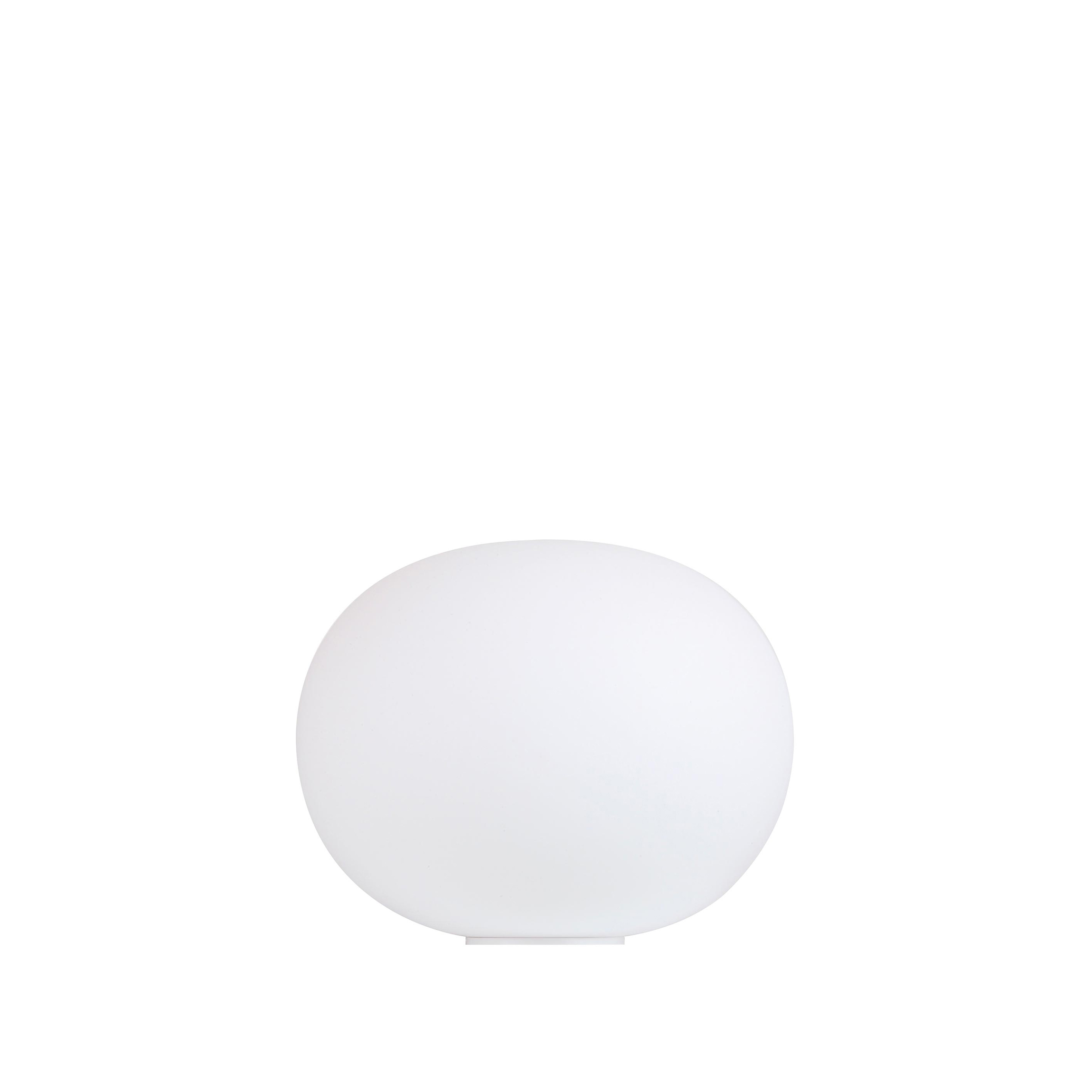

Glo-Ball Basic 2

Table/desk lamp providing diffused light. Diffuser consisting of an externally acidetched, hand blown, flashed opaline glass and a die-cast aluminum threaded ring nut with alodine plating finish. 30% fiberglass reinforced injection-molded polyamide base. Gray painted, die-cast aluminum diffuser support. On the cable there is the electronic  dimmer which allows the regulation of light brightness.

Halogen - 150W

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Table-Glo_Ball-Basic_2
Main specifications
EAN
8059607002414
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGS
Number of lamps
1
Power (W)
150
Schematic light drawing
F3026000WGLO-BALL_BASIC_2_250W-HL
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Dimming interface
Plug type
Batteries inside
No
Physical
Colour
Length (mm)
450
Cord colour
productFields.physical.cordLength
1900
Net weight (kg)
3.9
Package volume (m3)
0.13
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Spare Parts

F3026000-glo-ball-basic-2-flos-boom

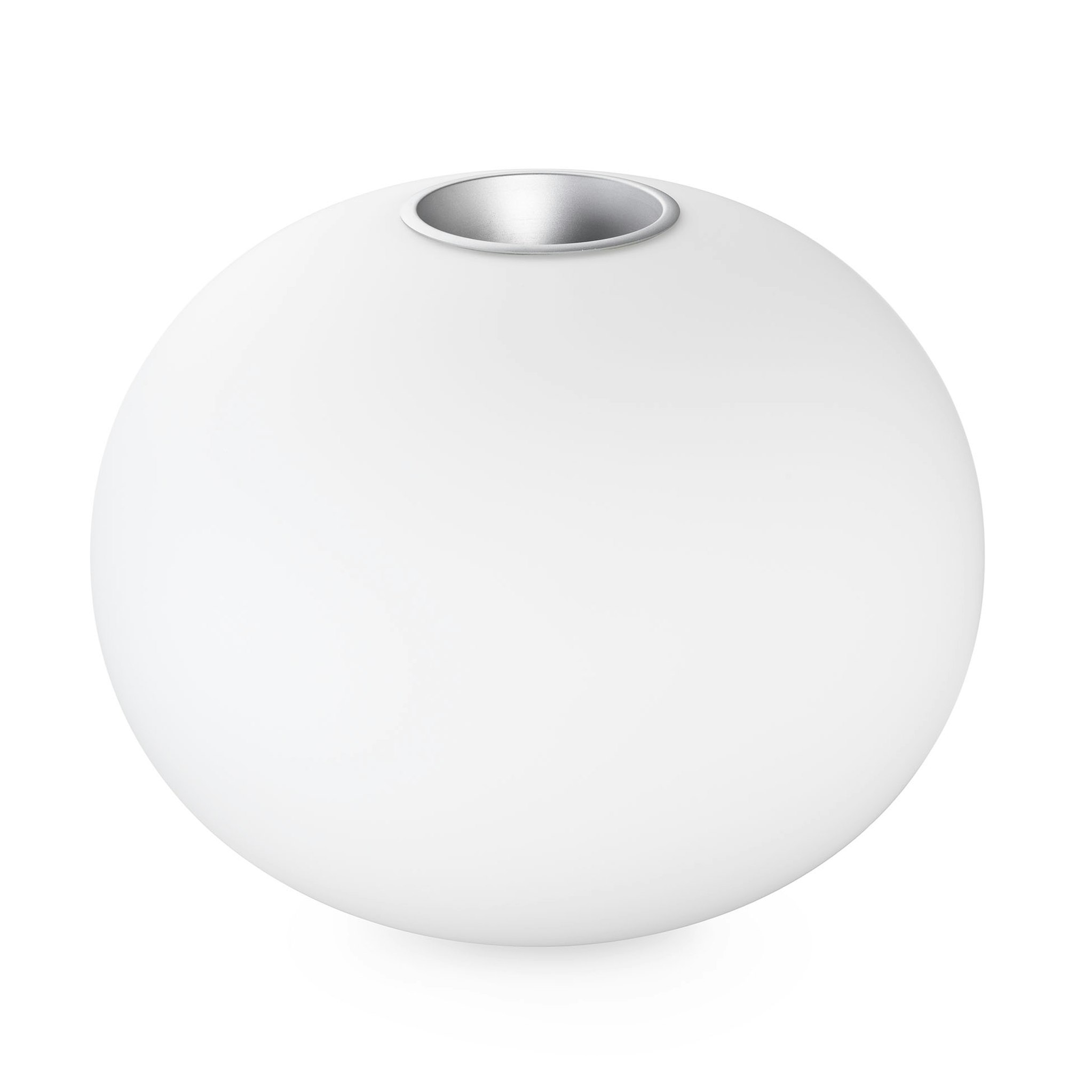

01. Glo-Ball opal diffuser. Grey Base
F3055061
02. Black Dimmer Switch
RF28206
03. New version lamp holder
RF2500200
