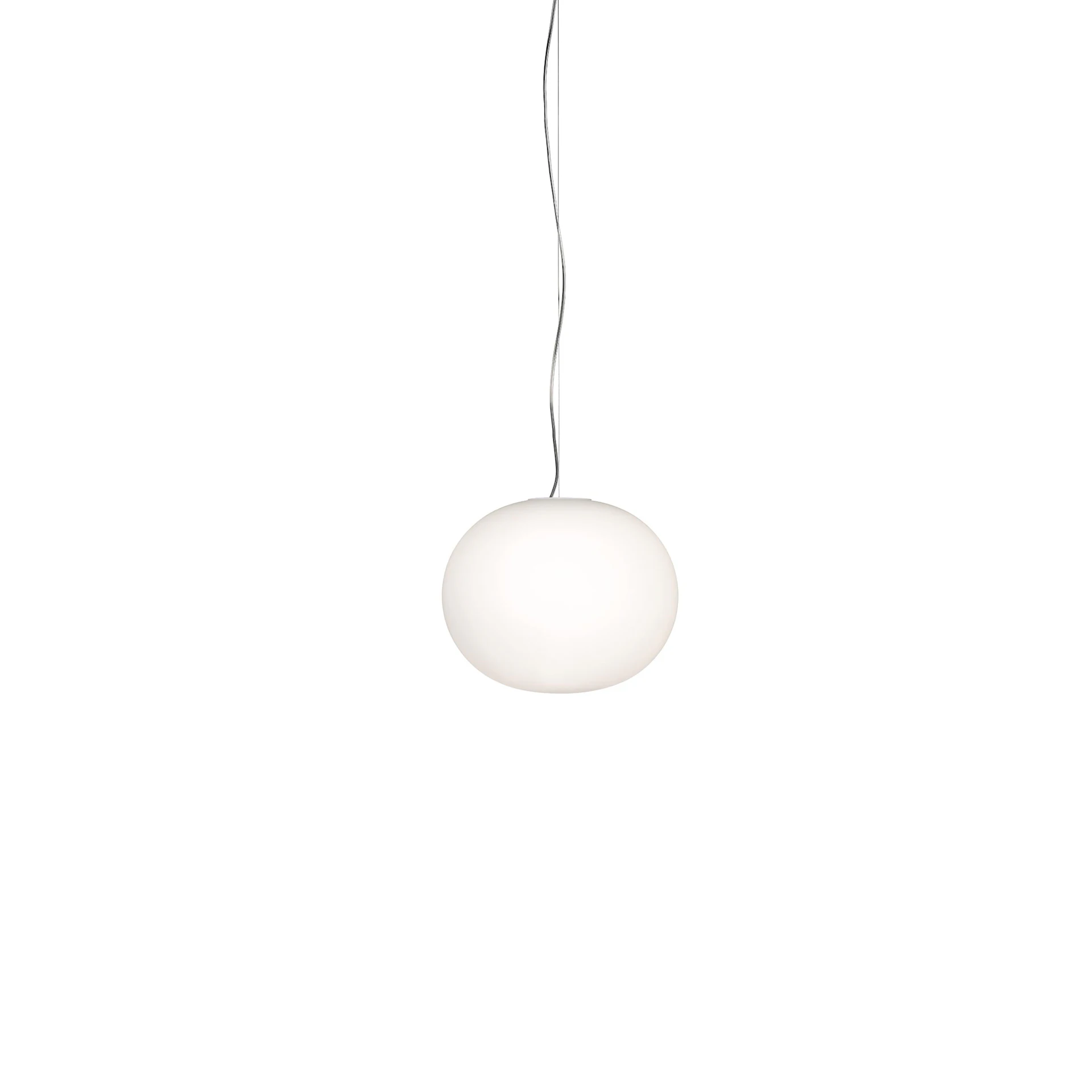

Glo-BallGlo-Ball Suspension 1
Designed by Jasper Morrison, 1998
Suspension lamp providing diffused light. Diffuser consisting of an externally acid-etched, hand blown, flashed opaline glass. Gloss white painted pressed steel diffuser support. 30% fiberglass reinforced injection-molded polyamide rose; pressed and galvanized ceiling fitting. Steel suspension cable.
Halogen - 150W
Technical Drawing
Main specifications
EAN
8059607002193
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGS
Number of lamps
1
Power (W)
150
Schematic light drawing
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
330
Cord colour
productFields.physical.cordLength
2700
Canopy colour
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
2.55
Package volume (m3)
0.07
IP internal
Spare Parts

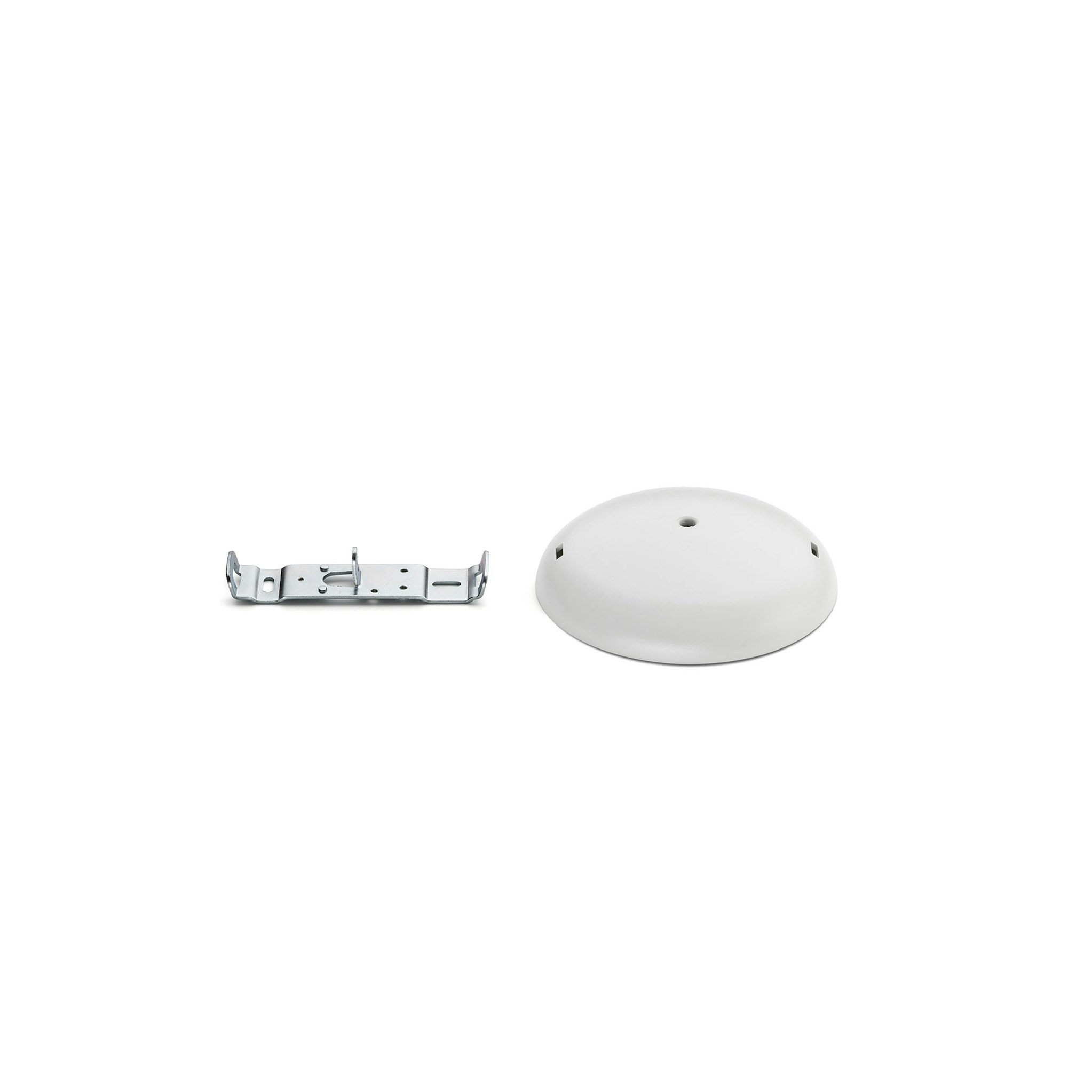

01. White rose assembly
RA3690209

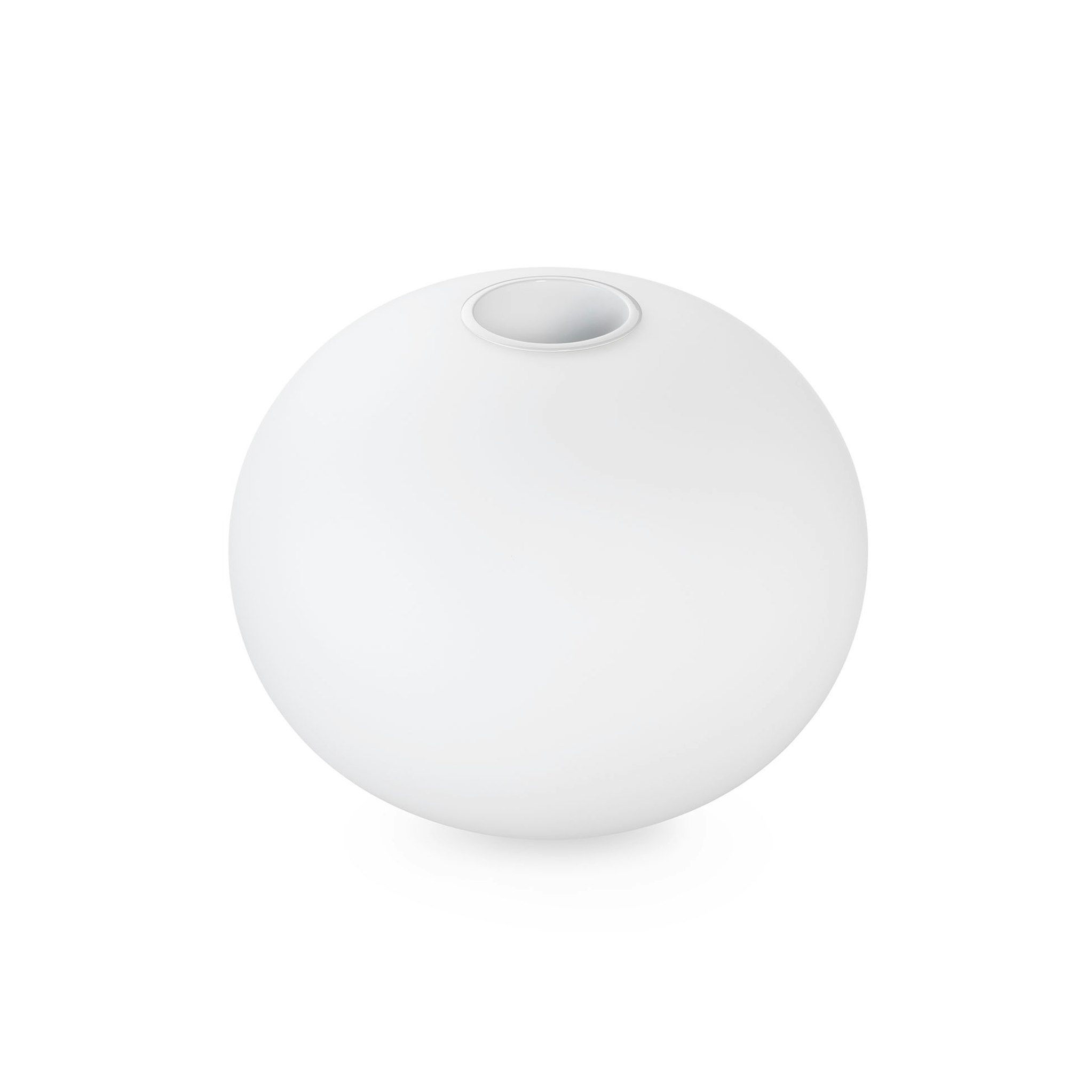

02. Glo-Ball Suspension1 white diffuser
F3007061

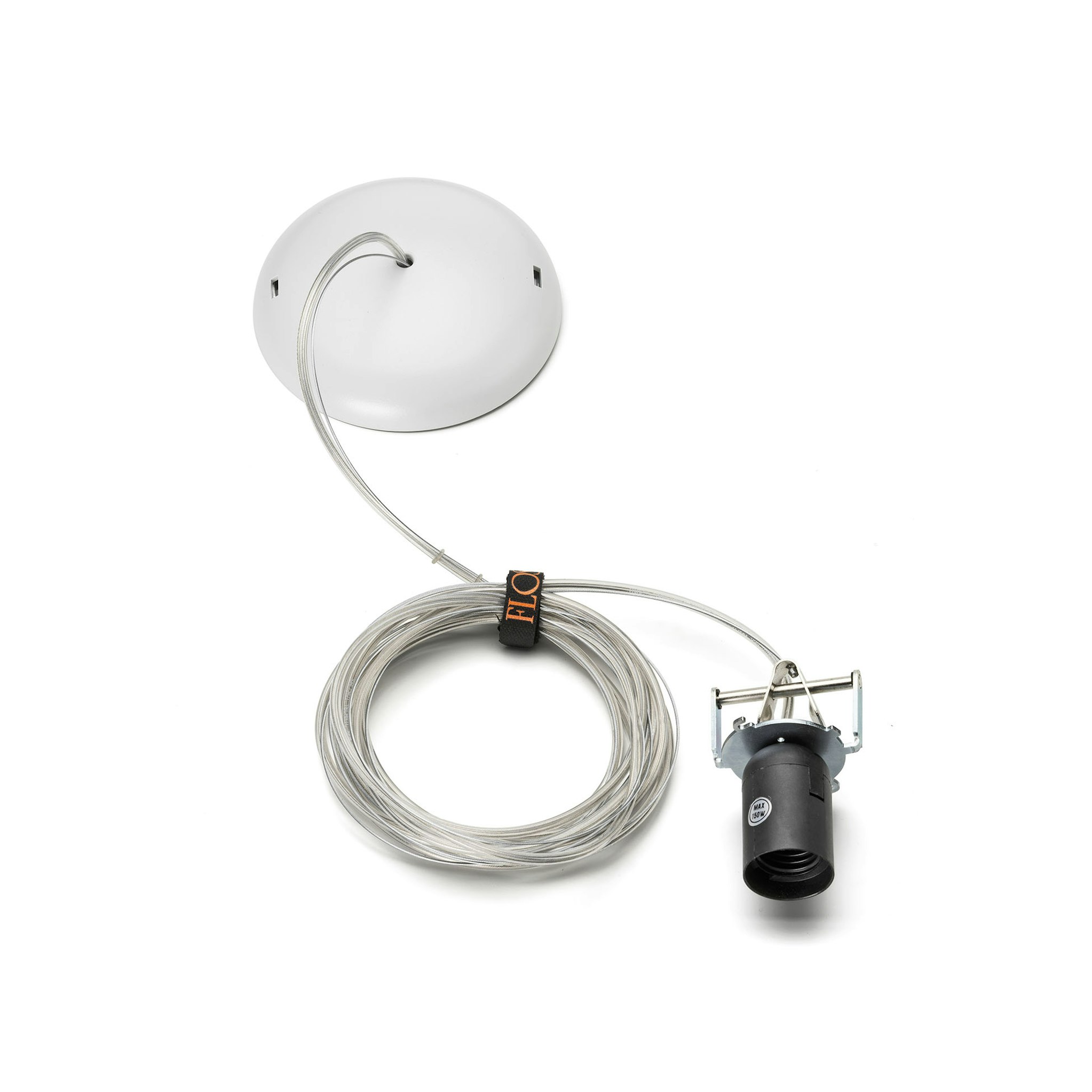

03. Glo-ball Suspension 1 electrical wiring assembly
F3006061A
04. New version lamp holder
RF2500200
05. Kit of 5 or rings
RF05382
