Glo-Ball
F3022000

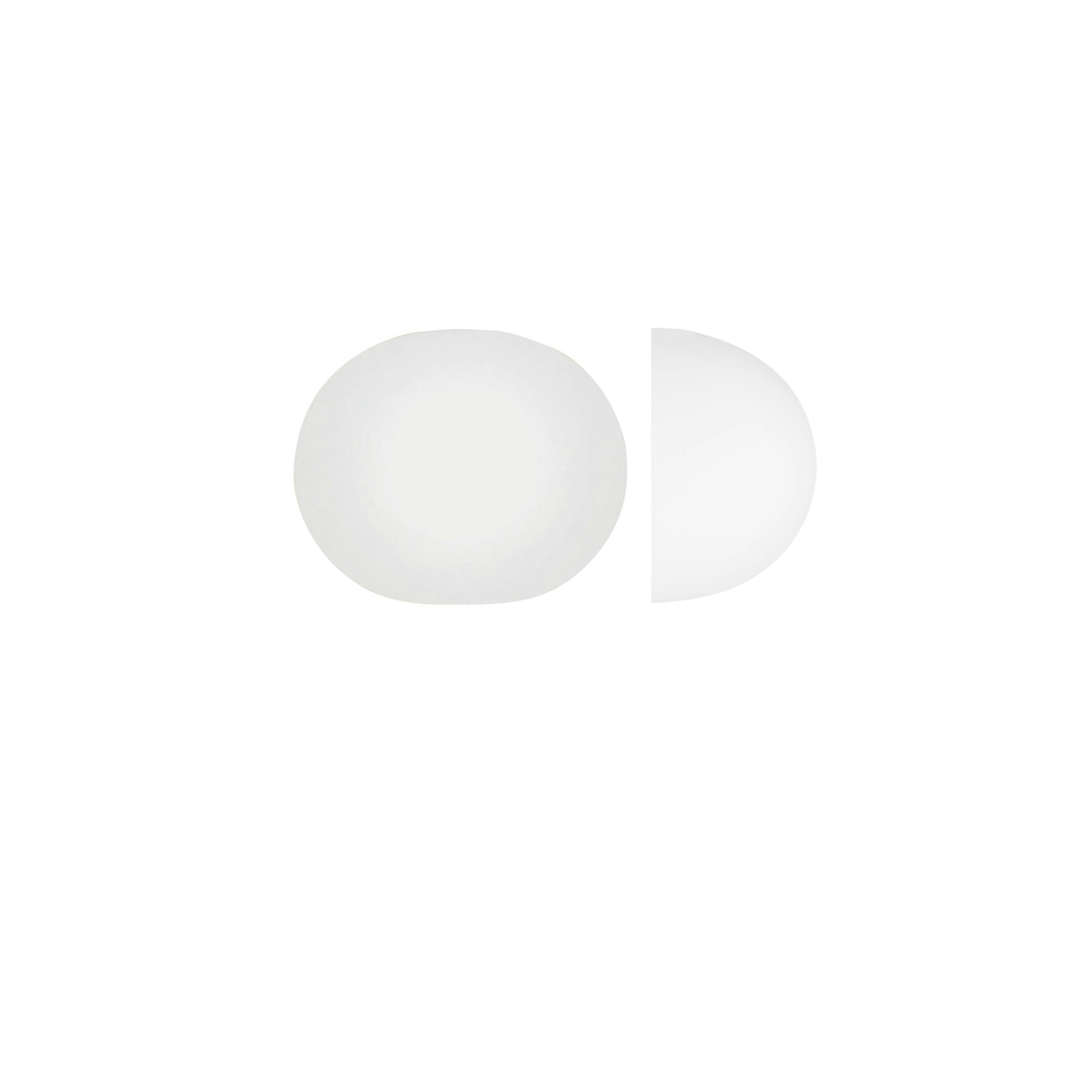

Glo-Ball Wall

Wall mounted lamp providing diffused light. Diffuser consisting of an externally acid-etched, hand blown, flashed opaline glass. Galvanized pressed steel wall fitting.

Halogen - 100W

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-Glo_Ball
Main specifications
EAN
8059607016725
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGS
Number of lamps
1
Power (W)
100
Schematic light drawing
F3022000WGLO-BALL_W1_8W-LED
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
330
Net weight (kg)
1.5
Package height (mm)
270
Package width (mm)
380
Package length (mm)
380
Package volume (m3)
0.04
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Bulbs

Thumbnail
x1
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 2700K A70RF32563
Thumbnail
x1
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 3000K A70RF32564

Spare Parts

F3022000-glo-ball-w-flos-boom

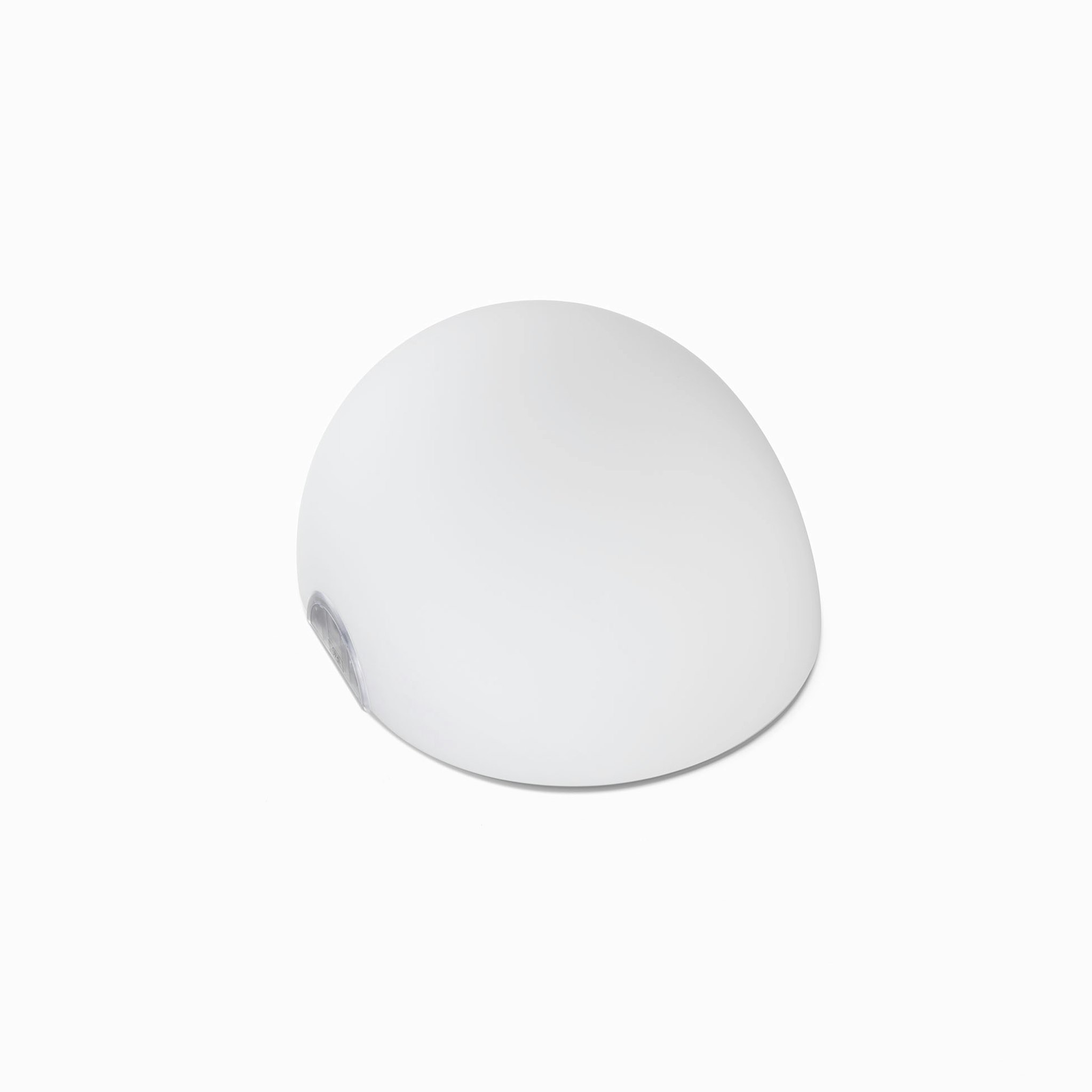

01. Glo-Ball Wall white diffuser
RF3022000
Thumbnail
x1
Glo-Ball Wall white diffuserRF3022000
