Gustave
09.8405.DR

Gustave Residential

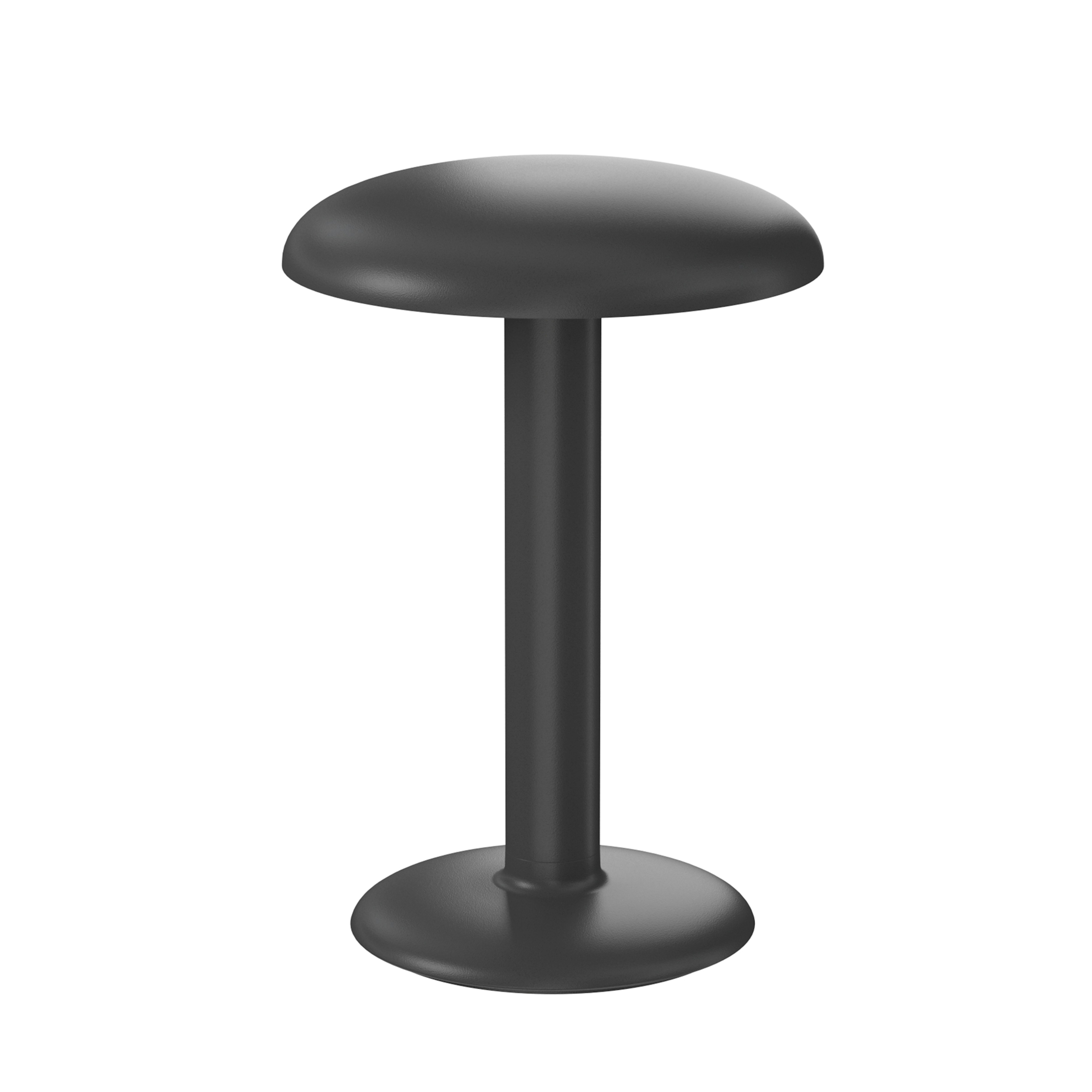

Gustave is a portable, self-powered luminaire, specially designed for tabletop lighting applications and other related uses as supplementary lighting. Gustave’s compact size encloses a perfect mix of the most innovative optical and light technology and a disruptive engineering, developed in the service of a discretionary purpose of Flos for this project: to create the first portable luminaire on the market with circular design awareness, ecological and honestly conceived against obsolescence. Portable luminaire with autonomous battery, designed for residential applications. Powered by 'Button Type 18650 Li-Ion' batteries (2 units, included inside the product). USB-C charging cable (plug adapter not included). 0-100% sequential regulation by means of capacitive haptic push button.

LED - Top LED - 2.5W - 159lm - 2700K - CRI> 90 - Beam° 144

Technical Drawing
DR-Gustave
Main specifications
Mounting
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
2.5
System power (W)
2.5
Source flux (lm)
221
Lumen Output (lm)
159
Efficacy (lm/W)
69
Schematic light drawing
EU_09_8405_XX_XXW2.3
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
Rf fidelity index
93
Rg gamut index
100
Beam angle C0-180 (º)
144
Beam angle C90-270 (º)
144
Electrical
Insulation class
LED current (mA)
180
Dimmable
Power supply type
Dimming interface
Plug type
Batteries inside
Yes
Battery type
Charging cycles guaranteed
Charging max power
Charging min time
5.5
Charging socket/connector
Physical
Colour
Length (mm)
155
Cord colour
productFields.physical.cordLength
1200
Net weight (kg)
0.78
Package height (mm)
36
Package width (mm)
21
Package length (mm)
21
Package volume (m3)
0.02
IP internal
Notes

Product Battery autonomy: 100% - 6 hours / 50% - 10 hours / 25% - 18 hours. Batteries included. USB-A / USB-C Cable included. Adapter 5V, min 2A not included.

Download

Tech spec pdf

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

REPLACEABLE2

PWRSUPRPL3

Accessories & Power Supply

Required(1)

Spare Parts

gustave-residential-flos-boom
02. Cable for Gustave Residential USB-A/USB-C
08.0761.14
02. Cable for Gustave Residential USB-A/USB-C
08.0761.30
