In-Finity
03.5331.29AAnodized Grey

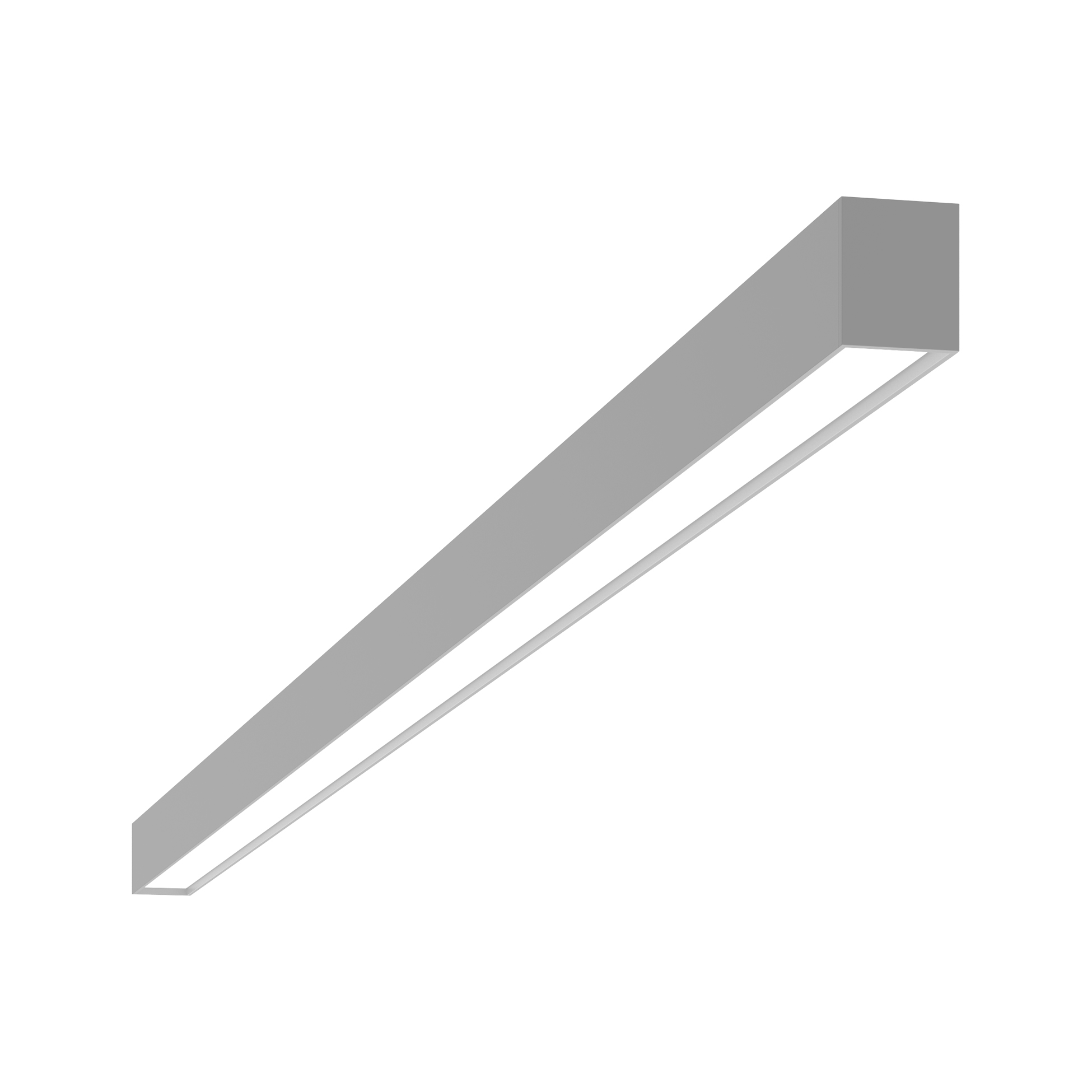

In-Finity 25 mm

LED profile for linear lighting, only 25 mm wide. Available in surface mounted versions, with possibility of suspended installation by means of a dedicated kit. Drivers not included.

1167lm - 3000K - CRI> 90 - Beam° 84

Find a Flos store
Technical Drawing
Flos-Pim-Technical Drawing-Luminaire-System-In_Finity_25-Surface
Main specifications
Mounting
Suspension, Ceiling surface
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Top LED
Number of lamps
1
System power (W)
28.6
Lumen Output (lm)
1167
Efficacy (lm/W)
41
Schematic light drawing
EU_03_5331_XXAXXW28.6
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
3000
CRI>
90
LED Life / Failure Ratio
L80B10 >50.000h
Beam angle C0-180 (º)
84
Beam angle C90-270 (º)
106
Extreme cut off
No
Electrical
Insulation class
III
Forward voltage (V)
24
Power supply
Remote
Dimmable
No
Power supply type
Non Dimmable
Physical
Colour
Anodized Grey
Orientation
Fixed
Length (mm)
1500
Net weight (kg)
0.78
Package volume (m3)
0.02
IP internal
20
CE
RG
EAC
UKCA
IECEC
RETILAP
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

Accessories & Power Supply

Required(4)
Optional(1)
