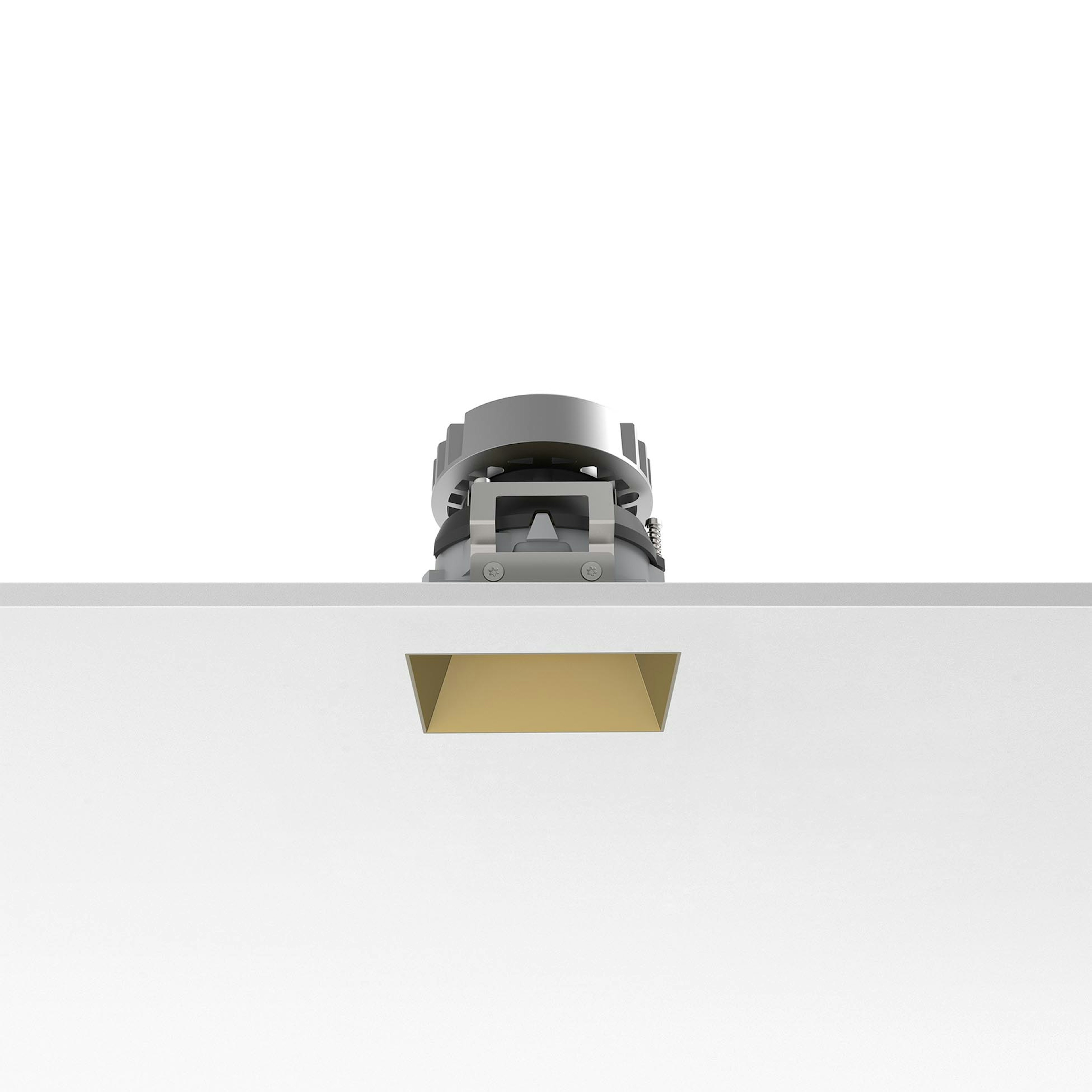

KapKap 80 Square Adjustable Optic Medium
Designed by FLOS Architectural, 2016
Recessed luminaire with LED light source. Power supply not included.
LED - LED array - 9.2W - 634lm - 3000K - CRI> 90 - Beam° 26
Also available in:
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
9.2
System power (W)
9.2
Source flux (lm)
957
Lumen Output (lm)
634
Efficacy (lm/W)
68
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
LED Life / Failure Ratio
L80B50 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
26
Beam angle C90-270 (º)
26
UGRL
<16
Electrical
Insulation class
Frequency (Hz)
0
Forward voltage (V)
17.8
LED current (mA)
500
Power supply
Dimmable
Power supply type
, , , , , ,
Physical
Colour
Trim
No
Orientation
Rotation (º)
360
Longitudinal tilting (°)
20
Transversal tilting (°)
20
Recessed depth (mm)
91
Spot diameter (mm)
74
Length (mm)
74
Net weight (kg)
0.24
Package height (mm)
90
Package width (mm)
140
Package length (mm)
105
IP internal
IP external
Notes
Diffusing lens included.
