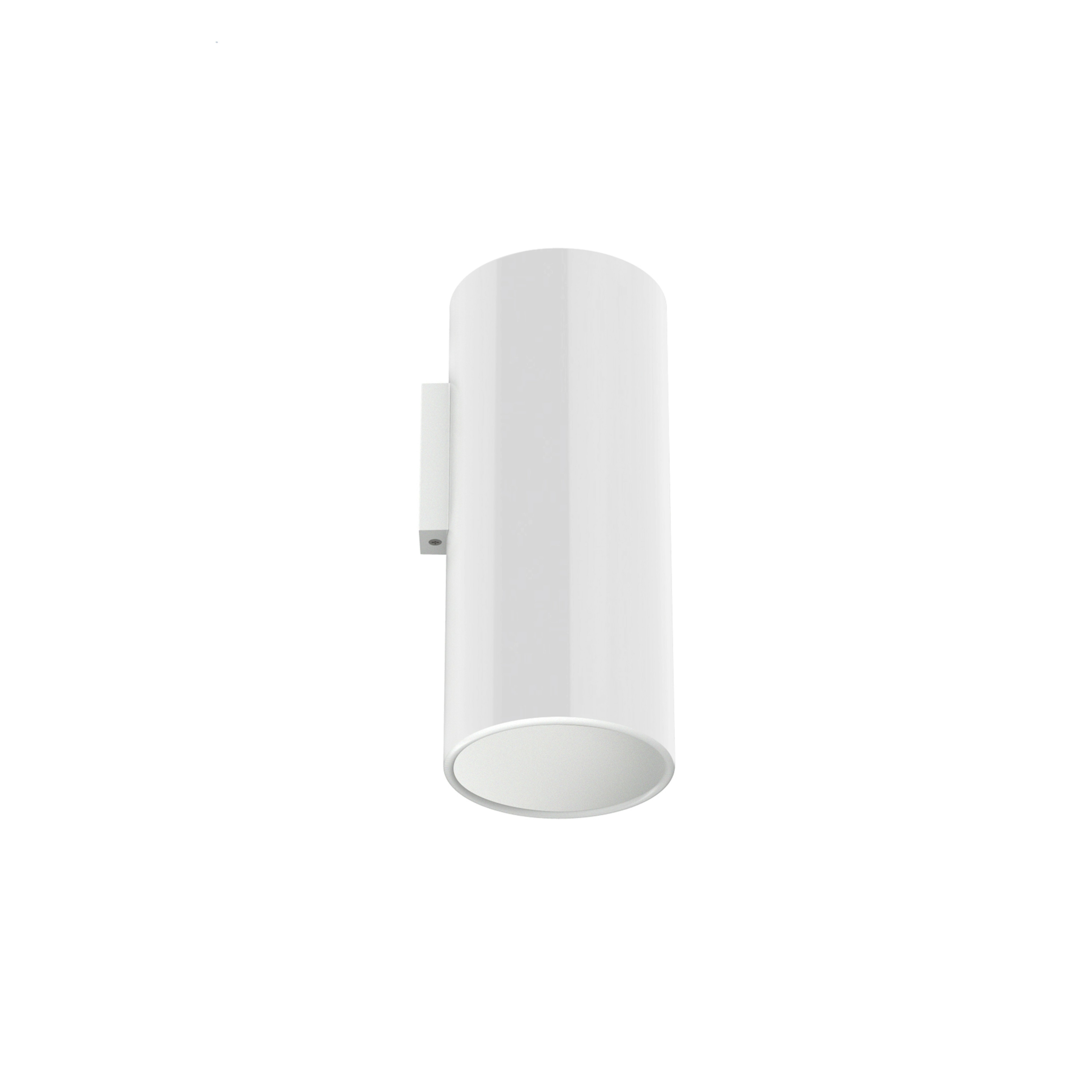

KapKap Surface Wall Ø 100
Designed by FLOS Architectural, 2020
Luminaire for wall mounting with led light source. nonregulable 110/240V, 50-60hz power supply integrated in luminaire body.
LED - Power LED - 9W - 550lm - 3000K - CRI> 80 - Beam° 29
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
9
System power (W)
11
Source flux (lm)
1000
Lumen Output (lm)
550
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
Beam angle C0-180 (º)
29
Beam angle C90-270 (º)
29
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
110-240
Power supply
Dimmable
Power supply type
Physical
Colour
Orientation
Spot diameter (mm)
100
Length (mm)
100
Net weight (kg)
1.58
Package height (mm)
210
Package width (mm)
340
Package length (mm)
220
IP internal
