Kelvin
F3452009

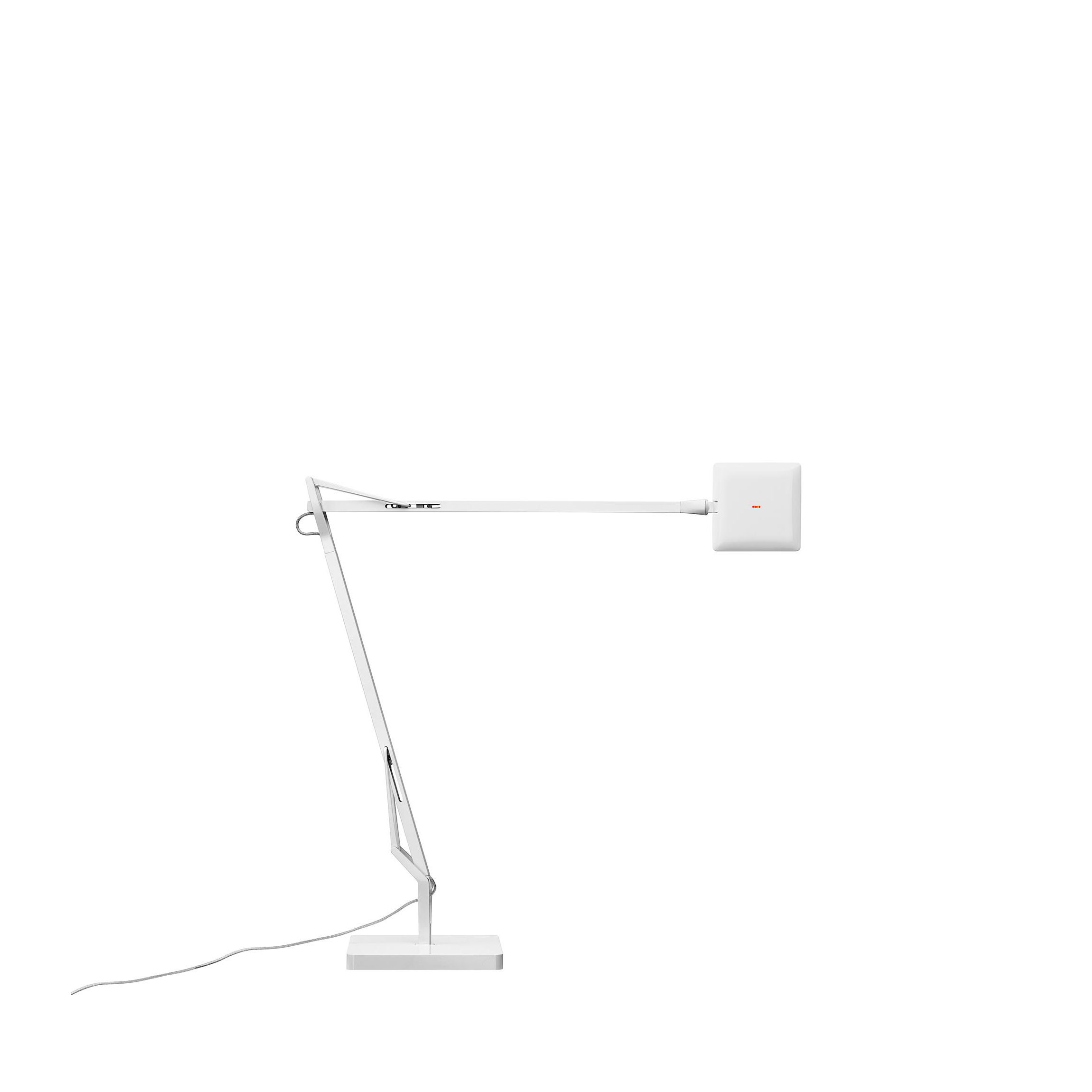

Kelvin Edge Base

Flexible lamp emitting direct light. Painted or chromed aluminium body with die-cast head, joints and forks, and extruded arms. Diffuser in photoengraved polycarbonate with perimeter aluminate finish. Edge Lighting technology light source. Optical switch sensor located on the head providing 3-step dimming and colour temperature adjustment. Plug-in power supply with interchangeable plugs. The lamp is available with a wide series of mounting options such as a base, clamp, desk, wall support or desk support featuring hidden or visible cable.

7W - 306lm - 2700-3200K - CRI> 90

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Table-Kelvin-Edge_Base
Main specifications
EAN
8059607004579
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
7
Lumen Output (lm)
306
Schematic light drawing
F34520WKELVIN_EDGE_8W-LED
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Dimmable
Power supply type
Dimming interface
Plug type
, ,
Batteries inside
No
Physical
Colour
Length (mm)
473
Cord colour
Net weight (kg)
3.86
Package volume (m3)
0.02
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

REPLACEABLE2

PWRSUPRPL3

Spare Parts

F3452009-kelvinedge-flos-boom

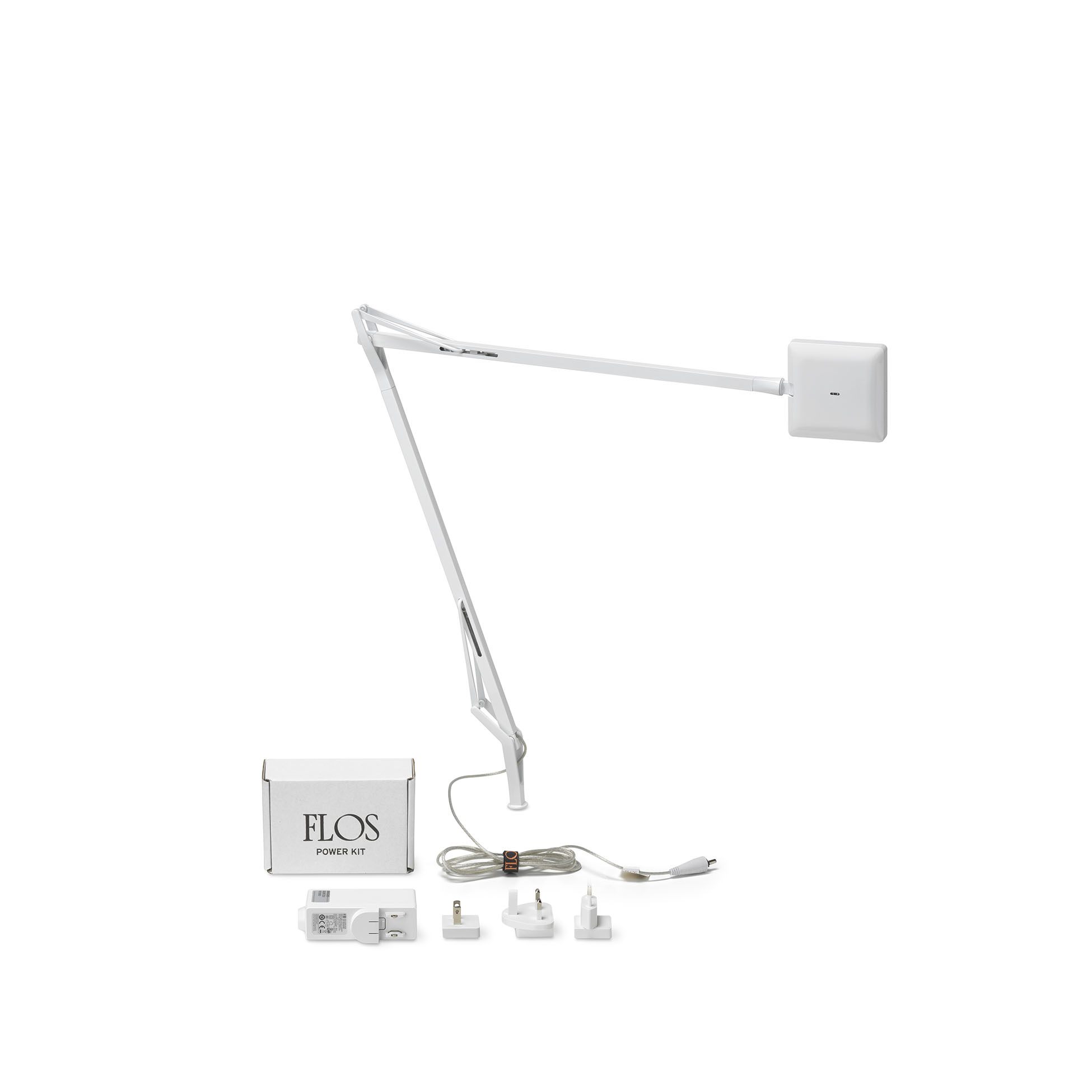

01. White plug assembly kit & 24V driver
RF6600209
02. Kelvin edge white base
F3451009
03. Kelvin edge white body
F3450009
