Kelvin
F3311030

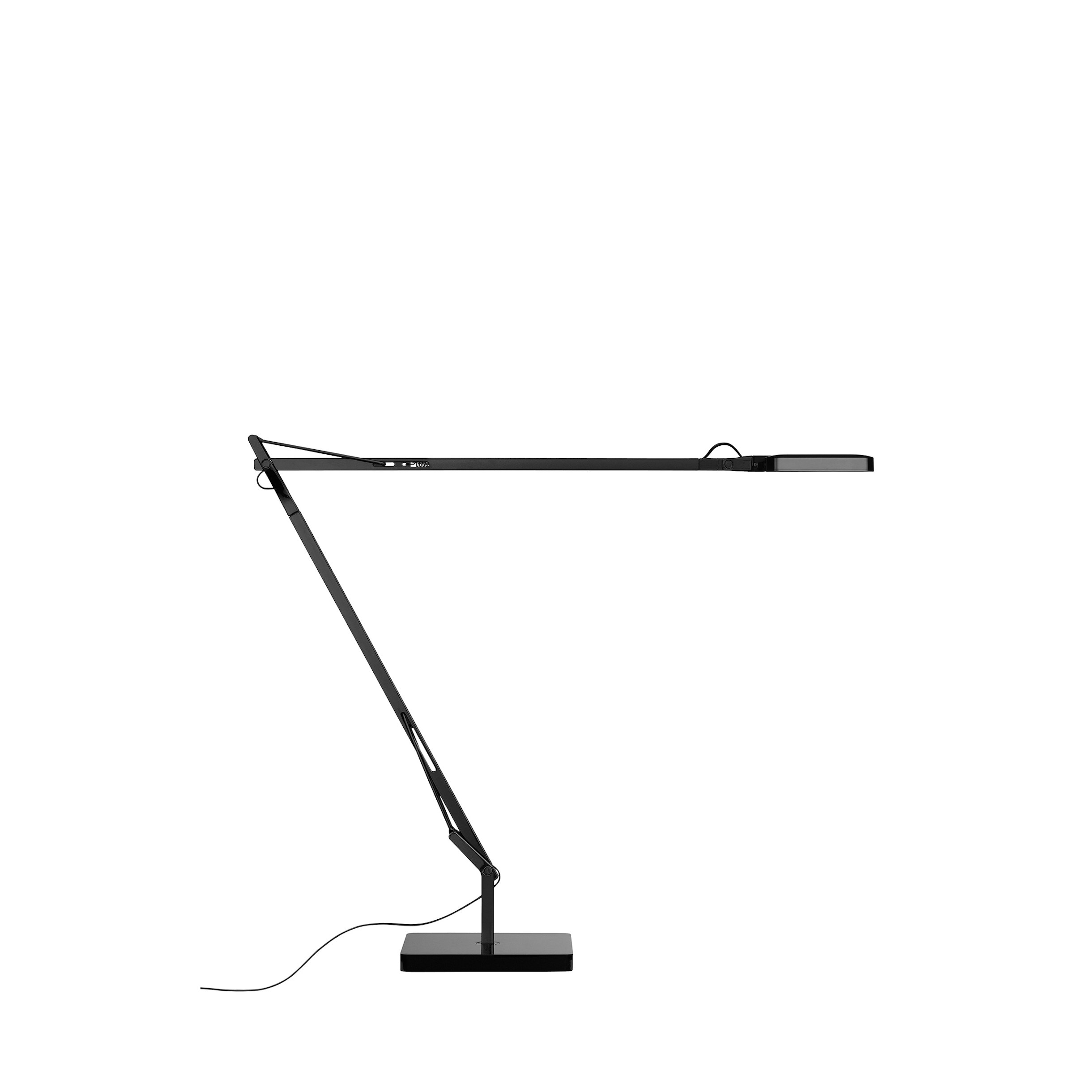

Kelvin Led Base

Table lamp emitting direct light. Fused aluminium alloy body with die-cast aluminium outer head and injection-moulded methacrylate diffuser. Double pantograph arm and adjustable head. Extruded aluminium alloy square tube structure (12×12 mm), CNC machined to house a stainless-steel load-compensation spring and injection-moulded acetal resin sliding blocks. 3 mm steel wire outer tie rods. ABS base cover. Electronic ON/OFF switch with optical sensor to dim the light located on the head. Optional Green Mode enables automatic brightness adjustment for energy efficiency. Available with multiple mounting options.

8W - 523lm - 3000K - CRI> 90

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Table-Kelvin-Led_Base
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
8
Lumen Output (lm)
523
Schematic light drawing
F33110WKELVIN_LED_GM_8W-LED
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Dimmable
Power supply type
Dimming interface
Plug type
, ,
Batteries inside
No
Physical
Colour
Length (mm)
581
Cord colour
productFields.physical.cordLength
1800
Net weight (kg)
4
Package volume (m3)
0.02
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

REPLACEABLE2

PWRSUPRPL3

Spare Parts

F3311030-kelvinledgm-flos-boom
01. Black plug assembly kit & 24V driver
RF6600230

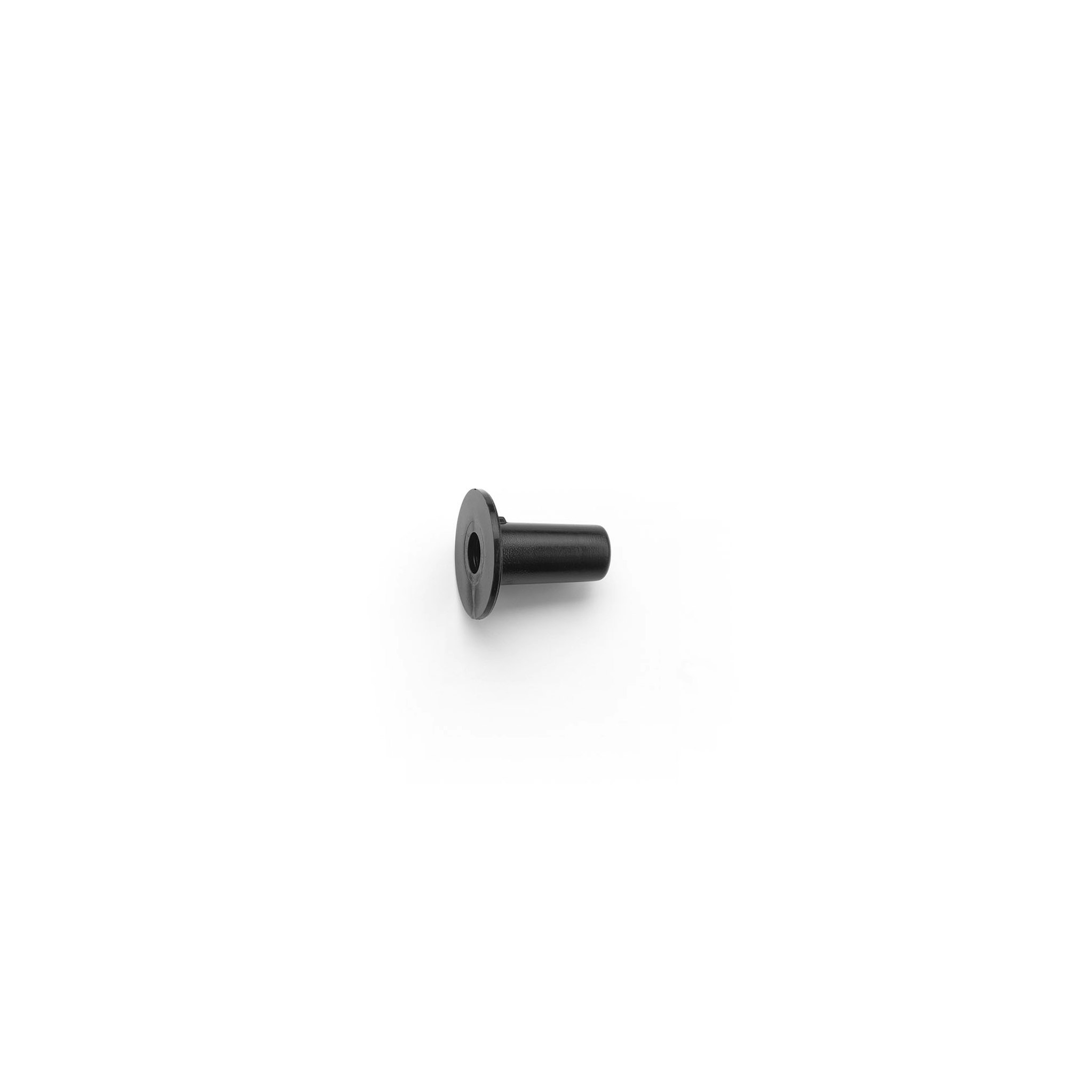

02. Kelvin Led Black insert for lamp base
RF18764

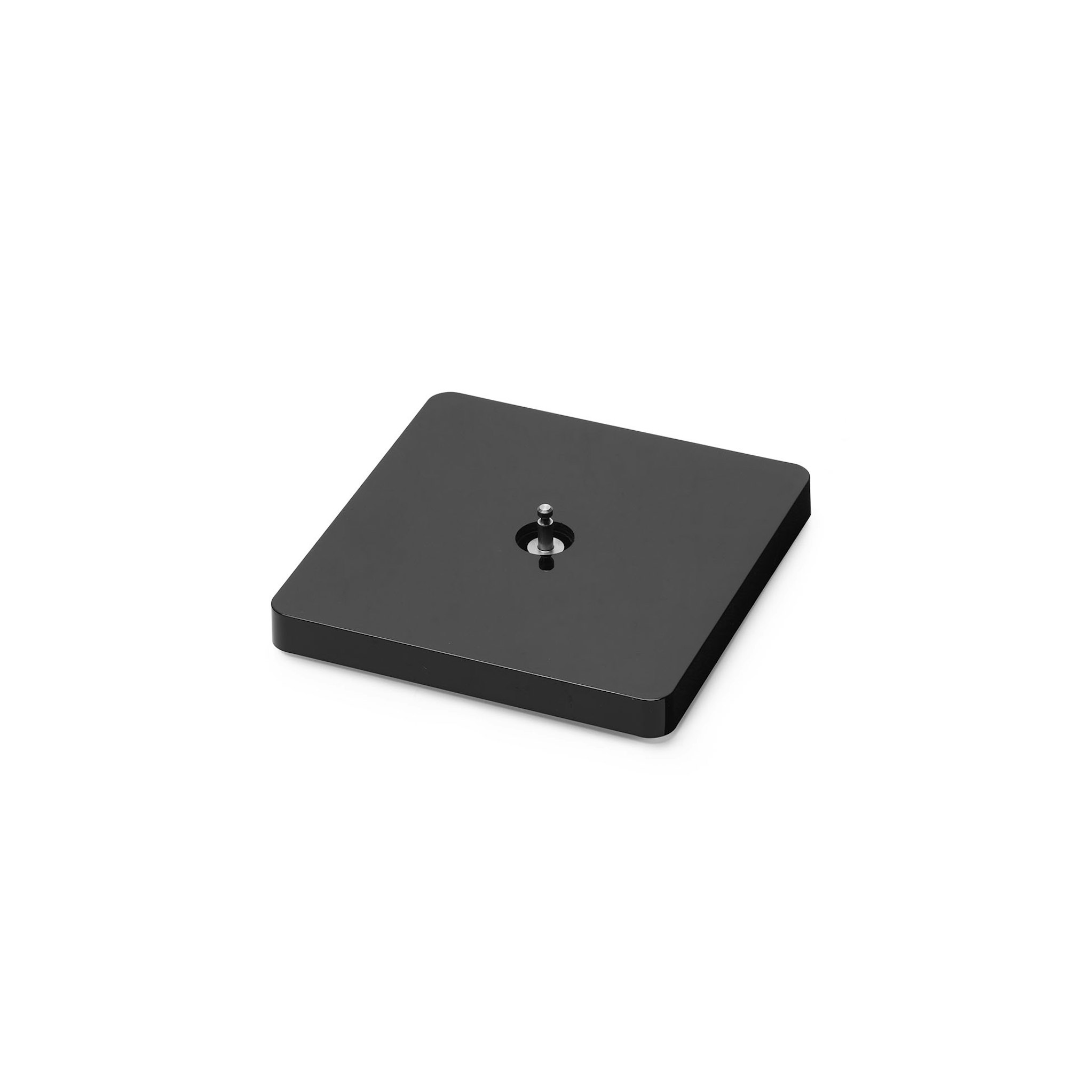

03. Kelvin led gm black base
F3322030A

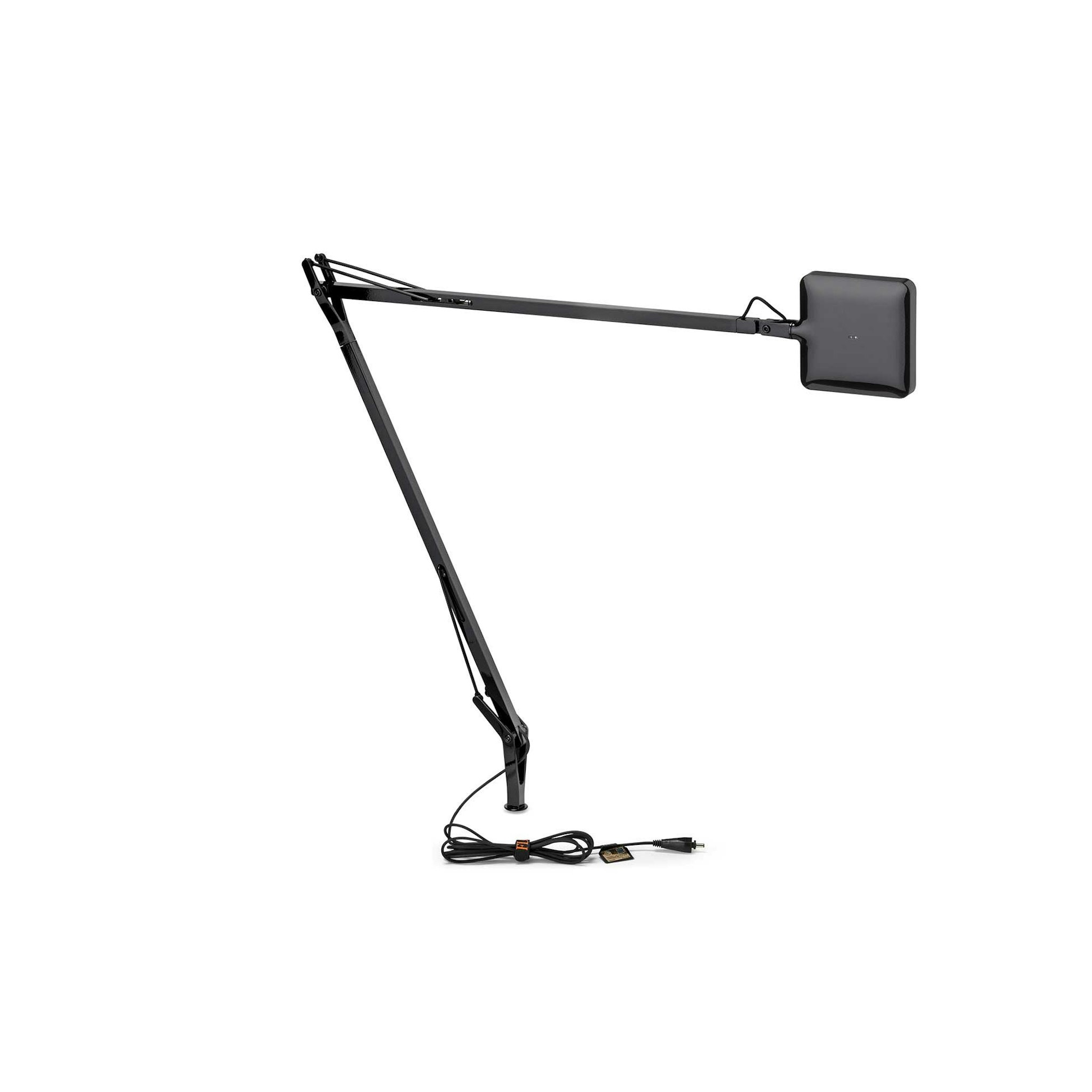

04. Kelvin led gm black body
F3312030
x1
Black plug assembly kit & 24V driverRF6600230
Thumbnail
x1
Kelvin Led Black insert for lamp baseRF18764
Thumbnail
x1
Kelvin led gm black baseF3322030A
x1
Kelvin led gm black bodyF3312030
