KtribeKTribe Suspension 2
Designed by Philippe Starck, 2005

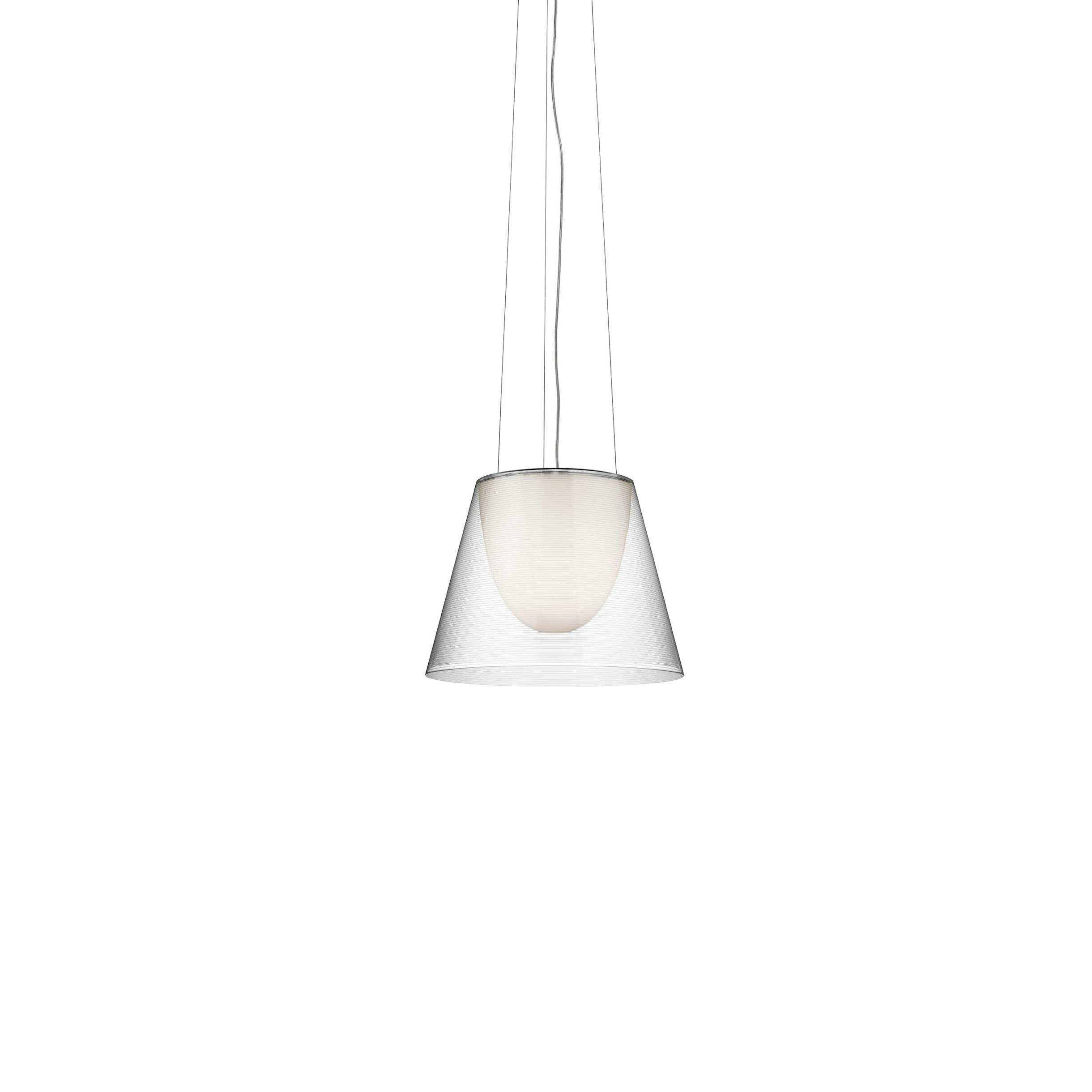

Suspension lamp providing diffused light. PC (polycarbonate) inner diffuser, with opal white finish. Outer diffusers in transparent or fumèe PMMA (polymethylmethacrylate), and silver or bronze on the inner surface, by vacuum aluminum coating. Three stainless steel cables, length 4000 mm for suspension of the diffuser assembly. White ceiling rose.
Halogen - 150W
Technical Drawing
Main specifications
EAN
8059607021422
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGS
Number of lamps
1
Power (W)
150
Schematic light drawing
Photometric
Lighting type
,
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
395
Cord colour
productFields.physical.cordLength
2700
Canopy colour
Canopy length/diameter (mm)
114
Canopy height (mm)
19
Net weight (kg)
2.3
Package height (mm)
420
Package width (mm)
480
Package length (mm)
480
Package volume (m3)
0.1
IP internal
Bulbs
Spare Parts
01. Ktribe Suspension 2/ Suspension 3 ceiling rose assembly
RF6257001
02. 5 meter sil/fep 2x0,75 transparent electrical cable
RF4190200
03. Steel cable packed 3 pieces mt. 3
RF29875
04. Ktribe Suspension 2 Wiring assembly and external diffuser with support
RF6257004
05. Ktribe Suspension 2 calibre internal diffuser
RF19802
