Ktribe
F6307000

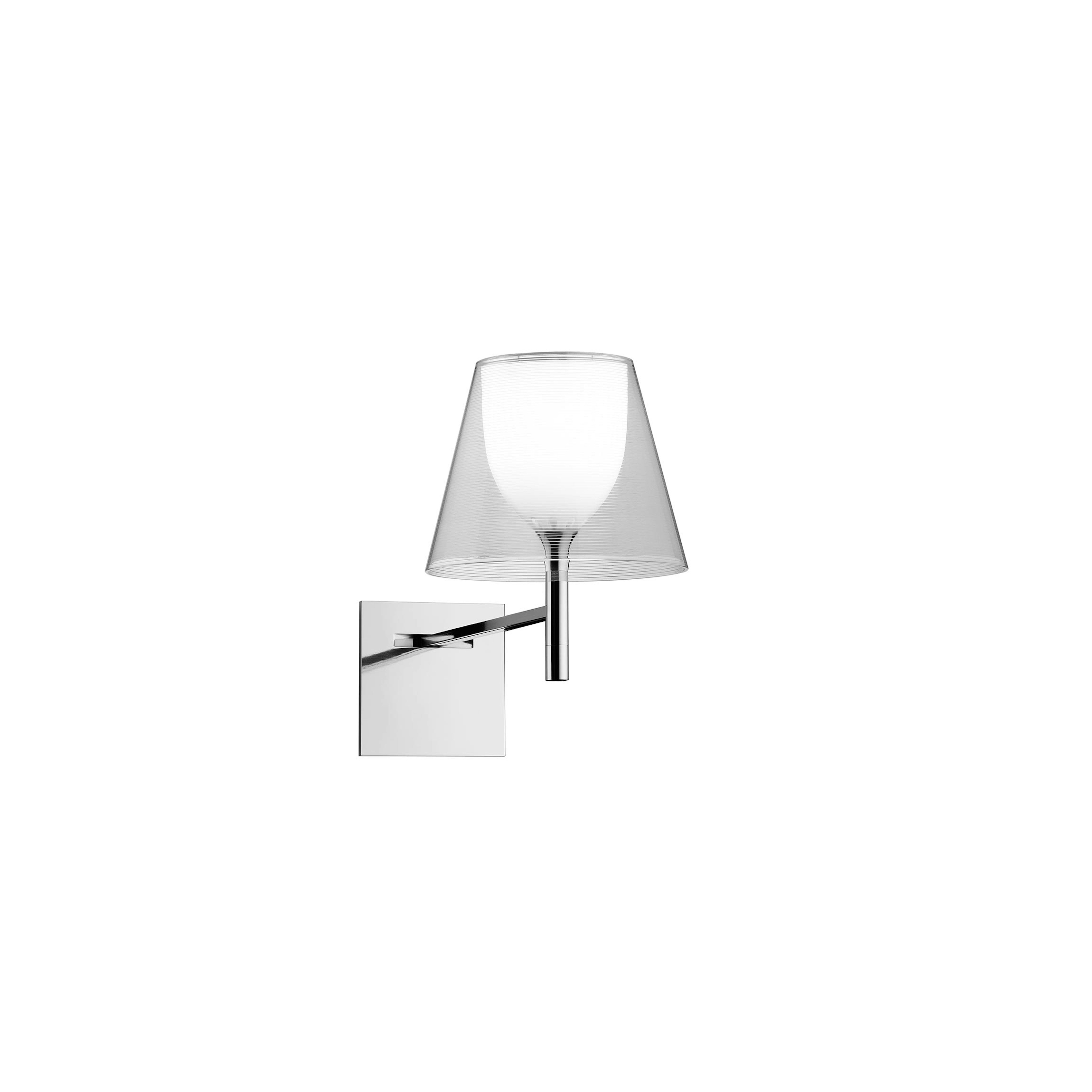

KTribe Wall

Wall mounted fixture providing diffused lighting; a switch located near the diffuser allows for 4-level light adjustment via a "remote" dimmer. Cover rose in die-cast, polished and chrome-plated Zamak alloy. Arm and diffuser support in polished aluminum tube. Injectionmolded PC (polycarbonate) inner diffuser opal color. Outer diffusers in transparent or fumèe PMMA (polymethylmethacrylate) and silver or bronze on the inner surface, by vacuum aluminum coating. Injection-molded PC (polycarbonate) upper ring, completely transparent, or transparent brown for the outer bronze diffuser.

Halogen - 70W

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-Ktribe
Main specifications
EAN
8059607006177
Mounting
Environments
Light source type
Light sources included
No
Lamp category
Lamp holders
Ilcos
HSGS
Number of lamps
1
Power (W)
70
Schematic light drawing
F6307000WKTRIBE_W_70W-HL
Photometric
Lighting type
,
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
240
Net weight (kg)
2.07
Package volume (m3)
0.05
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Spare Parts

F6307000-ktribe-w-flos-boom

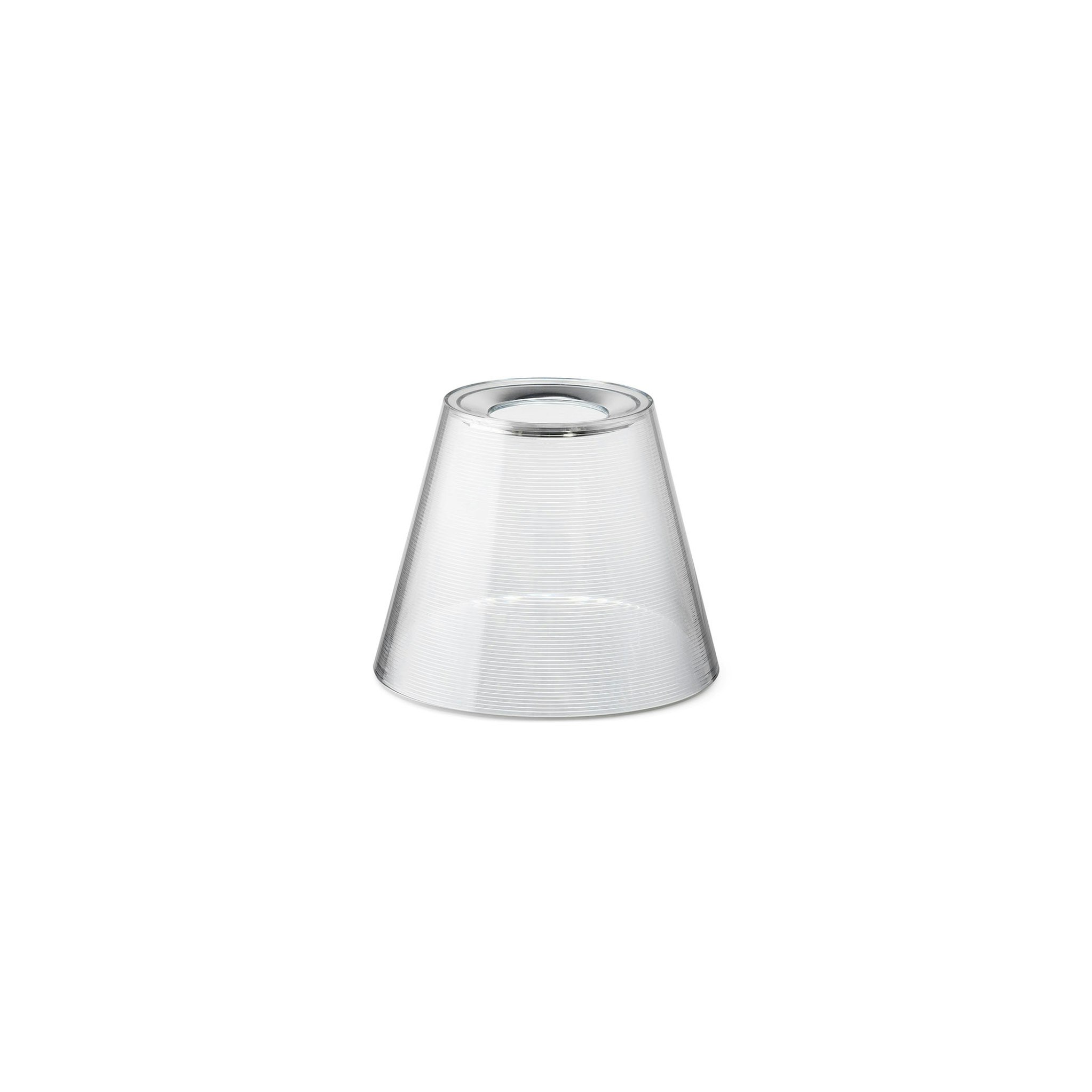

01. transparent diffuser assembly
RF6255007

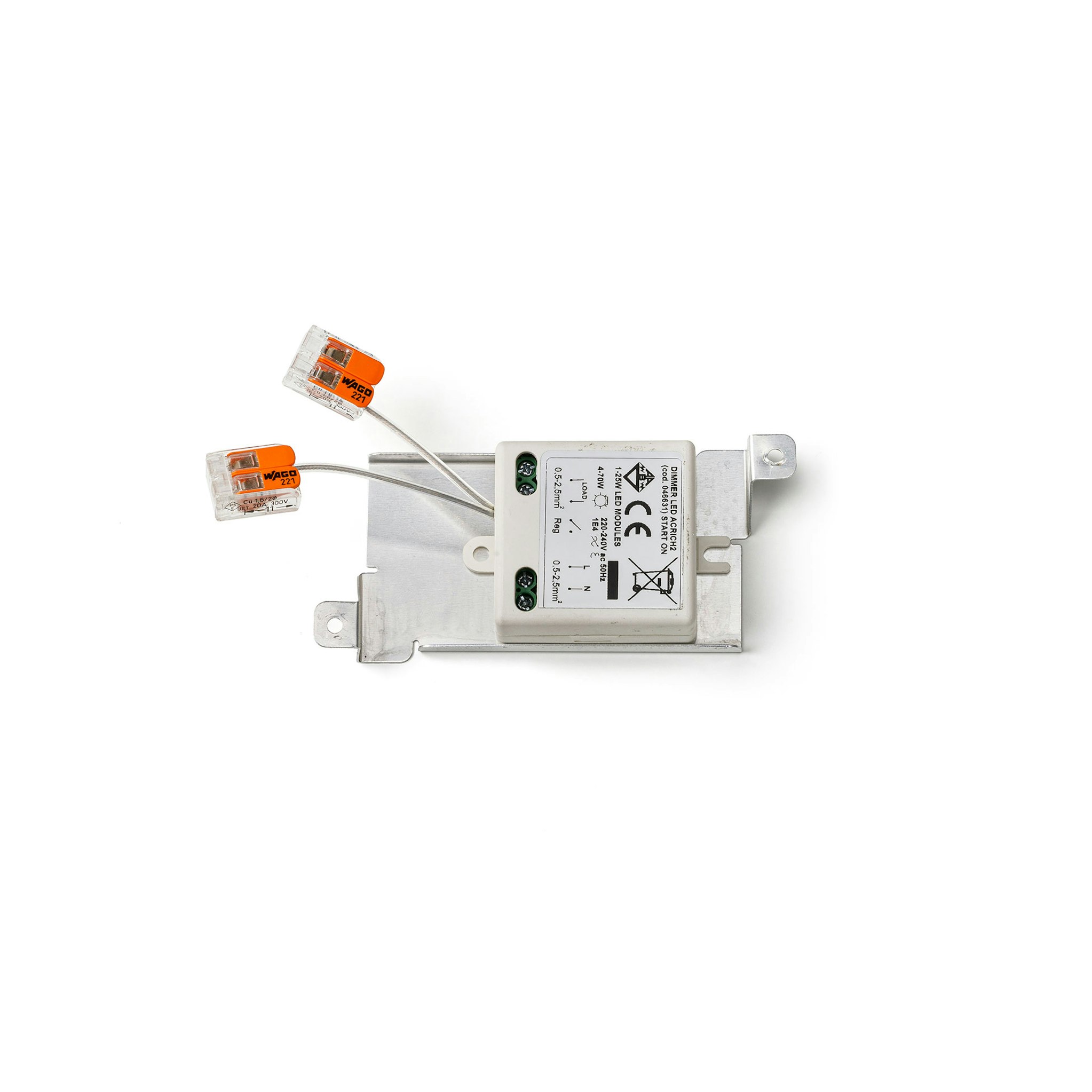

02. Ktribe Wall Dimmer 220-240V White
RF28737
