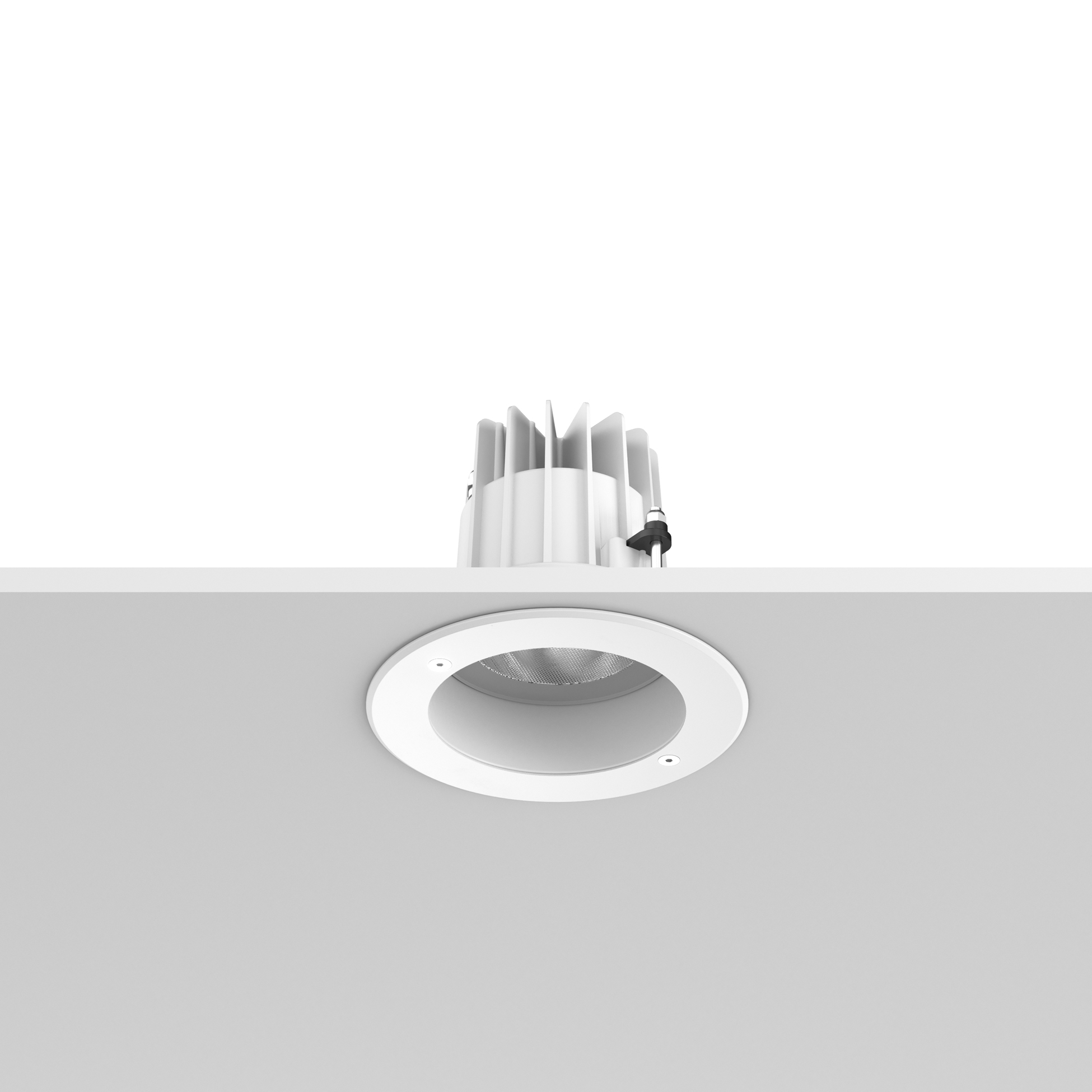

LeilaLeila 2 White Painted Frame Dimmable 1-10V
Designed by FLOS Outdoor, 2013

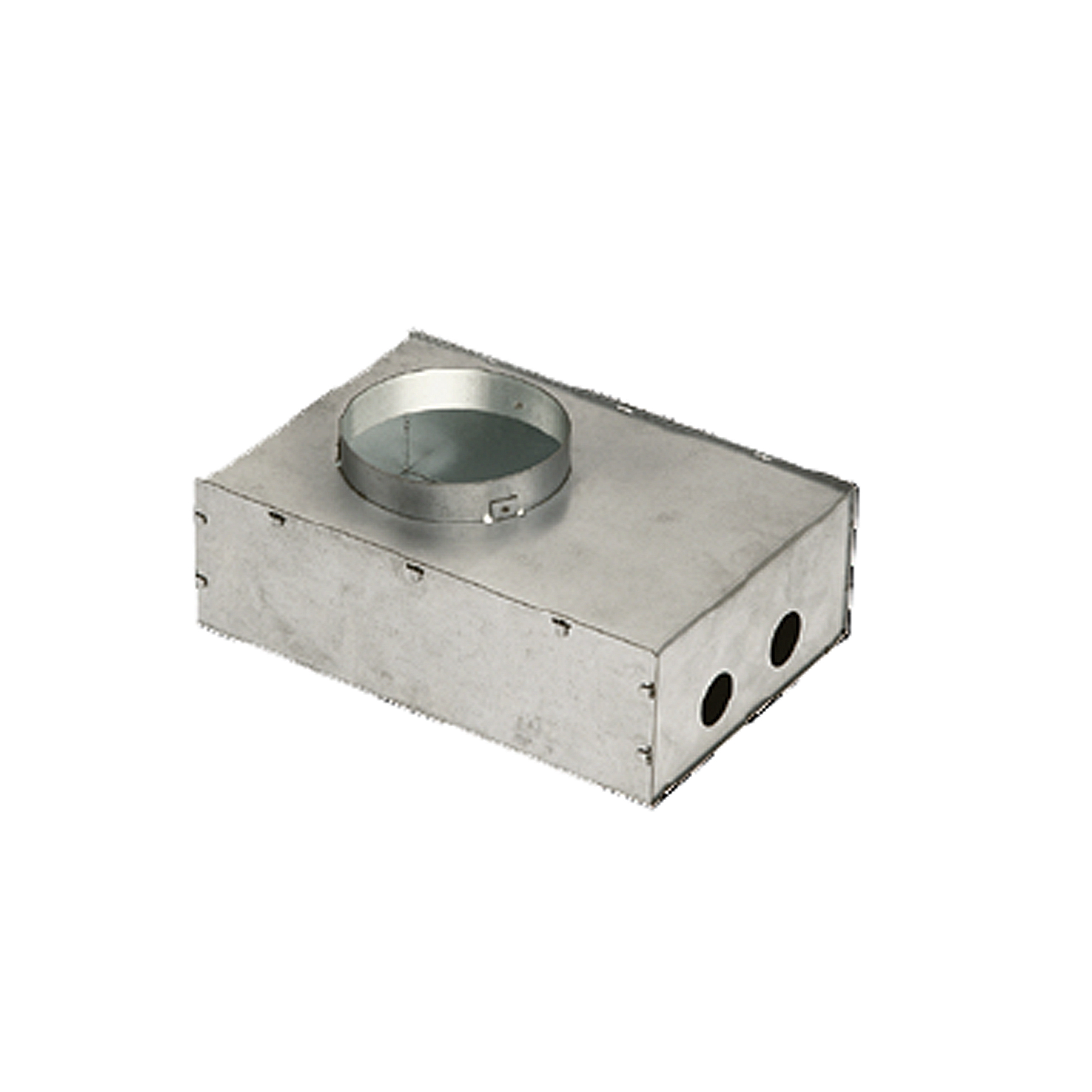

LED source included. Integrated power supply 220-240V ON/OFF and dimmable 1-10V or DALI: remote kit with a 400mm cable section with watertight threaded M12 connector on the luminaire and a 250mm cable section for connection on the mains. This needs to be housed in the junction box for masonry ceilings (it needs to be ordered separately) or set next to the luminaire in case of plasterboard false ceilings. Dimmable version available upon request.
1259lm - 3000K - CRI> 80
Technical Drawing
Main specifications
EAN
8054793675510
Mounting
Light source type
Light sources included
Yes
LED type
Number of lamps
1
System power (W)
14
Source flux (lm)
1722
Lumen Output (lm)
1259
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Dimmable
Power supply type
Dimming interface
Emergency
No
Physical
Colour
Orientation
Net weight (kg)
0.82
Package height (mm)
145
Package width (mm)
195
Package length (mm)
195
Package volume (m3)
0.01
IP internal
IP external
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
