Light ShadowLight Shadow Fixed No Trim 4 Spots Square Optic Medium
Designed by FLOS Architectural, 2022

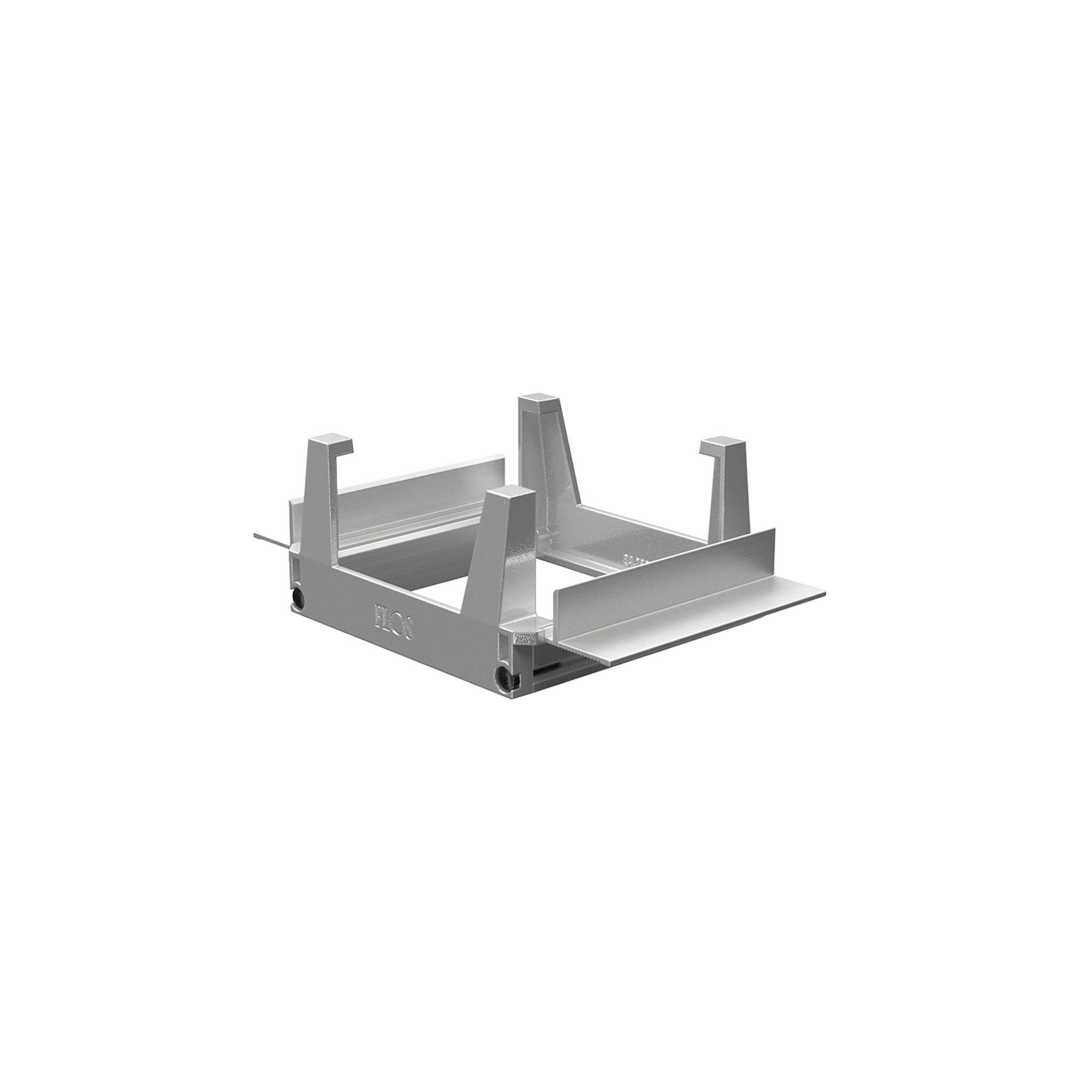

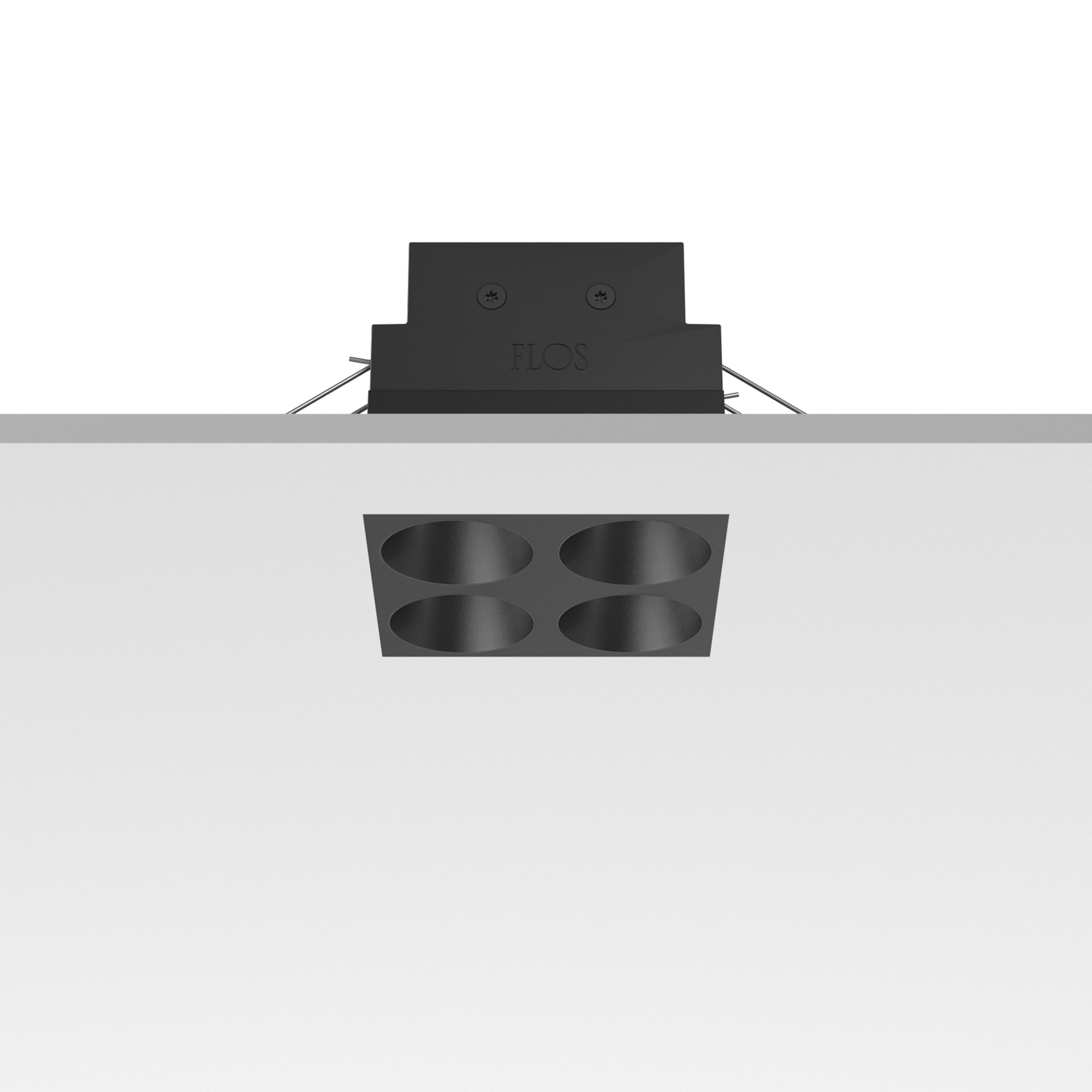

Recessed integrated luminaire with 4 LED lighting spots. Remote power supply included (220-240V). It requires a pre-installation frame, to be ordered separately.
1050lm - 3000K - CRI> 90 - Beam° 24
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
System power (W)
10.8
Source flux (lm)
1281
Lumen Output (lm)
1050
Efficacy (lm/W)
97
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
LED Life / Failure Ratio
L80B10 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
24
Beam angle C90-270 (º)
25
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
LED current (mA)
900
Power supply
Dimmable
Power supply type
Physical
Colour
Trim
No
Orientation
Net weight (kg)
0.34
Package height (mm)
16
Package width (mm)
14
Package length (mm)
21
IP internal
IP external
