Light ShadowLight Shadow Mini Dots - Single Spot Module. Set of 1 Spot Optic Flood
Designed by FLOS Architectural, 2025

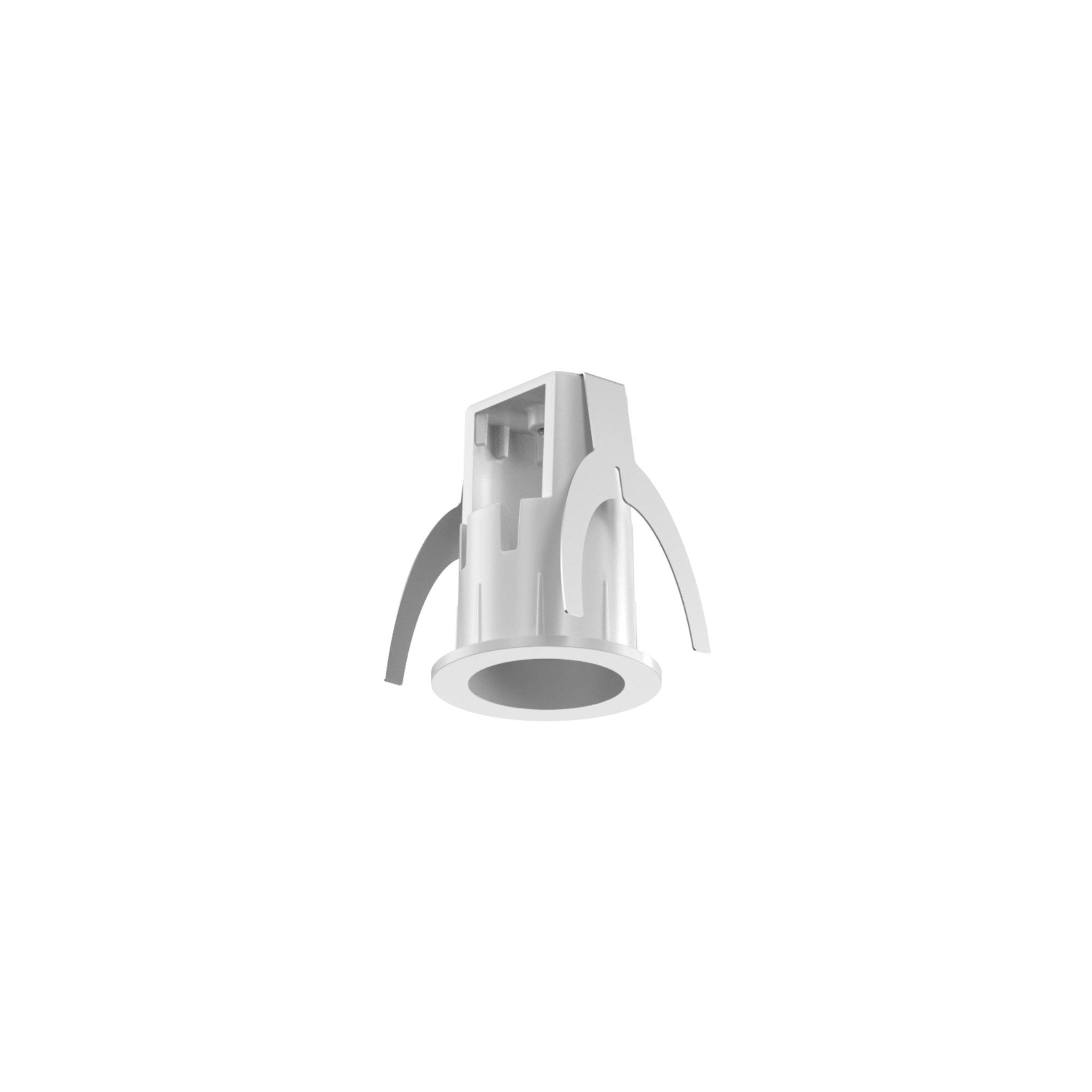

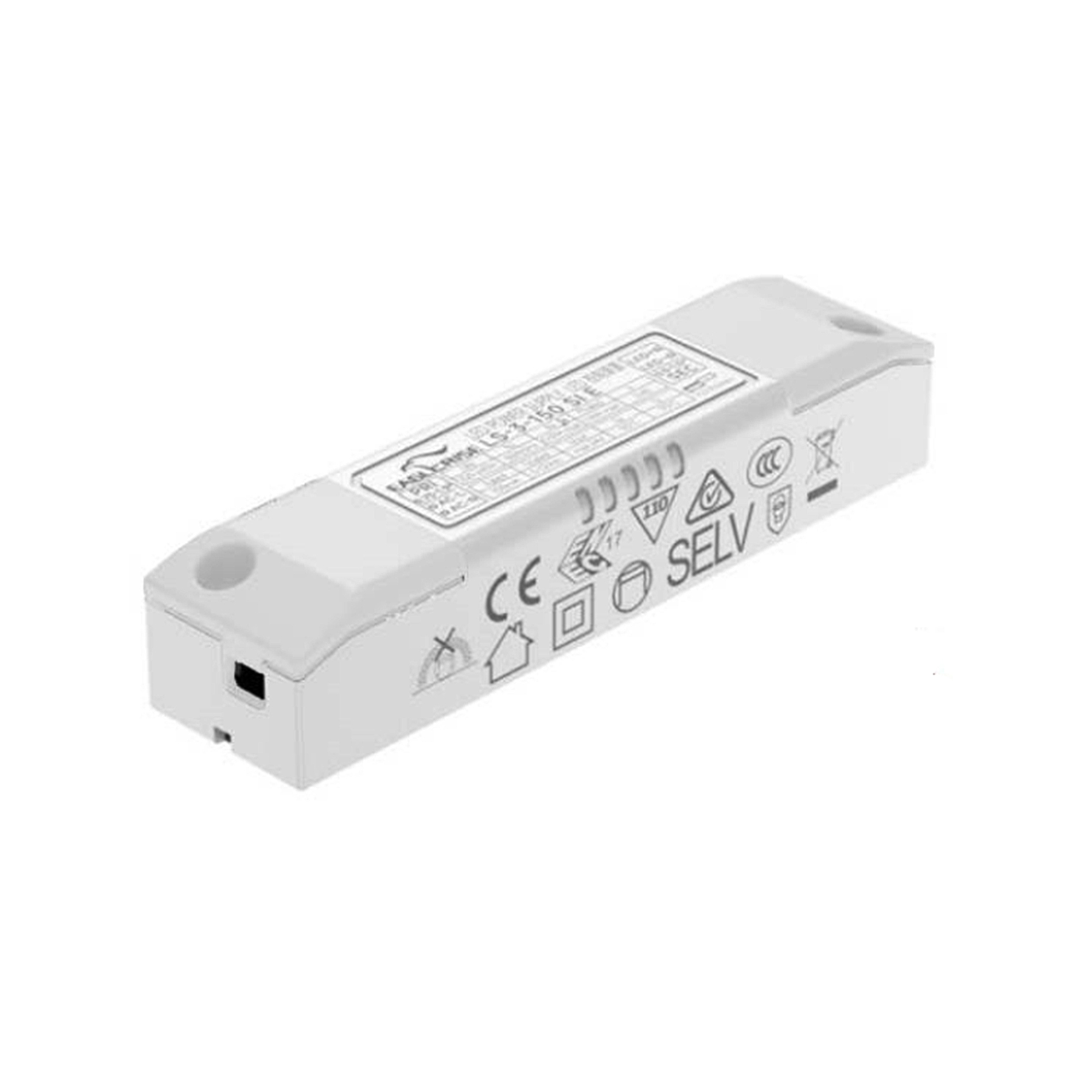

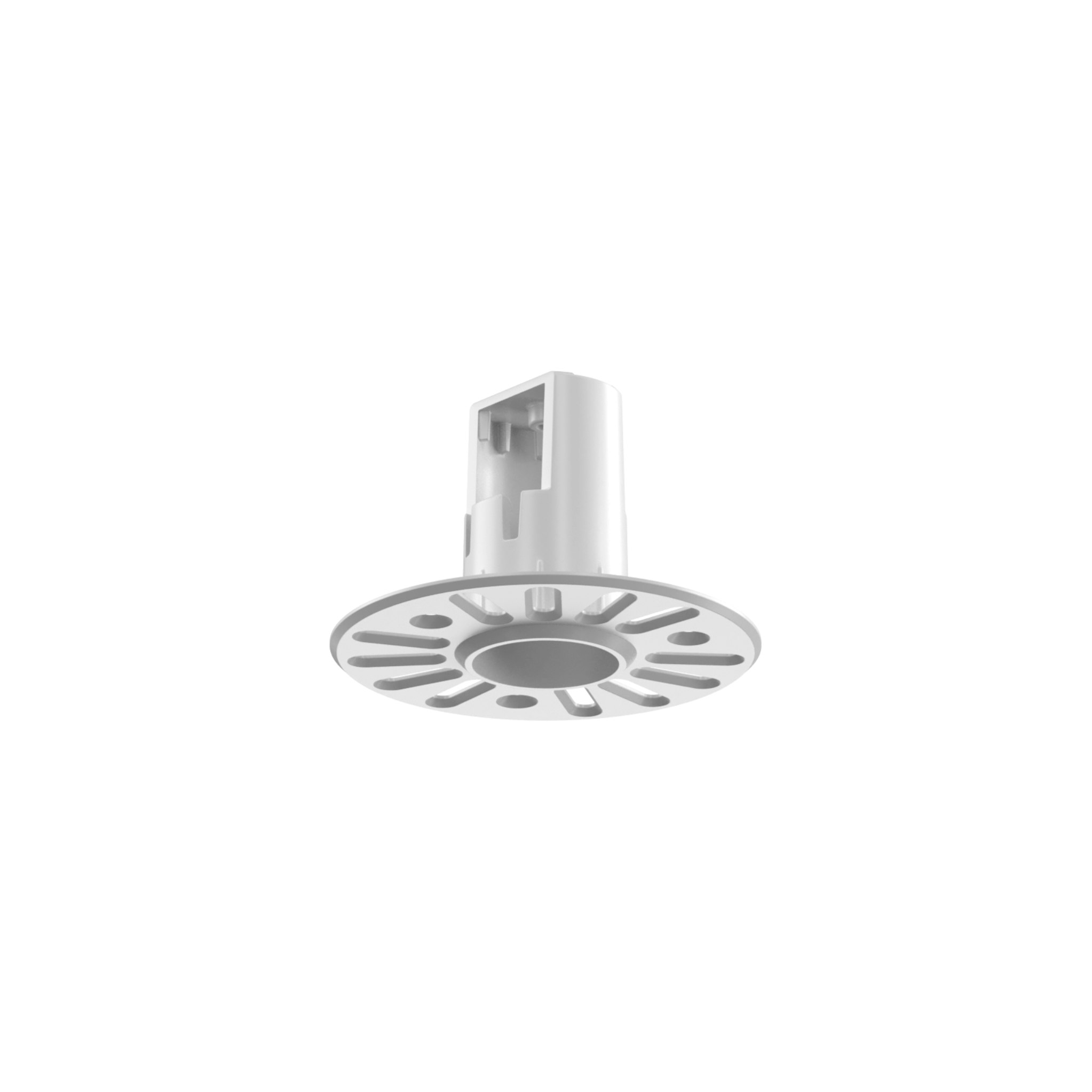

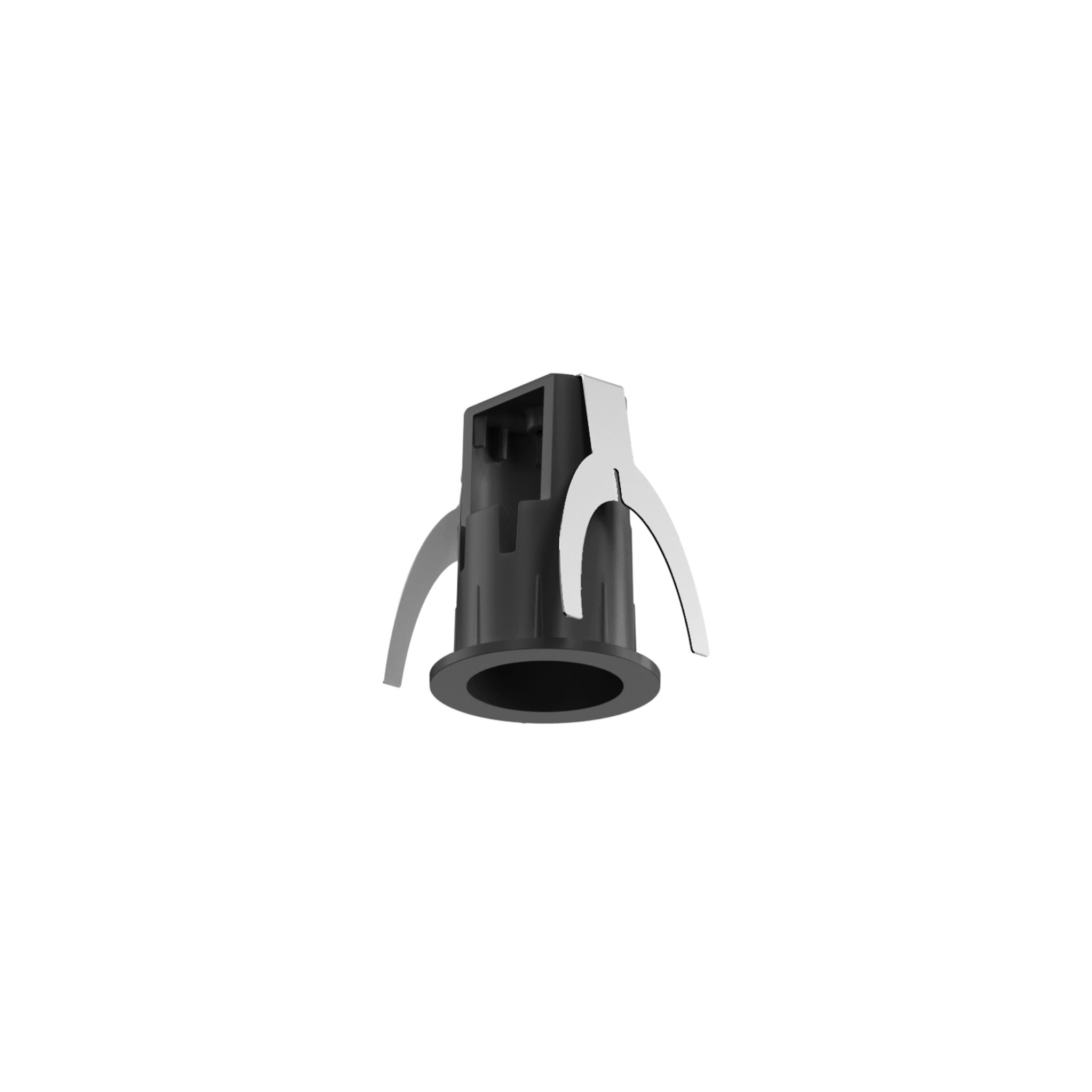

LED lighting luminaire to be insertedin the recessed frames (Trim/NoTrim). It requires a pre-installationframe, to be ordered separately.Installation through a bayonetsystem with interchangeable spots.Available in one-light versions andgroups of two and four lights. Drivernot included.
LED - Power LED - 1.5W - 140lm - 3000K - CRI> 90 - Beam° 37
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
1.5
System power (W)
2.3
Source flux (lm)
155
Lumen Output (lm)
140
Efficacy (lm/W)
60
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
Rf fidelity index
91
Rg gamut index
101
LED Life / Failure Ratio
L90B20>52.000h_Tc85ºC
Beam angle C0-180 (º)
37
Beam angle C90-270 (º)
38
Extreme cut off
Yes
UGRL
<10
Electrical
Insulation class
Forward voltage (V)
3
LED current (mA)
500
Power supply
Dimmable
Power supply type
Dimming interface
Batteries inside
No
Physical
Colour
Orientation
Recessed depth (mm)
42
Spot diameter (mm)
20
Length (mm)
20
Canopy width (mm)
0
Canopy height (mm)
0
Net weight (kg)
0.02
Package height (mm)
7
Package width (mm)
6
Package length (mm)
8
IP internal
IP external
