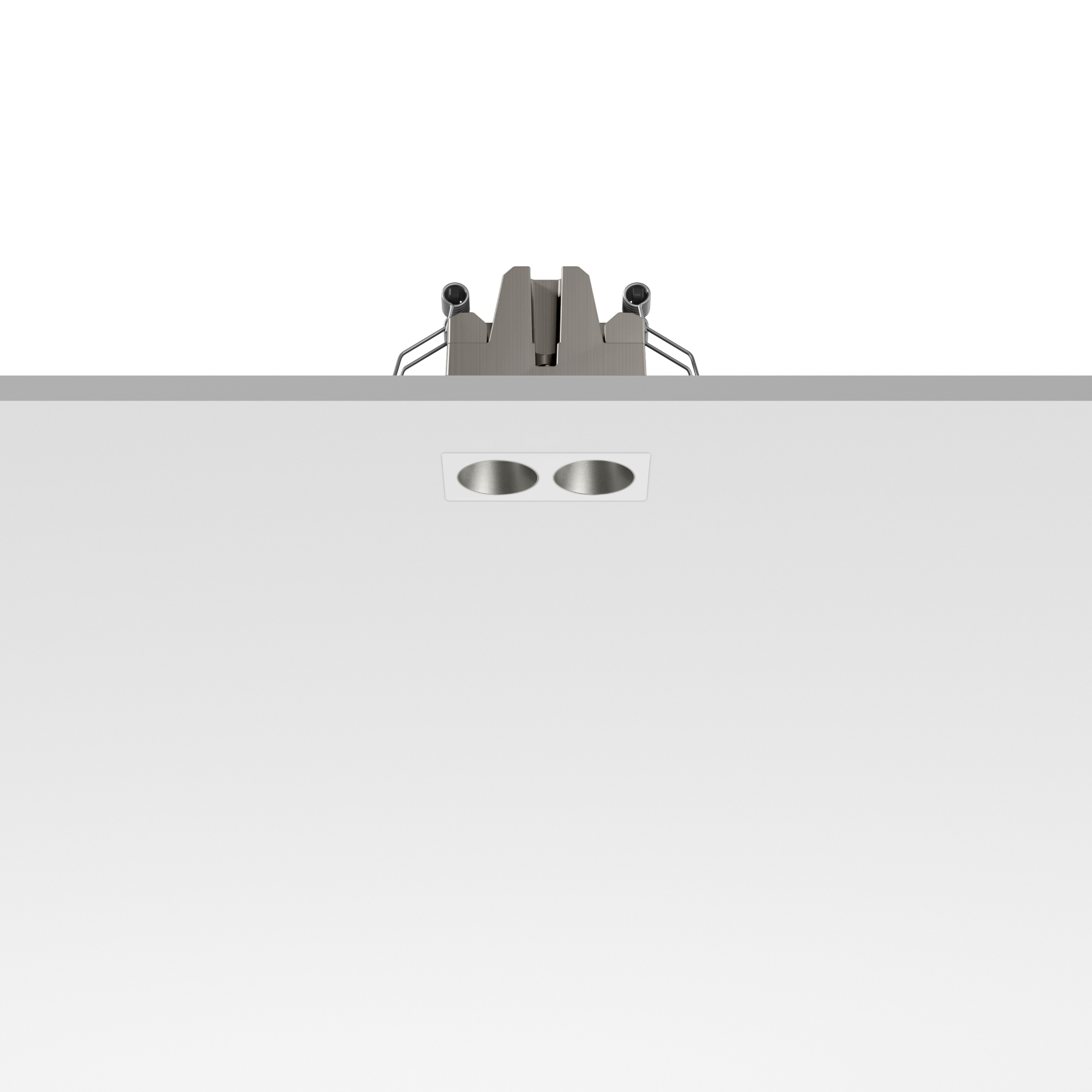

Light ShadowLight Shadow Mini Fixed No Trim 2 Spots Optic Medium
Designed by FLOS Architectural, 2025
Fixed recessed luminaire with 2LED lighting spots. Remote powersupply not included (220-240V).It requires a pre-installation frame,to be ordered separately.
LED - Power LED - 3.1W - 266lm - 2700K - CRI> 90 - Beam° 26
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
3.1
System power (W)
4.6
Source flux (lm)
295
Lumen Output (lm)
266
Efficacy (lm/W)
57
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
Rf fidelity index
93
Rg gamut index
98
LED Life / Failure Ratio
L90B20>52.000h_Tc85ºC
Beam angle C0-180 (º)
26
Beam angle C90-270 (º)
26
Extreme cut off
Yes
UGRL
<10
Electrical
Insulation class
Forward voltage (V)
6
LED current (mA)
500
Power supply
Dimmable
Power supply type
Dimming interface
Batteries inside
No
Physical
Colour
Trim
No
Orientation
Recessed depth (mm)
48
Length (mm)
46
Canopy width (mm)
0
Canopy height (mm)
0
Net weight (kg)
7.0000000000000007E-2
Package height (mm)
6
Package width (mm)
13
Package length (mm)
7
IP internal
IP external
