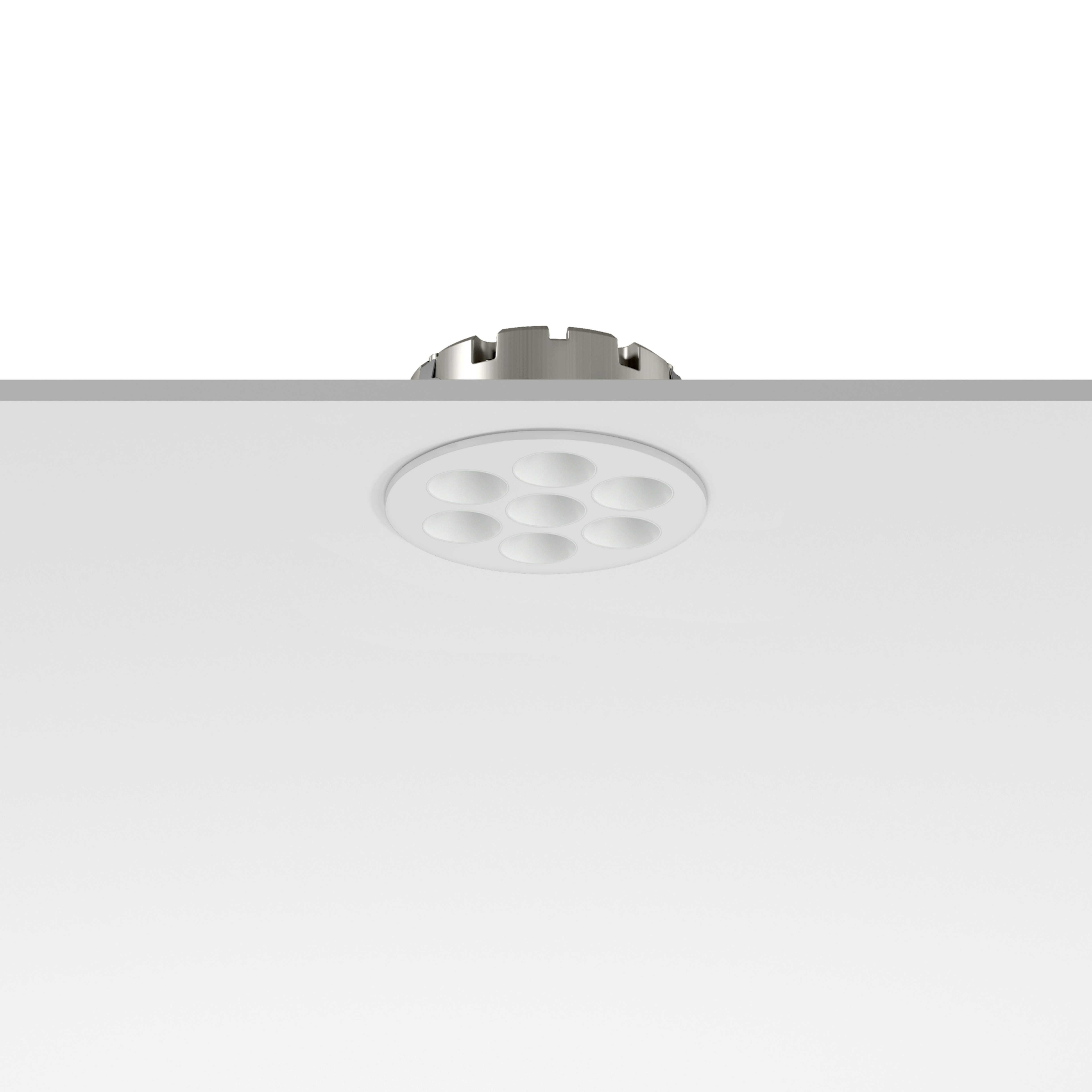

Light ShadowLight Shadow Mini Round Trim Optic Medium
Designed by FLOS Architectural, 2025
Recessed integrated luminaire with 7 LED lighting spots. Remote power supply not included (220-240V). Pre-installation frame not required.
LED - Power LED - 6.1W - 596lm - 2700K - CRI> 90 - Beam° 25
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
6.1
System power (W)
7.9
Source flux (lm)
658
Lumen Output (lm)
596
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
Rf fidelity index
93
Rg gamut index
98
LED Life / Failure Ratio
L90B50>59.000h_Tc85ºC
Beam angle C0-180 (º)
25
Beam angle C90-270 (º)
25
Extreme cut off
Yes
UGRL
<10
Electrical
Insulation class
Forward voltage (V)
21
LED current (mA)
300
Power supply
Dimmable
Power supply type
Dimming interface
Batteries inside
No
Physical
Colour
Trim
Yes
Orientation
Recessed depth (mm)
30
Spot diameter (mm)
73
Length (mm)
73
Canopy width (mm)
0
Canopy height (mm)
0
Net weight (kg)
0.1
Package height (mm)
9
Package width (mm)
14
Package length (mm)
10
IP internal
IP external
