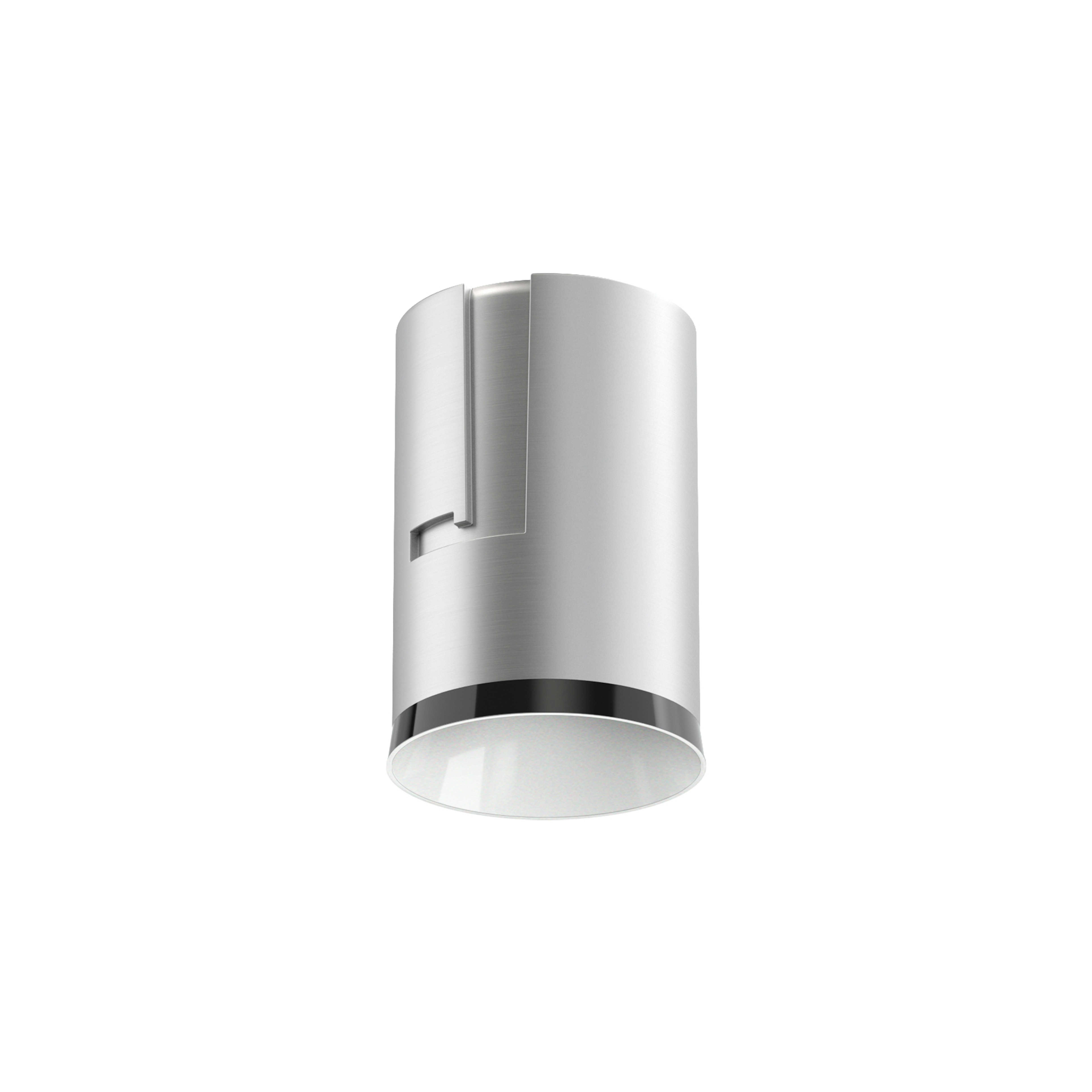

Light ShadowLight Shadow Pro Ø 45 Fixed Optic Flood
Designed by FLOS Architectural, 2022
LED lighting module, with low glare, to be inserted in the recessed frames (not included), installation through a bayonet system with interchangeable spots. Remote driver not included.
8.8W - 678lm - 2700K - CRI> 90 - Beam° 32
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
8.8
System power (W)
11.1
Source flux (lm)
926
Lumen Output (lm)
678
Efficacy (lm/W)
61
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
2
Rf fidelity index
91
Rg gamut index
100
LED Life / Failure Ratio
L90B10>33.000h Tc=85°C
Beam angle C0-180 (º)
32
Beam angle C90-270 (º)
32
UGRL
<10
Electrical
Insulation class
Forward voltage (V)
12
LED current (mA)
700
Power supply
Dimmable
Power supply type
, , , ,
Precabled
No
Physical
Colour
Orientation
Recessed depth (mm)
102
Bezel diameter (mm)
49
Spot diameter (mm)
49
Length (mm)
49
Net weight (kg)
0.12
Package height (mm)
90
Package width (mm)
140
Package length (mm)
105
IP internal
IP external
Notes
Please consult the dimensions of the unit: when it does not fit through the recessing hole, an accessible remote location for the unit is required.
