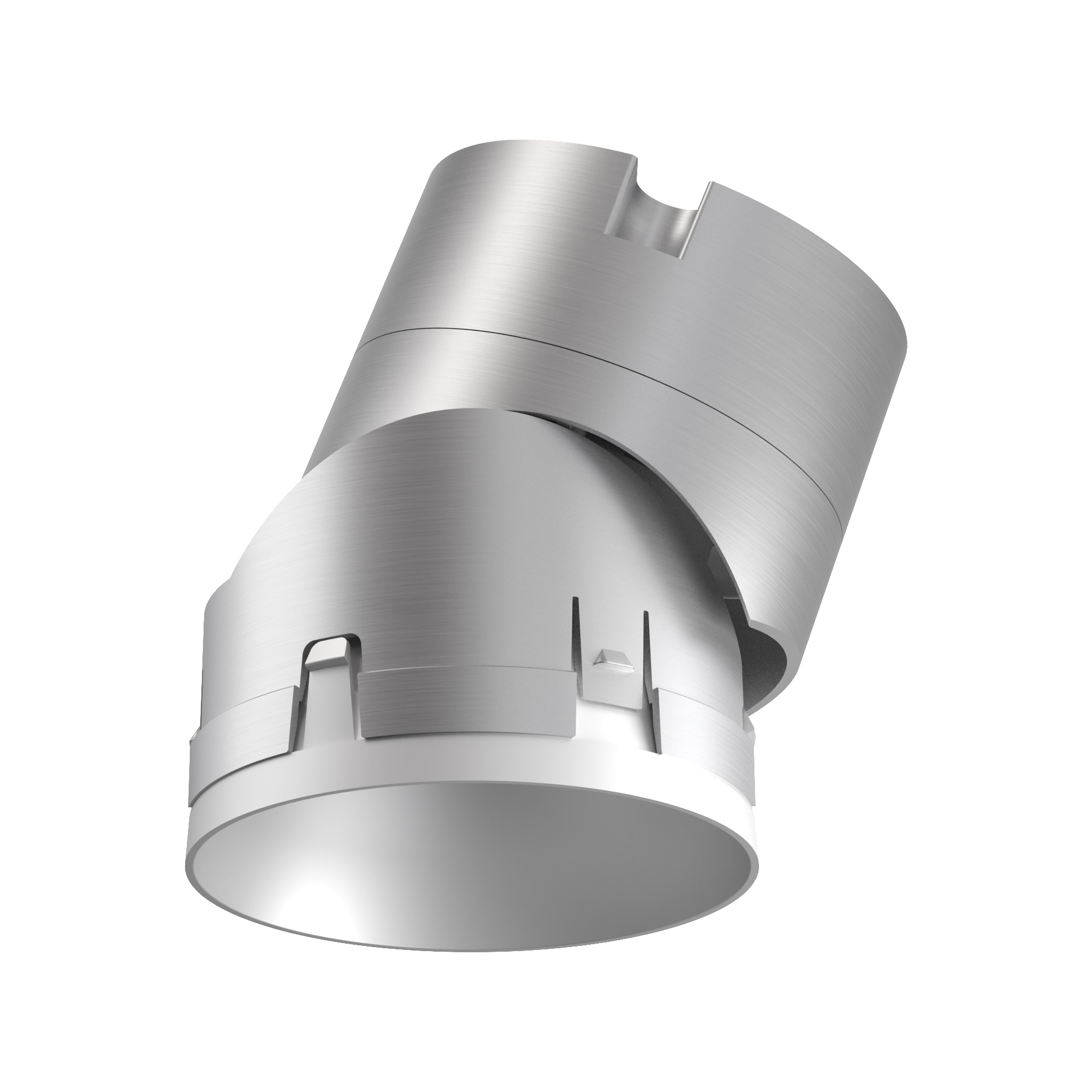

Light ShadowLight Shadow Pro Ø 90 Adjustable Optic Flood
Designed by FLOS Architectural, 2020
LED lighting module, with low glare, to be inserted in the recessed frames (not included), installation through a bayonet system with interchangeable spots. Remote driver not included.
18W - 1593lm - 4000K - CRI> 90 - Beam° 33
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
18
Source flux (lm)
1877
Lumen Output (lm)
1593
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
2
LED Life / Failure Ratio
L70B40 >50.000h (Tc=85ºC)
Beam angle C0-180 (º)
33
Beam angle C90-270 (º)
33
UGRL
<10
Electrical
Insulation class
Forward voltage (V)
35.9
LED current (mA)
500
Power supply
Dimmable
Power supply type
, , , , , ,
Physical
Colour
Orientation
Recessed depth (mm)
149
Spot diameter (mm)
90
Net weight (kg)
0.54
IP internal
IP external
