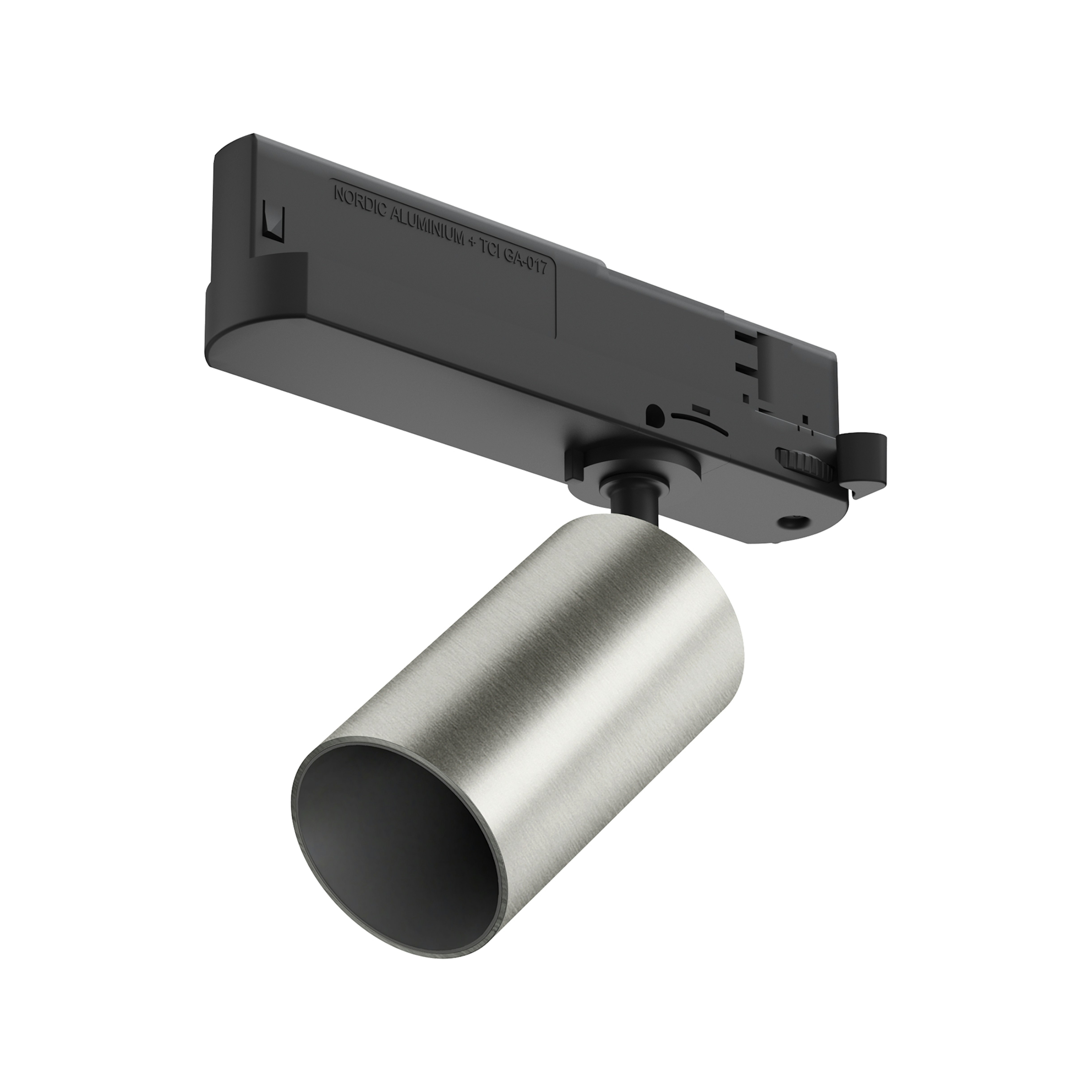

Light ShadowLight Shadow Spot 45 Non Dimmable
Designed by FLOS Architectural, 2022
Projector to be installed on threephase track with LED light source. Built-in 220-240V, 50-60Hz power supply. All finishes come with black track adapter, arm and back of the head. In the “all white” versions the track adapter, arm and back of the head come in white. The display is always offered in high loss technical black anti-glare finish. For other finishes, please consult us.
11.5W - 686lm - 3000K - CRI> 90 - Beam° 15
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
11.5
Source flux (lm)
844
Lumen Output (lm)
686
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Rf fidelity index
92
Rg gamut index
100
LED Life / Failure Ratio
L80B50>47.000h_Tc85ºC
Beam angle C0-180 (º)
15
Beam angle C90-270 (º)
15
UGRL
<10
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
LED current (mA)
250
Power supply
Dimmable
Power supply type
Dimming range (%)
N/A
Physical
Colour
Orientation
Rotation (º)
360
Longitudinal tilting (°)
90
Net weight (kg)
0.3
IP internal
